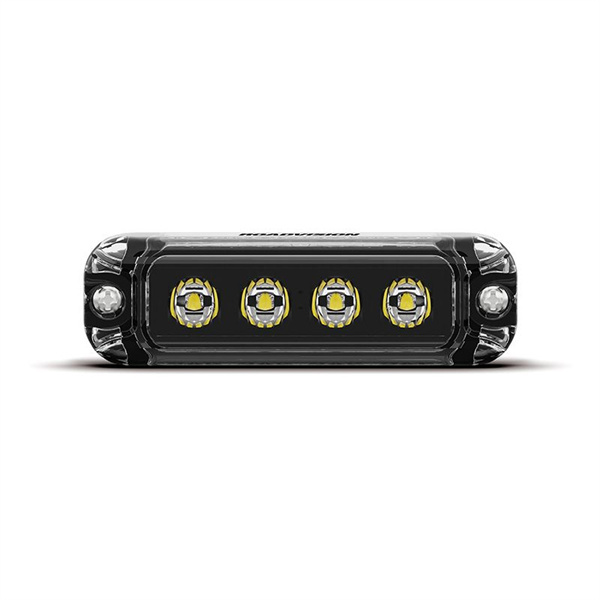

Roadvision LED Strobe Module White 10-30V 12W 18 Flash Pattern 4 LED Synchronizable SAE C1- 5 years Warranty

SKU: SP80RSM0704A
0.0 (0)
0 Sold
AU$53.95 AU$69.99
ROADVISION’s RSM07 Series ultra low-profile LED strobe modules are simply perfect for discrete applications! Roadvision’s super bright LED strobe modules deliver the durability of maintenance free LED technology and greater visibility. Featuring 18 selectable flash patterns, multi-unit synchronisation (simultaneous or alternating flash) and virtually unbreakable polycarbonate lens. Roadvision’s RSM07 Series modules simply take safety lighting to another level, ideal for all your automotive, industrial and agricultural requirements.
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity:
  • Roadvision LED Strobe Module White 10-30V 12W 18 Flash Pattern 4 LED Synchronizable SAE C1- 5 years Warranty
  • Roadvision LED Strobe Module White 10-30V 12W 18 Flash Pattern 4 LED Synchronizable SAE C1- 5 years Warranty
  • Roadvision LED Strobe Module White 10-30V 12W 18 Flash Pattern 4 LED Synchronizable SAE C1- 5 years Warranty
  • Roadvision LED Strobe Module White 10-30V 12W 18 Flash Pattern 4 LED Synchronizable SAE C1- 5 years Warranty
  • Roadvision LED Strobe Module White 10-30V 12W 18 Flash Pattern 4 LED Synchronizable SAE C1- 5 years Warranty
  • Roadvision LED Strobe Module White 10-30V 12W 18 Flash Pattern 4 LED Synchronizable SAE C1- 5 years Warranty
1/1
  • Roadvision LED Strobe Module White 10-30V 12W 18 Flash Pattern 4 LED Synchronizable SAE C1- 5 years Warranty
  • Roadvision LED Strobe Module White 10-30V 12W 18 Flash Pattern 4 LED Synchronizable SAE C1- 5 years Warranty
  • Roadvision LED Strobe Module White 10-30V 12W 18 Flash Pattern 4 LED Synchronizable SAE C1- 5 years Warranty
  • Description
Roadvision LED Strobe Module White 10-30V 12W 18 Flash Pattern 4 LED Synchronizable SAE C1- 5 years Warranty

RANGE FEATURES
  • Multi-volt 10-30V input & low current draw
  • Built-in 18 selectable flash patterns
  • Last pattern memory recall
  • 100,000 hour LED life span with solid state technology
  • Maintenance free
  • Multi-unit synchronisation
  • Simultaneous or alternating flashing
  • Weatherproof & vibration resistant
  • Ultra low-profile for discrete applications

FLASH PATTERNS
1.OFF
2.Single
3.Double (Fast)
4.Quadruple (Fast)
5.Double (Slow)
6.Single (Split)
7.Double (Split)
8.Quadruple (Slow Split)
9.Quadruple (Fast Split)
10.Double (Split) Interval
11.Sextuple (Split)
12.Quintuple 4 Cycles Then 100ms 10 Cycles (Split)
13.100ms 14 Cycles Then 200ms 6 Cycles (Split)
14.Sextuple
15.Quadruple (Slow)
16.Quintuple (Slow)
17. LHS Double, RHS Half Bright
18.RHS Double, LHS Half Bright

Specifications:
Part Number RSM0704A
Description LED Strobe Module 10-30V Rectangle Surface Mount 12W Amber
Synchronisation Simultaneous & Alternate
Flash Patterns 18
Input Voltage 10-30 VDC
Watts 12W
Number of LEDs 4 x 3W
Current Draw @ 13.8V 1 Amp
Lens Construction Polycarbonate
Housing Construction Aluminium
Mounting Centres 87mm

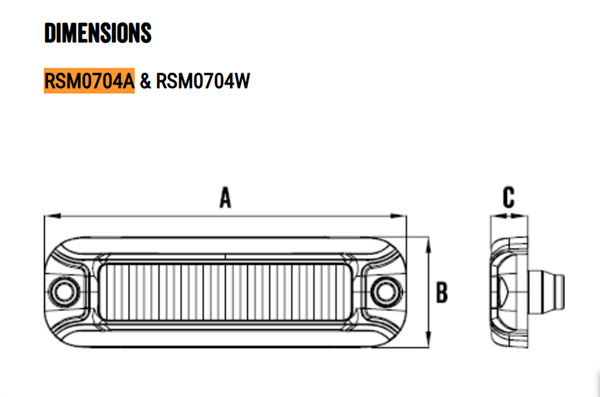

Dimensions AxBxC 98 x 30 x 10mm
Wiring Red - Positive
Black - Negative
Yellow - Flash Select & Sync
White - Alternate Flash Red - Positive
Black - Negative
Yellow - Flash Select & Sync
White - Alternate Flash
