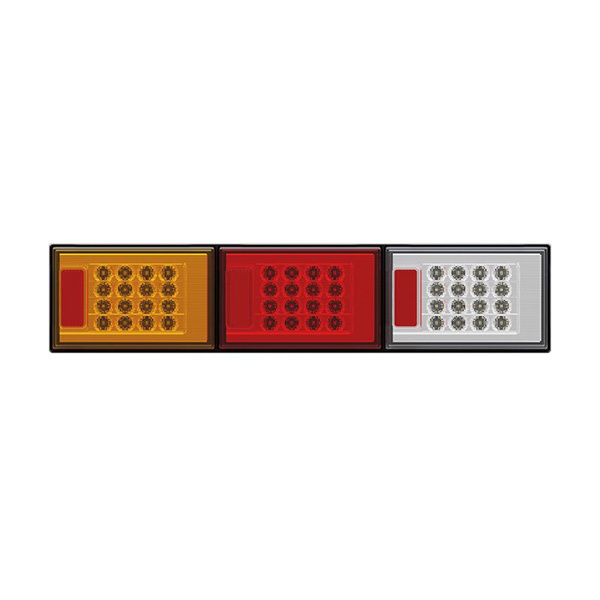

Roadvision LED Rear Combination Lamp 10-30V Stop/Tail/Ind/Rev Jumbo Triple Surface Mount 604x132mm - 5 years warranty

SKU: SP70BR602ARW
5.0 (3)
59 Sold
AU$169.95 AU$239.00
ROADVISION’s BR602 Series LED jumbo combination lamps are the ultimate heavy-duty lighting solution for trucks and trailers, now with a refreshed design and enhanced styling. Featuring Stop, Tail, Indicator, Reflector, and optional Reverse functions all in one robust unit, the BR602 Series delivers maximum functionality without compromise. Engineered with maintenance-free LED technology, these lamps offer superior visibility and safety, while consuming only a fraction of the power of traditional incandescent lights. Built tough for demanding environments, the BR602 features unbreakable polycarbonate lenses and a rugged, high-impact ABS housing that is fully sealed against dust and water ingress. Rated to a 100,000-hour LED lifespan, the BR602 Series is a true fit-and-forget solution, ideal for those who demand reliability, performance, and durability in every kilometre.
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity:
  • Roadvision LED Rear Combination Lamp 10-30V Stop/Tail/Ind/Rev Jumbo Triple Surface Mount 604x132mm - 5 years warranty
  • Roadvision LED Rear Combination Lamp 10-30V Stop/Tail/Ind/Rev Jumbo Triple Surface Mount 604x132mm - 5 years warranty
  • Roadvision LED Rear Combination Lamp 10-30V Stop/Tail/Ind/Rev Jumbo Triple Surface Mount 604x132mm - 5 years warranty
  • Roadvision LED Rear Combination Lamp 10-30V Stop/Tail/Ind/Rev Jumbo Triple Surface Mount 604x132mm - 5 years warranty
  • Roadvision LED Rear Combination Lamp 10-30V Stop/Tail/Ind/Rev Jumbo Triple Surface Mount 604x132mm - 5 years warranty
  • Roadvision LED Rear Combination Lamp 10-30V Stop/Tail/Ind/Rev Jumbo Triple Surface Mount 604x132mm - 5 years warranty
1/1
  • Roadvision LED Rear Combination Lamp 10-30V Stop/Tail/Ind/Rev Jumbo Triple Surface Mount 604x132mm - 5 years warranty
  • Roadvision LED Rear Combination Lamp 10-30V Stop/Tail/Ind/Rev Jumbo Triple Surface Mount 604x132mm - 5 years warranty
  • Roadvision LED Rear Combination Lamp 10-30V Stop/Tail/Ind/Rev Jumbo Triple Surface Mount 604x132mm - 5 years warranty
  • Description
Roadvision LED Rear Combination Lamp 10-30V Stop/Tail/Ind/Rev Jumbo Triple Surface Mount 604x132mm - 5 years warranty

FEATURES

Stop/Tail Indicator or Stop/Tail Indicator & Reverse functions
Integrated Retro Reflectors
Multi-volt 10-30V DC input & low current draw
100,000HR rated LED lifespan with solid state technology
Simple surface mount design
ADR approved for all functions
Light weight tough polycarbonate housing & lens
Retro-fits in place of existing jumbo style lamps
Part NO:BR602ARW
Description:
LED Rear Combination Lamp 10-30V Stop/Tail/Ind/Rev Jumbo Triple Surface Mount 604x132x46mm
Input Voltage 10-30 VDC
Number of LEDS :
Indicator - 16 LEDs
 Stop/Tail - 16 LEDs
Reverse - 16 LEDs
Current Draw @ 13.8V Ind - 0.11A
                         Stop - 0.11A
                         Tail - 0.02A
                         Rev - 0.11A @ 13.8V
Lens Construction Polycarbonate
Housing Construction High Impact ABS

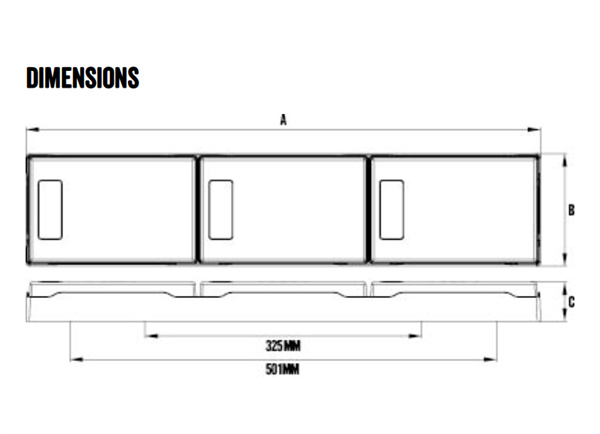

Mounting Hole Centres 501mm & 325mm
Overall Dimensions 604 x 132 x 46mm
Cable Length       300mm Tinned Copper
CTA Approval      CTA-061849
Wiring              Earth - White
                    Stop - Red
                    Tail - Brown
                     Indicator - Yellow
                     Reverse - Black
                     10-30 VDC
roadvision tail lights
