Roadvision LED Rear Combination Lamp 10-30V Stop/Tail x 2/Indicator Triple Surface Mount 460x130mm - 5 years warranty

SKU: SP70BR502ARR
5.0 (4)
89 Sold
AU$148.95 AU$174.95
-15%

ROADVISION’s BR502 Series mini jumbo LED combination lamps deliver powerful performance in a compact, versatile design—ideal for all applications, including 4WDs, small, medium, and large trucks and trailers. Combining Stop, Tail, Indicator, Reflector, and optional Reverse functions into one tough, compact unit, the BR502 Series offers the perfect balance of size, durability, and visibility. Featuring maintenance-free LED technology, these lamps provide brighter output than traditional incandescent lights while drawing significantly less current. Built to endure harsh conditions, they feature unbreakable polycarbonate lenses, a rugged high-impact ABS housing, and are fully sealed against dust and water. With a 100,000-hour LED lifespan, the BR502 Series is a dependable fit-and-forget lighting solution for vehicles of all sizes.

Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity:
  • Roadvision LED Rear Combination Lamp 10-30V Stop/Tail x 2/Indicator Triple Surface Mount 460x130mm - 5 years warranty
  • Roadvision LED Rear Combination Lamp 10-30V Stop/Tail x 2/Indicator Triple Surface Mount 460x130mm - 5 years warranty
  • Roadvision LED Rear Combination Lamp 10-30V Stop/Tail x 2/Indicator Triple Surface Mount 282x95mm - 5 years warranty
  • Roadvision LED Rear Combination Lamp 10-30V Stop/Tail x 2/Indicator Triple Surface Mount 460x130mm - 5 years warranty
  • Roadvision LED Rear Combination Lamp 10-30V Stop/Tail x 2/Indicator Triple Surface Mount 460x130mm - 5 years warranty
  • Roadvision LED Rear Combination Lamp 10-30V Stop/Tail x 2/Indicator Triple Surface Mount 282x95mm - 5 years warranty
1/1
  • Roadvision LED Rear Combination Lamp 10-30V Stop/Tail x 2/Indicator Triple Surface Mount 460x130mm - 5 years warranty
  • Roadvision LED Rear Combination Lamp 10-30V Stop/Tail x 2/Indicator Triple Surface Mount 460x130mm - 5 years warranty
  • Roadvision LED Rear Combination Lamp 10-30V Stop/Tail x 2/Indicator Triple Surface Mount 282x95mm - 5 years warranty
  • Description
Roadvision LED Rear Combination Lamp 10-30V Stop/Tail x 2/Indicator Triple Surface Mount 460x130mm - 5 years warranty
FEATURES

Stop/Tail Indicator or Stop/Tail Indicator & Reverse functions
Integrated Retro Reflectors
Multi-volt 10-30V DC input & low current draw
100,000HR rated LED lifespan with solid state technology
Simple surface mount design
ADR approved for all functions
Light weight tough polycarbonate housing & lens.

Part NO:BR502ARR
Description:
 LED Rear Combination Lamp 10-30V Stop/Tail x 2/Indicator Triple Surface Mount 460x130x33mm
Input Voltage 10-30 VDC
Number of LEDS Indicator - 16 LEDs
Stop/Tail - 32 LEDs
Current Draw @ 13.8V Ind - 0.11A
Stop - 0.23A
Tail - 0.04A @ 13.8V
Lens Construction Polycarbonate
Housing Construction High Impact ABS
Mounting Hole Centres 280mm

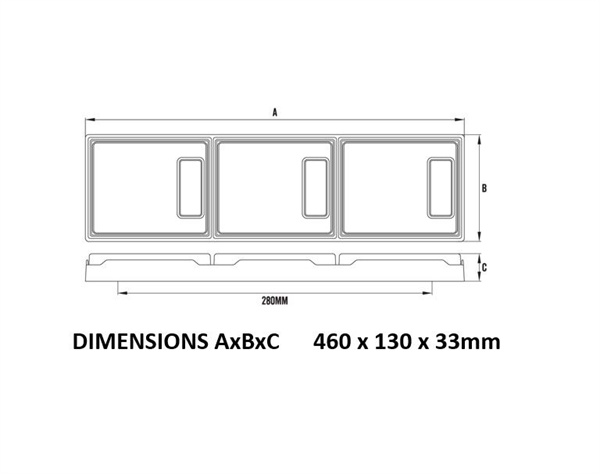

Overall Dimensions 460 x 130 x 33mm
Cable Length 300mm Tinned Copper
CTA Approval ADR Approved for all functions
Wiring Earth - White
Stop - Red
Tail - Brown
Indicator - Yellow
