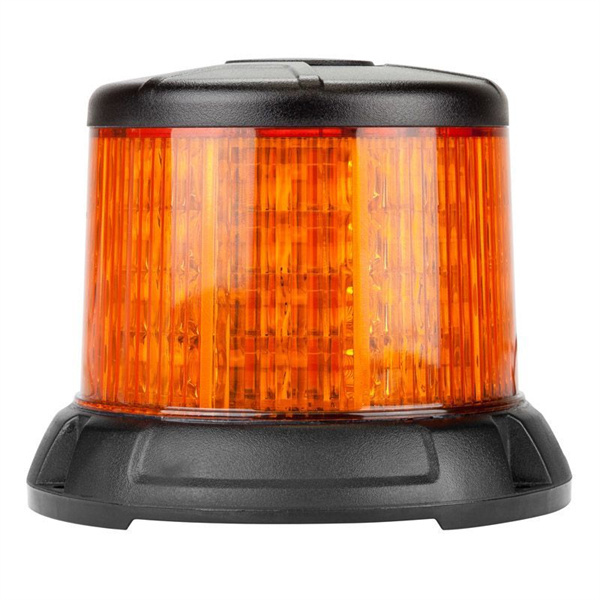

Roadvision LED Beacon Micro Revolver Dual 10-30V Amber Fixed Mount 33W 10 Function SAE Class 1 - 5 Years Warranty

SKU: SP80RB122Y
5.0 (4)
91 Sold
AU$168.95 AU$213.84
Roadvision’s RB122 Series twin stack 360° high intensity beacons are at the forefront of automotive lighting technology….. Featuring state-of-the art LED technology, the REVOLVER Series of Roadvision LED beacons are specifically designed and engineered to not only meet, but exceed Australian and international regulations. With an impact resistant polycarbonate lens & housing, the RB122 Series are built to last in even the toughest conditions. Featuring 64 SMD LED’s and with 10 selectable flash patterns – including single, double, triple, quad & simulated rotating – the RB122 Series are the perfect LED beacon for a wide range of industrial applications.
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity:
  • LED Beacon Micro Revolver Dual 10-30V Amber Fixed Mount 33W 10 Function SAE Class 1 - 5 Years Warranty
  • LED Beacon Micro Revolver Dual 10-30V Amber Fixed Mount 33W 10 Function SAE Class 1 - 5 Years Warranty
  • LED Beacon Micro Revolver Dual 10-30V Amber Fixed Mount 33W 10 Function SAE Class 1 - 5 Years Warranty
  • LED Beacon Micro Revolver Dual 10-30V Amber Fixed Mount 33W 10 Function SAE Class 1 - 5 Years Warranty
1/1
  • LED Beacon Micro Revolver Dual 10-30V Amber Fixed Mount 33W 10 Function SAE Class 1 - 5 Years Warranty
  • LED Beacon Micro Revolver Dual 10-30V Amber Fixed Mount 33W 10 Function SAE Class 1 - 5 Years Warranty
  • Description
Roadvision LED Beacon Micro Revolver Dual 10-30V Amber Fixed Mount 33W 10 Function SAE Class 1 - 5 Years Warranty

RANGE FEATURES
Compact low profile dual stack 10 function 360° high intensity beacons
Single, double, triple, quad & simulated rotating flash patterns
Multi-volt 10-30V input & low current draw
64 SMD LED’s produce 33W
100,000 hour rated LED lifespan
Maintenance free solid state technology
Impact resistant polycarbonate lens & housing
Waterproof IP67 rated and vibration proof
Compact low profile 110 x 89mm body
Available in 3 hole fixed, magnetic or DIN pole mounts
EMC, ECE R10 & SAE class 1 approved

FLASH PATTERNS
Single (ECE/SAE) 480ms
Single 800ms
Double 400ms
Double 800ms
Triple 820ms
Quad 820ms
F&B Half 400ms
F&B Half 800ms
Rotated 800ms
Rotated 400ms

Part Number RB122Y
Description Twin Stack Beacon LED 10-30V 10 Flash Patters Amber Fixed Mount
Function 10 Selectable Flash Patterns
Light Source 64 SMD LED’s
Flash / Rotation Rate 10 Flash Patterns

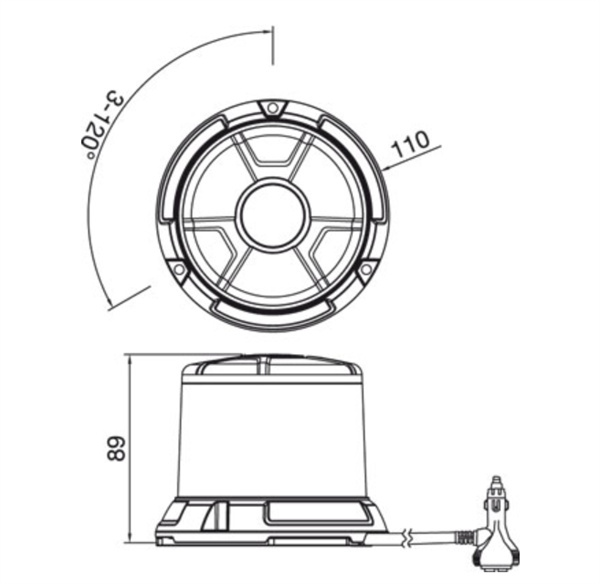

Dimensions 110x89mm
Current Draw Amps 2.3A @ 13.8V
Mounting Type 3 Hole Fixed 103mm Centre to Centre
Wiring: 300mm Sheathed
Approvals EMC, ECE R10 & SAE class 1 approved
