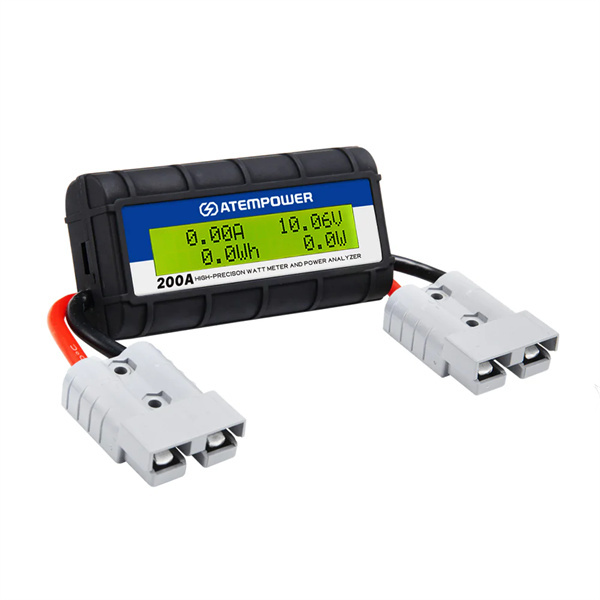

200 AMP Digital Volt Watt Meter Caravan 4x4 Camping Solar 12V Ammeter Voltmeter
Features
Real-Time Display: This watt meter features real-time display of current, voltage & power continuously, with all other 5 values presented sequentially every 2s.
8 Parameters Measurement: This watt meter provides 8 electrical readings: current, voltage, power, charge, energy, current peak, min voltage & power peak.

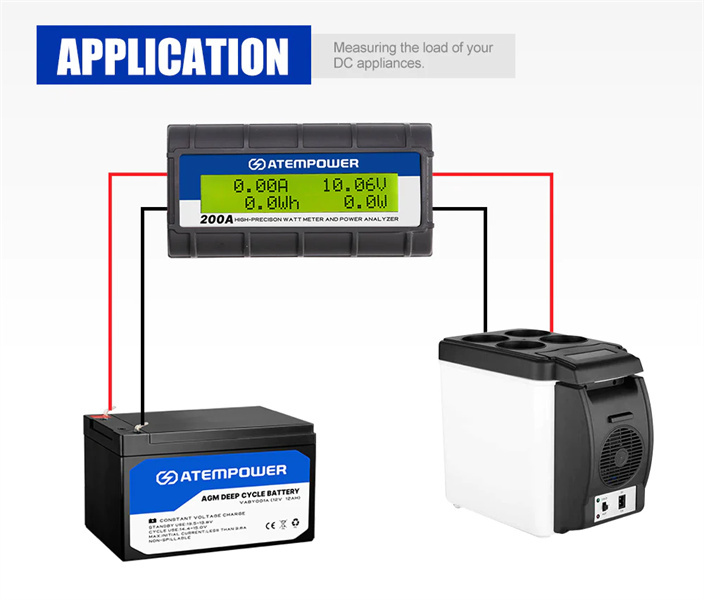

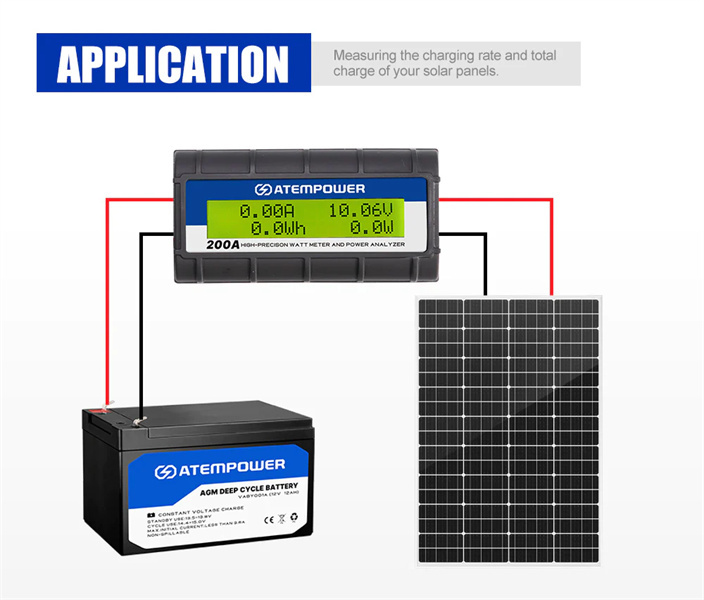

Super Versatility: Ideal for caravan, camping & dual battery systems, it allows you to see what is happening with your solar panel, fridge or charging system.
High-Contrast Backlit LCD Display: The high-contrast display is designed to make it easier to read measurements in full sun or at night.
Plug & Play: This ATEM POWER watt meter comes with pre-installed Anderson plugs for easy in-line connection with your solar panels, batteries or loads.
Easy-to-Use Design: This easy-to-use power analyzer requires no configuration and works automatically.
High Precision: This ATEM POWER watt meter features resolution 0.01A, 0.01V, 0.1W, 0.001Ah and 0.1Wh, which gives you great peace of mind.
Auxiliary Power Option: Using the auxiliary power connector, the meter can be powered to measure the range of 0-9V and achieve more precise measurements.
Durable Construction: Made of tough ABS, this compact watt meter is designed to provide you with years of reliable use.

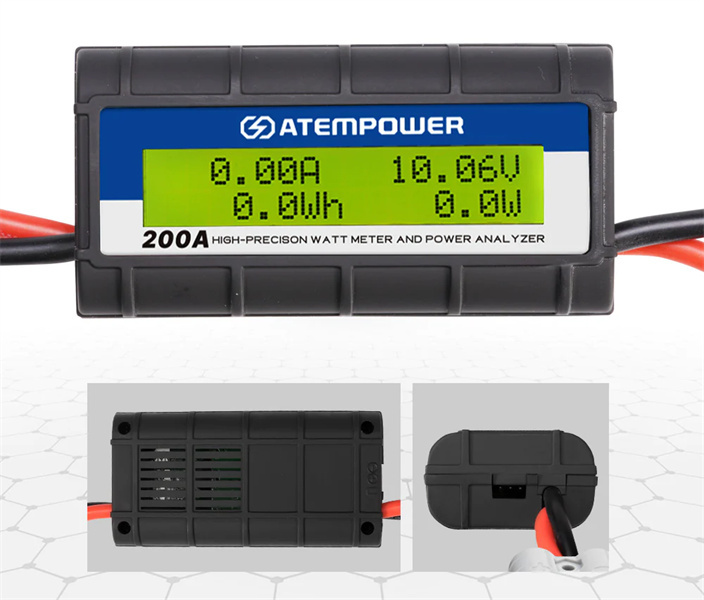

Rapid Heat Dissipation: Dense vents on the bottom are designed to rapidly dissipate heat for smoother operation.
SPECIFICATIONS
Material: ABS
Operation Voltage: 0-60V(0-9V with Auxiliary Power)
Operation Current: 0-200A
Auxiliary Battery Operating Voltage: DC 9-60V
Auxiliary Battery Operating Current: 0.2-0.5A
Operating Temperate: 0℃(32℉)-70℃(158℉)
LCD Display Screen: 16 Character x 2 Row STN LCD
Measurement Update Period: 0.4s
Data Queue Sequence Time: 2s
Wire Size: 12AWG

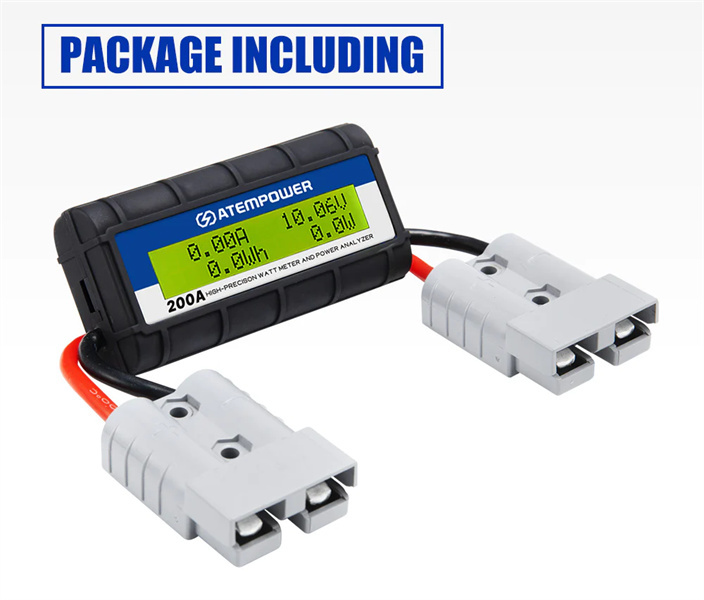

Package Includes
1 x LCD Watt Meter with Anderson Style Solar Plug
1 x User Manual
12 months Warranty
