Approved output socket
AS/NZ approved 240V sockets. Inverter designed to Australian standard AS4763

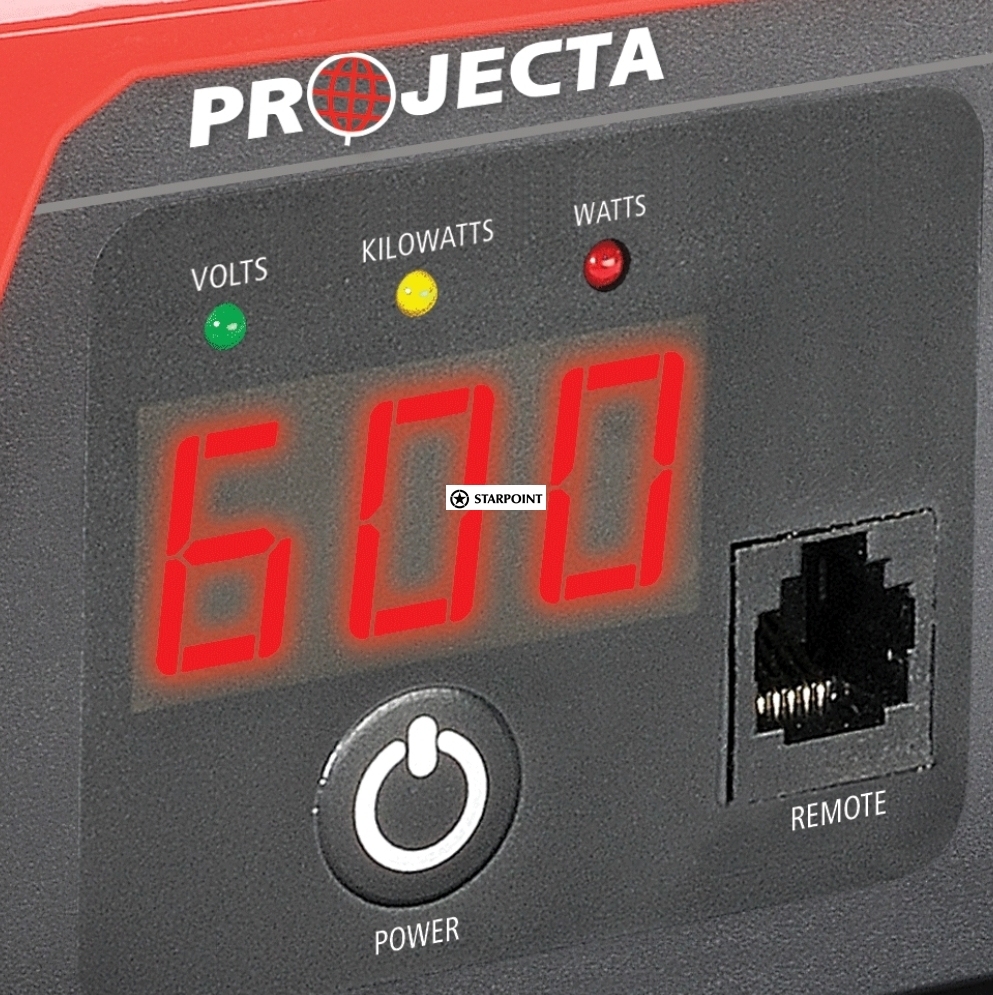

Digital display
LED display provides information on battery voltage, power usage and load capacity

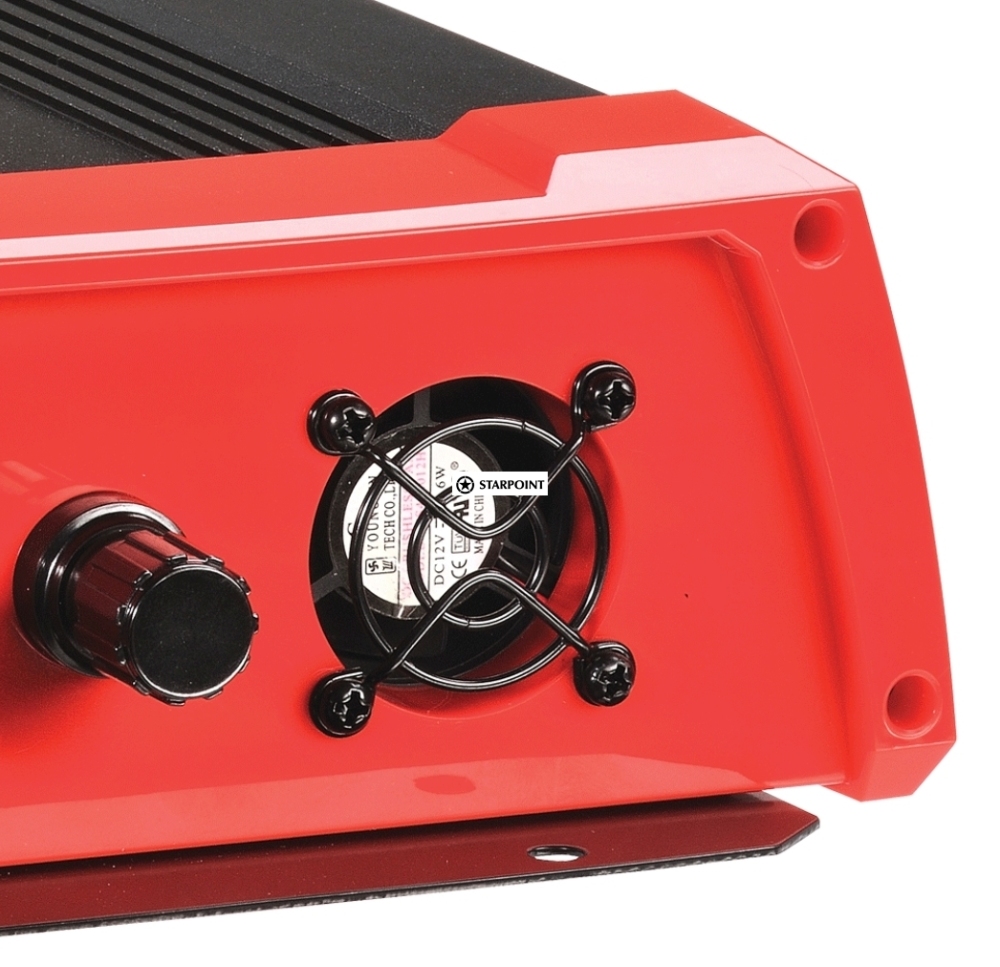

Thermostatically controlled cooling fan
Cools inverter to allow it to work harder for longer

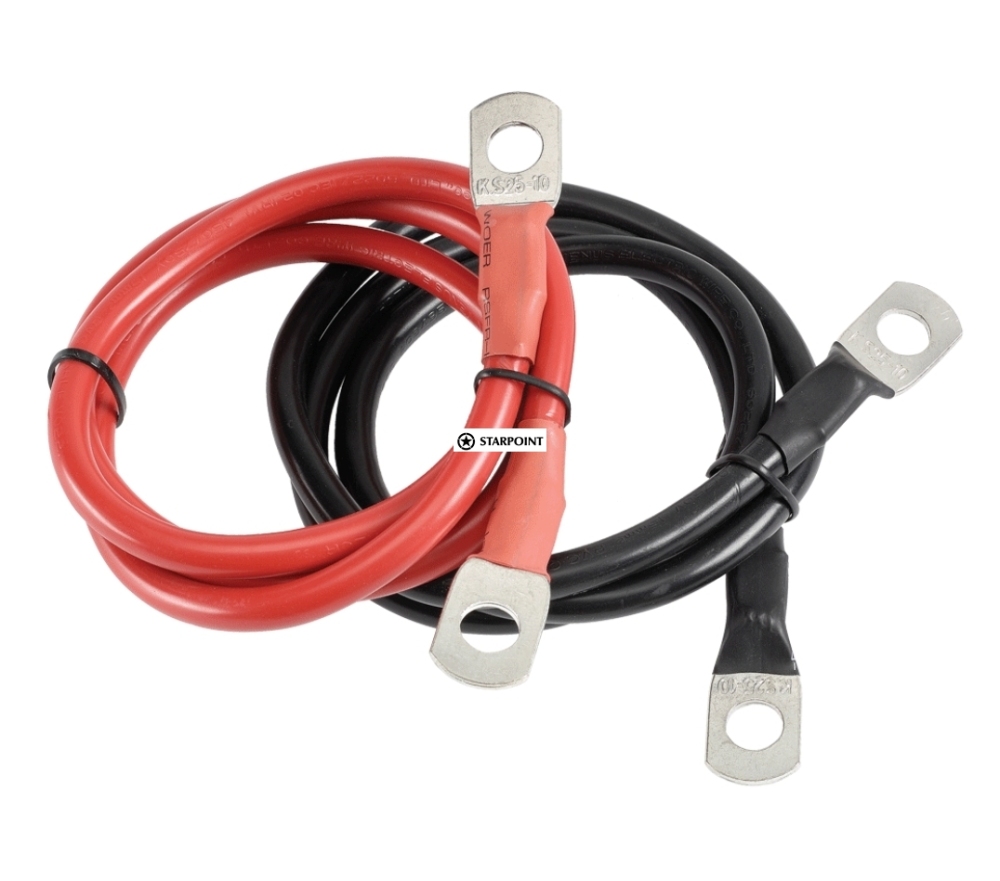

Wiring kit
Battery lugs with 1050mm 21.2mm2 battery cable

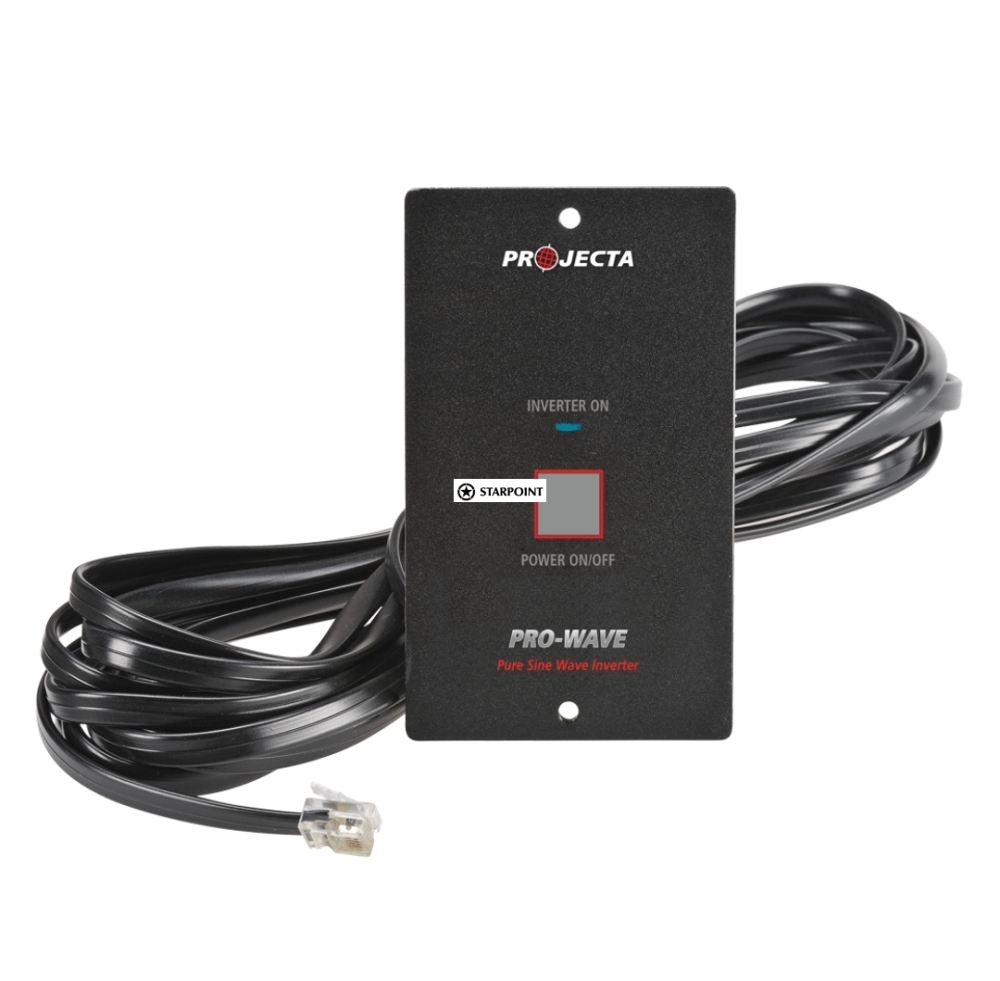

Optional remote control
Optional remote control enabling the inverter to be stowed out of sight, keeping the cabin area uncluttered
SPECIFICATIONS | |||
---|---|---|---|
PART NO |
PW1800 |
||
INPUT |
12V DC, 180A Max |
||
NO LOAD CURRENT DRAW |
1200mA |
||
OUTPUT |
240VAC, 50Hz (Pure Sine Wave) |
||
OUTPUT POWER |
1800W Continuous (3600W Peak) |
||
INVERTER CLASSIFICATION |
Equipotentially Bonded (EPB) |
||
EFFICIENCY |
85% |
||
LOW BATTERY ALARM |
10.5 Volt |
||
SHUTDOWN |
10.0 Volt (±0.2V) |
||
COOLING FAN |
Automatic temperature controlled |
||
THERMAL SHUTDOWN |
65°C (±5°C) |
||
FUSE |
240A (8 x 30A Internal Mini Blade Fuse) |
||
IDEAL BATTERY SIZE |
85–400Ah |
||
MINIMUM BATTERY SIZE |
85Ah |
||
RUN TIME WITH 1800W ON 85Ah BATTERY |
5 minutes |
||
RUN TIME WITH 100W GLOBE ON 85Ah BATTERY |
7 hours |
||
APPROVALS |
Electrical Safety, EMC |
