- Multi-volt 10-30V input & low current draw
- Built-in 18 selectable flash patterns
- Last pattern memory recall
- 100,000 hour LED life span with solid state technology
- Maintenance free
- Multi-unit synchronisation
- Simultaneous or alternating flashing
- Weatherproof & vibration resistant
- Ultra low-profile for discrete applications
Roadvision LED Strobe Module White 10-30V 18W 10 Flash Pattern 6 LED Synchroniza
$54.95
Sale price
$54.95
Regular price
Skip to product information
Specifications:
Roadvision LED Strobe Module White 10-30V 18W 10 Flash Pattern 6 LED Synchroniza
$54.95
Sale price
$54.95
Regular price
SP80RSM0706W
Roadvision LED Strobe Module White 10-30V 18W 10 Flash Pattern 6 LED Synchronizable SAE C1- 5 years Warranty
RANGE FEATURES
FLASH PATTERNS
1.OFF
2.Single
3.Double (Fast)
4.Quadruple (Fast)
5.Double (Slow)
6.Single (Split)
7.Double (Split)
8.Quadruple (Slow Split)
9.Quadruple (Fast Split)
10.Double (Split) Interval
11.Sextuple (Split)
12.Quintuple 4 Cycles Then 100ms 10 Cycles (Split)
13.100ms 14 Cycles Then 200ms 6 Cycles (Split)
14.Sextuple
15.Quadruple (Slow)
16.Quintuple (Slow)
17. LHS Double, RHS Half Bright
18.RHS Double, LHS Half Bright
Specifications:
Part Number RSM0706W
Part Number RSM0706W

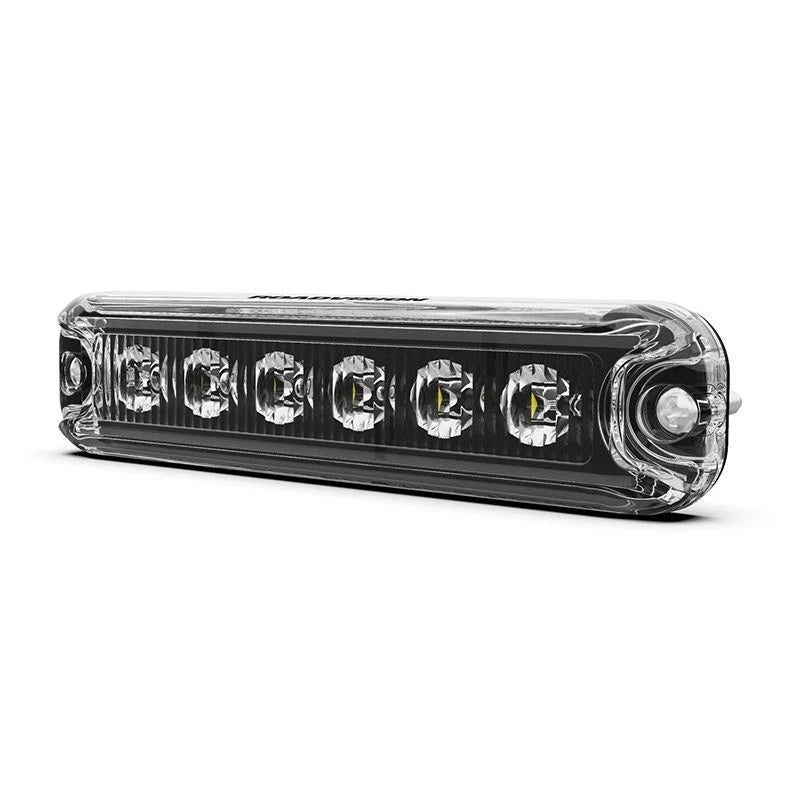

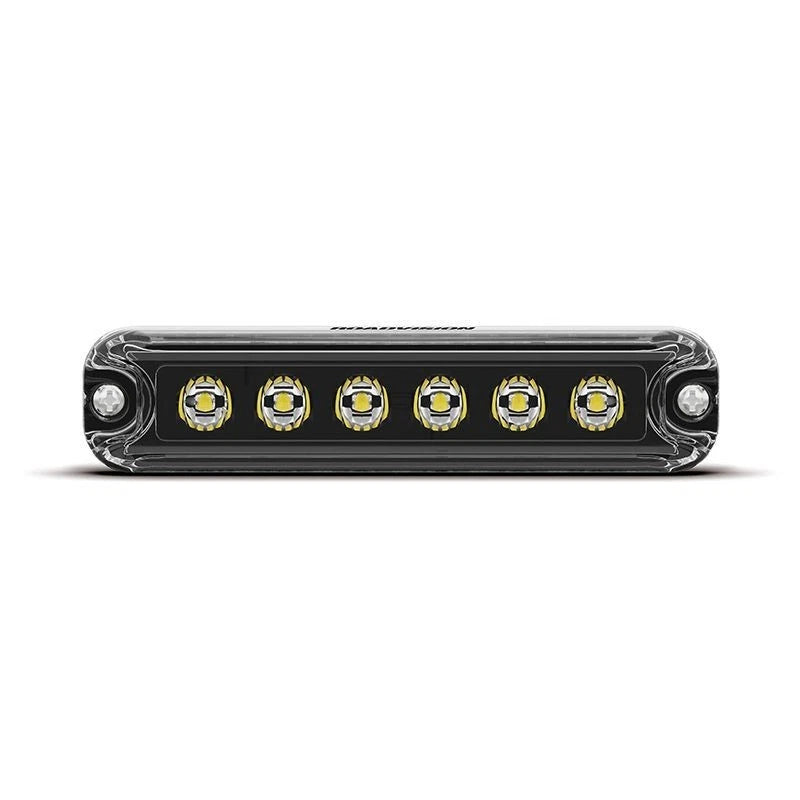

Description LED Strobe Module 10-30V Rectangle Surface Mount 18W White
Synchronisation Simultaneous & Alternate
Flash Patterns 10
Input Voltage 10-30 VDC
Watts 18W
Number of LEDs 6 x 3W
Current Draw @ 13.8V 1.5 Amp
Lens Construction Polycarbonate
Housing Construction Aluminium
Mounting Centres 119mm

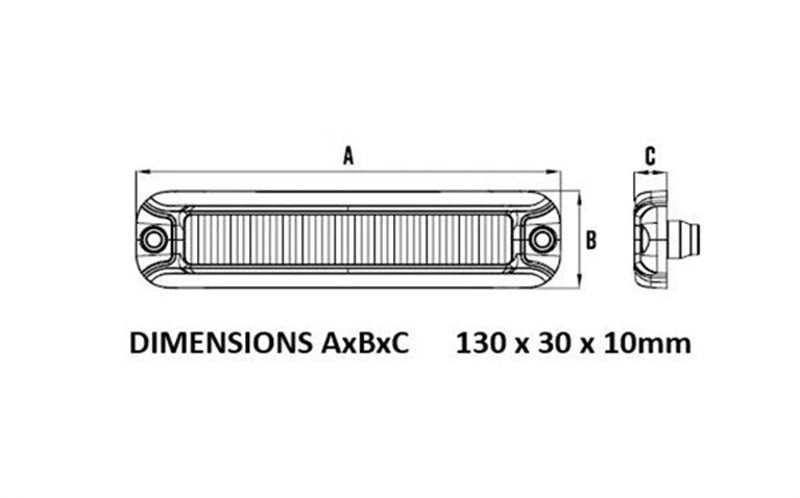

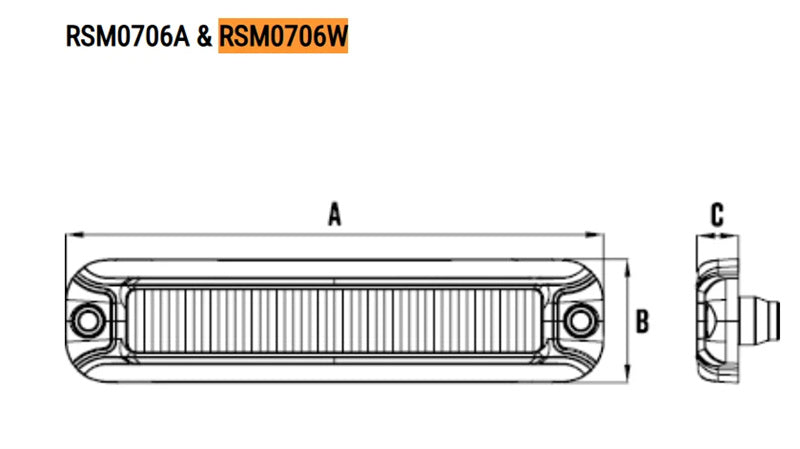

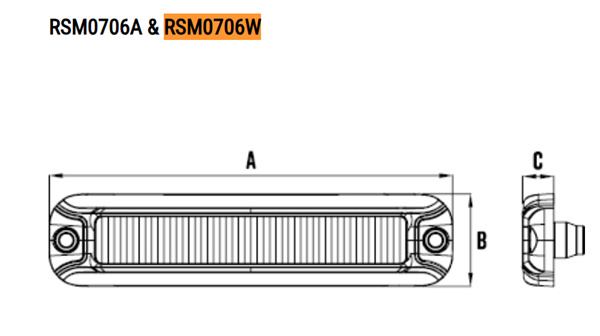

Dimensions AxBxC 130 x 30 x 10mm
Wiring
Red - Positive
Black - Negative
Yellow - Flash Select & Sync
White - Alternate Flash
