Roadvision LED Strobe Module White 10-30V 12W 18 Flash Pattern 4 LED Synchroniza
$55.95
Sale price
$55.95
Regular price
SP80RSM0604W

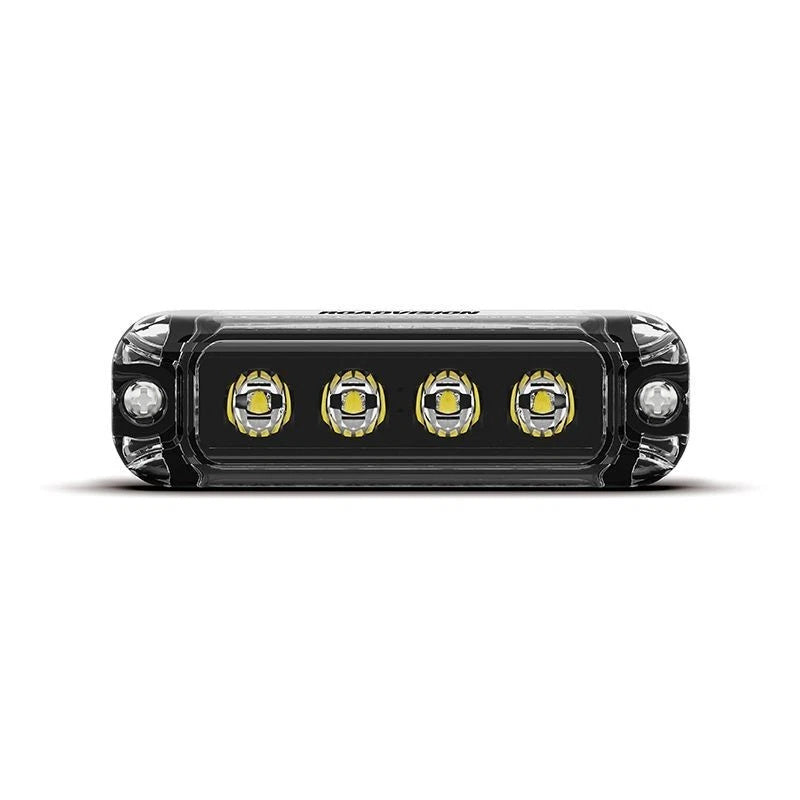

Roadvision LED Strobe Module White 10-30V 12W 10 Flash Pattern 4 LED Synchronizable SAE Class 1 - 5 years Warranty
RANGE FEATURES
Multi-volt 10-30V input & low current draw
Built-in 10 selectable flash patterns
Last pattern memory recall
100,000 hour LED life span with solid state technology
Maintenance free
Multi-unit synchronisation
Simultaneous or alternating flashing
Weatherproof & vibration resistant
Super low-profile for discrete applications
FLASH PATTERNS
Single
Quadruple (Split)
Quintiple
Triple (Split)
Quadruple
Double (Split)
Triple
Single (Split)
Double
Sextuple
Specifications:
Specifications:
Part Number： RSM0604W
Description ：LED Strobe Module 10-30V Rectangle Surface Mount 12W White
Synchronisation： Simultaneous & Alternate
Flash Patterns：10
Input Voltage 10-30 VDC
Watts 12W
Number of LEDs 4 x 3W
Current Draw @ 13.8V 1 Amp
Lens Construction Polycarbonate
Housing Construction Aluminium
Mounting Centres 89mm

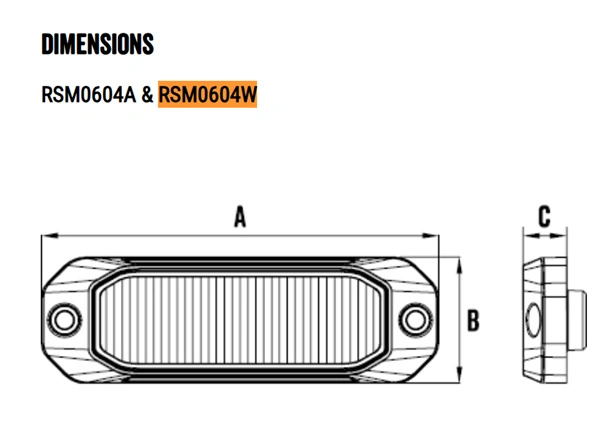

Dimensions AxBxC 101 x 32 x 11mm
Wiring： Red - Positive
Black - Negative
Yellow - Flash Select & Sync
White - Alternate Flash
