Roadvision LED Rear Combination Lamp 10-30V Stop/Tail/Ind Surface Mount 275
$86.95
Sale price
$86.95
Regular price
$139.00
Skip to product information
Roadvision LED Rear Combination Lamp 10-30V Stop/Tail/Ind Surface Mount 275
$86.95
Sale price
$86.95
Regular price
$139.00
SP70BR275ARR
Roadvision LED Rear Combination Lamp 10-30V Stop/Tail/Ind Surface Mount 275 x 100 x 21mm
RANGE FEATURES
Multi-volt 10-30V DC input & low current draw
Brighter than conventional incandescent systems
100,000 hour LED life span with solid state technology
Maintenance free
Sealed polycarbonate lens & housing
Water and dust proof
Supplied pre-wired with 300mm LEDLink Connector
Super thin 21mm housing
Simple surface mount designs
ADR/ECE approved for all functions
Part Number BR275ARR
Description Rect Stop/Tail/Ind Combination Lamp Triple Module
Functions Stop/Tail/Indicator
Voltage Input 12V DC
Number of LED's Stop/Tail - 24 LED's
Indicator - 12 LED's Stop/Tail - 12 LED's
Indicator - 12 LED's
Reverse - 12 LED's
Current Draw Amps Ind - 0.1A
S/T - 0.1/0.05A @ 13.8V

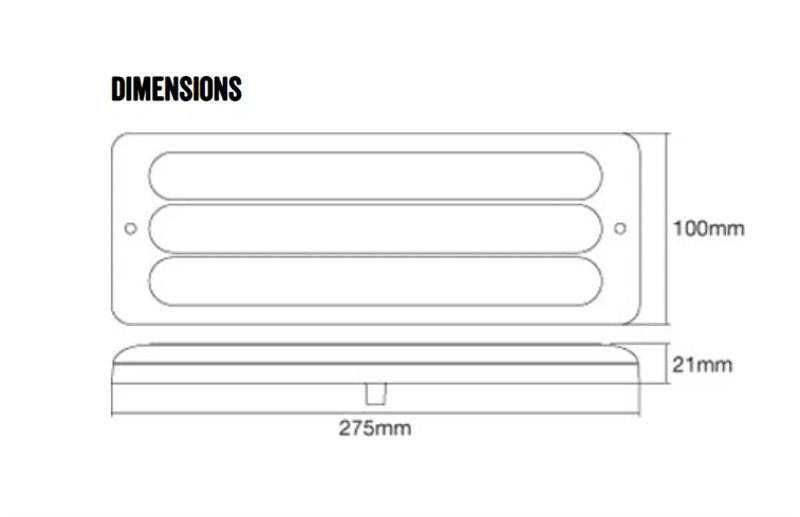

Dimensions AxBxC 275x100x21mm
Lens Construction Polycarbonate
Housing Construction Polycarbonate
Mounting Hole /Cut Out 255mm Hole Centres
Cable Length 300mm LEDLink Connector
ADR Approval Ind - CRN 49288
Stop - CRN 49287
Tail - CRN 49286
CTA Approval CTA-061061
