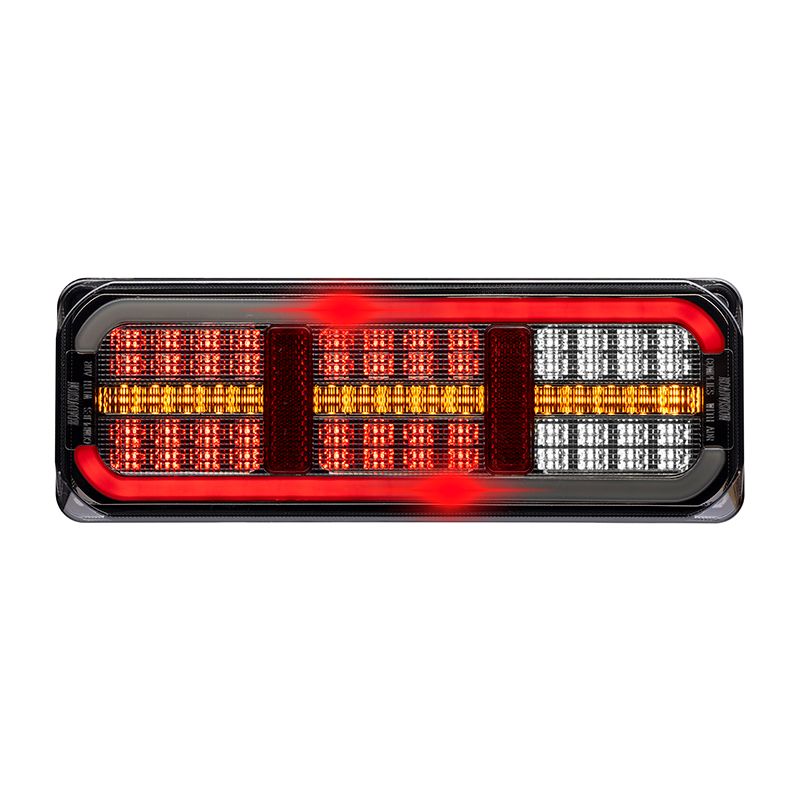

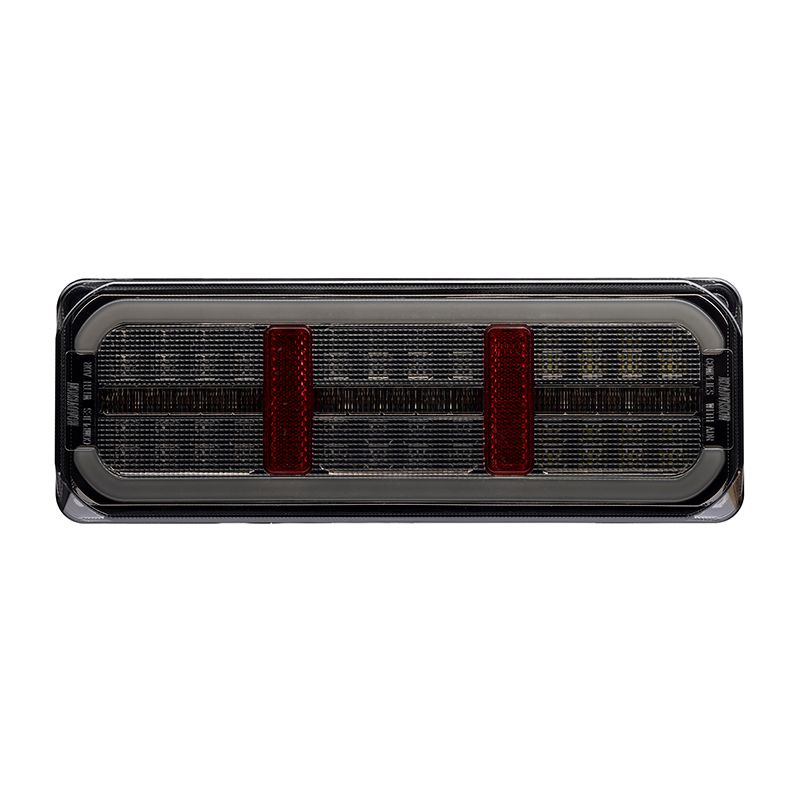

Roadvision LED Rear Combination Lamp 10-30V Stop/Tail/Ind/Rev/Ref 285x105mm Dynamic Glow Tail

Roadvision LED Rear Combination Lamp 10-30V Stop/Tail/Ind/Rev/Ref 285x105mm Dynamic Glow Tail

FEATURES
•    Stop/Tail Indicator or Stop/Tail Indicator & Reverse
functions
•    Sequential Indicator
•    Dynamic start up Grey Glowtech tail light
•    Integrated Retro Reflector
•    Multi-volt 10-30V DC input & low current draw
•    100,000HR rated LED lifespan with solid state
technology
•    Simple surface mount design
•    ADR approved for all functions
•    Light weight tough polycarbonate housing & lens
•    Mild tinted lens and gun metal grey chrome finish

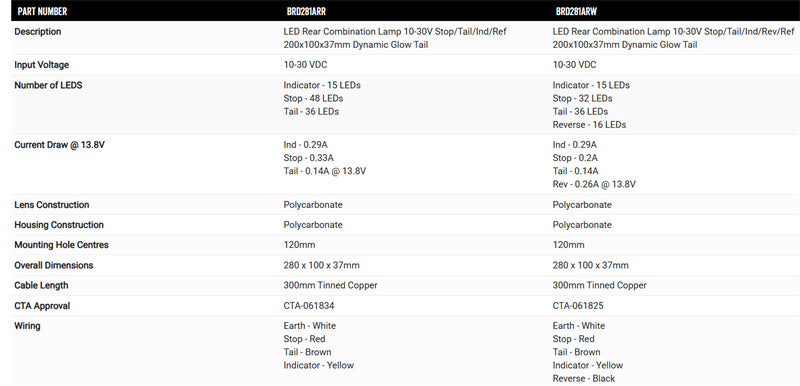

Part No: BRD281ARW
Description    LED Rear Combination Lamp 10-30V Stop/Tail/Ind/Rev/Ref 200x100x37mm Dynamic Glow Tail
Input Voltage    10-30 VDC
Number of LEDS
Indicator - 15 LEDs
Stop - 32 LEDs
Tail - 36 LEDs
Reverse - 16 LEDs
Current Draw @ 13.8V    Ind - 0.29A
Stop - 0.2A
Tail - 0.14A
Rev - 0.26A @ 13.8V
Lens Construction    Polycarbonate
Housing Construction    Polycarbonate
Mounting Hole Centres    120mm

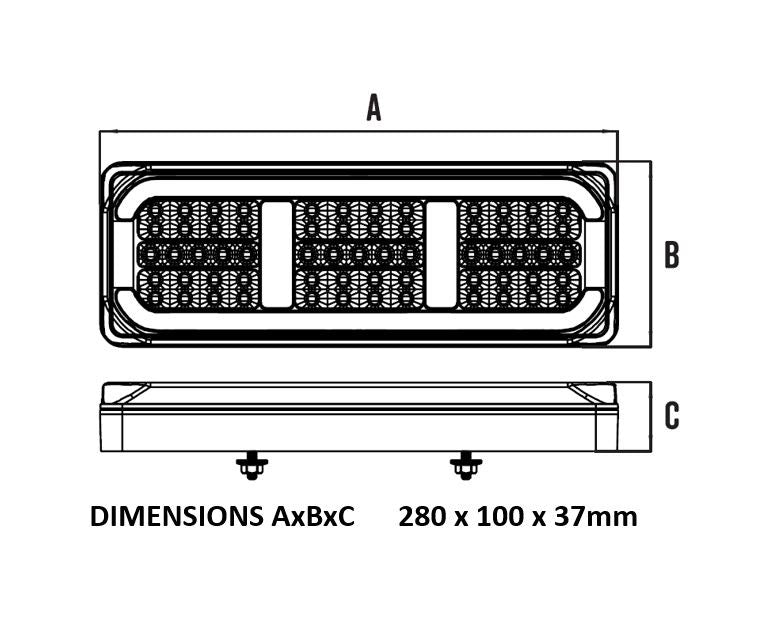

Overall Dimensions    280 x 100 x 37mm

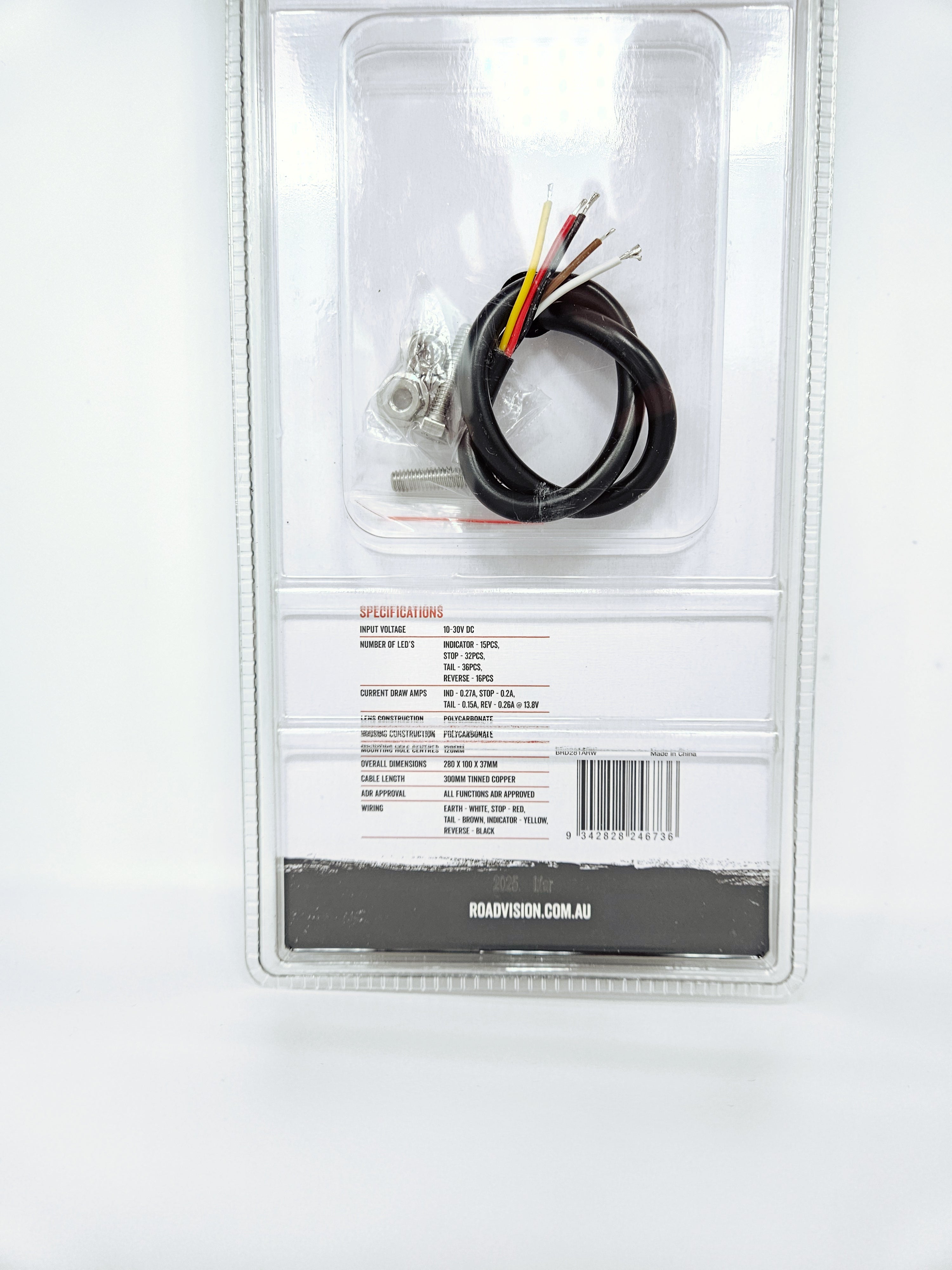

Cable Length    300mm Tinned Copper
CTA Approval    CTA-061825
Wiring        Earth - White
Stop - Red
Tail - Brown
Indicator - Yellow
Reverse - Black
