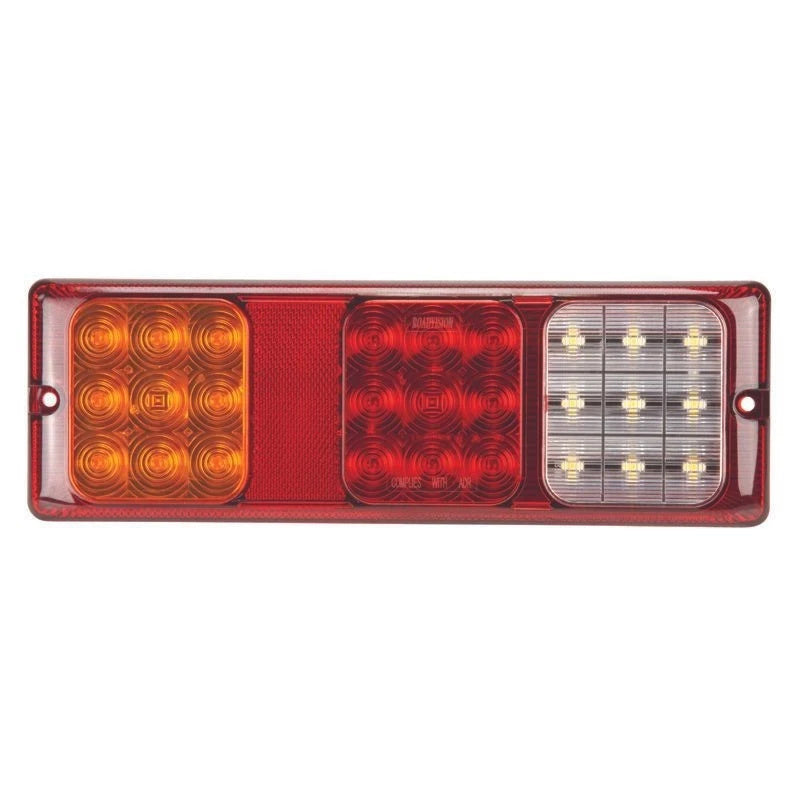

Roadvision LED Rear Combination Lamp 10-30V Stop/Tail/Ind/Rev 300x100

Multi-volt 10-30V DC input & low current draw
Brighter than conventional incandescent systems
100,000 hour LED life span with solid state technology
Maintenance free
Sealed polycarbonate lens & housing
Water and dust proof
Supplied pre-wired with 300mm LEDLink Connector
Super thin 21mm housing
Simple surface mount designs
ADR/ECE approved for all functions

Part NO:BR310ARW

Description  Rect Stop/Tail/Ind/Rev/Ref Combination Lamp Triple Module

Functions Stop/Tail/Indicator/Reflector/Reverse

Voltage Input 10-30V DC

Number of LED's Stop/Tail - 12 LED's

                 Indicator - 12 LED's

                 Reverse - 12 LED's

Current Draw Amps Indicator - 9 LED’s

                        Stop/Tail - 9 LED’s

                         Reverse - 9 LED’s

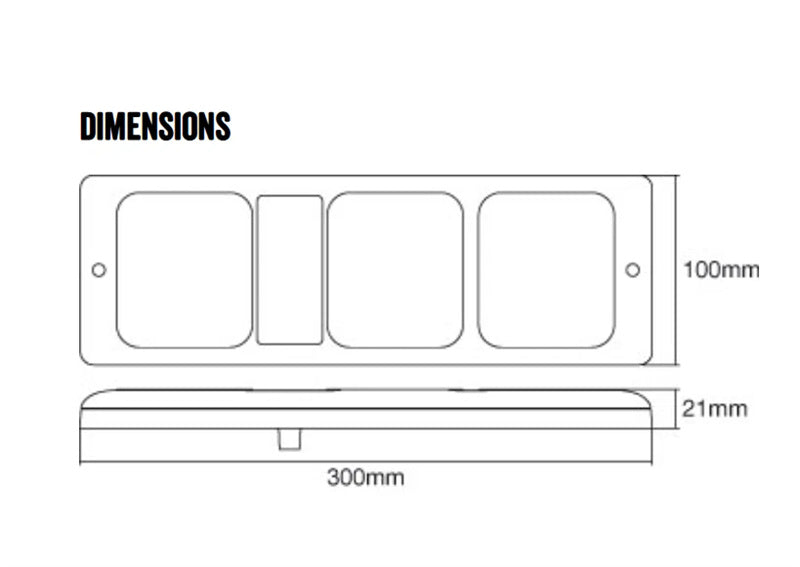

Dimensions AxBxC 300x100x21mm

Lens Construction Polycarbonate

Housing Construction Polycarbonate

Mounting Type Surface Mount

Mounting Hole /Cut Out 280mm Hole Centres

Cable Length         300mm Sheathed

ADR Approval     Ind - CRN 49283

                   Stop - CRN 49282

                  Tail - CRN 49284

                   Rev - CRN 49281

                   Ref - CRN 49312

CTA Approval    CTA-060861
