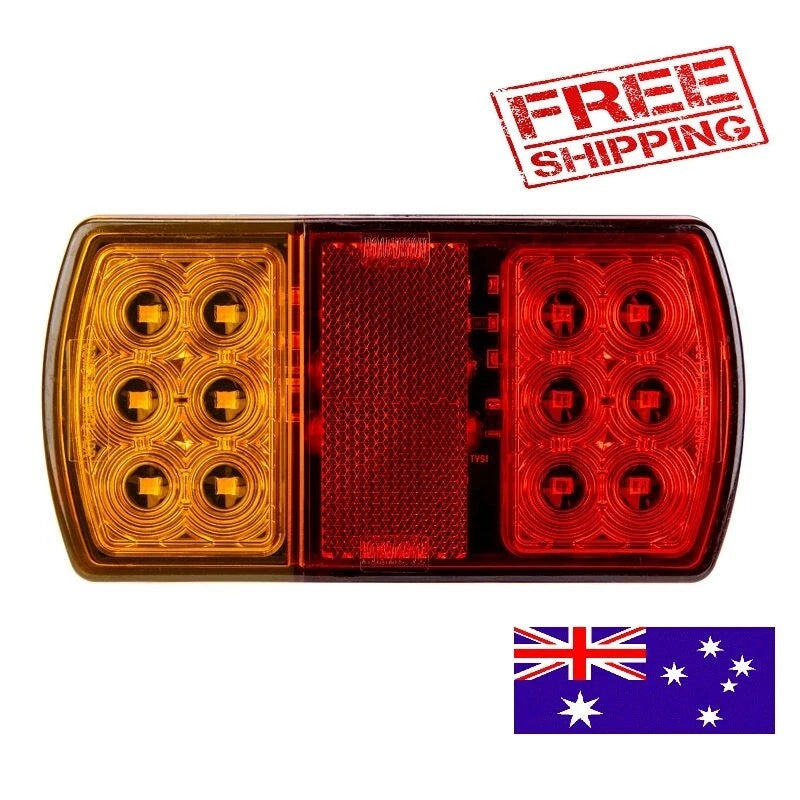

Roadvision LED Rear Combination Lamp 10-30V Stop/Tail/Ind/Ref Surface Mnt 150x80mm
Features:
Price is for one pc
Compact LED combination lamp
10-30V DC input & low current draw
100,000 hour rated LED lifespan with solid state technology
Water & dust proof (submersible)
Sealed polycarbonate lens & housing
Integrated reflector & optional licence plate lamp
Pre-wired with 300mm sheathed tinned copper cable
Easy surface mount stainless steel twin stud installation
Maintenance free
ADR/ECE approved for all functions
DIMENSIONS
Description:
Rect. Stop/Tail/Ind/Ref
Functions: Stop/Tail & Indicator
Voltage Input: Multi-Volt 10-30V DC
Number of LED's:
Indicator - 6 LED's
Stop/Tail - 6 LED's
Current Draw Amps: Ind - 0.09A @ 13.8V
S/T - 0.09/0.02A @ 13.8V

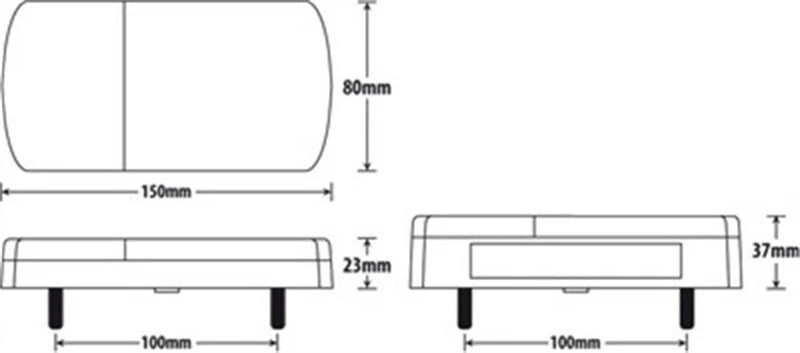

Dimensions AxBxC: 150x80x37mm
Lens Construction Polycarbonate
Housing Construction Polycarbonate
Mounting Hole Centre 100mm
Cable Length 300mm Tinned Copper
Wiring Colour Codes Earth - White
Stop - Red
Rail - Brown
Indicator - Green or Yellow
ADR Approval Ind - E4-6R-0115611
S/T - E4-7R-0215611
Ref - E4-3R-0215611
CTA Approval CTA-060546
