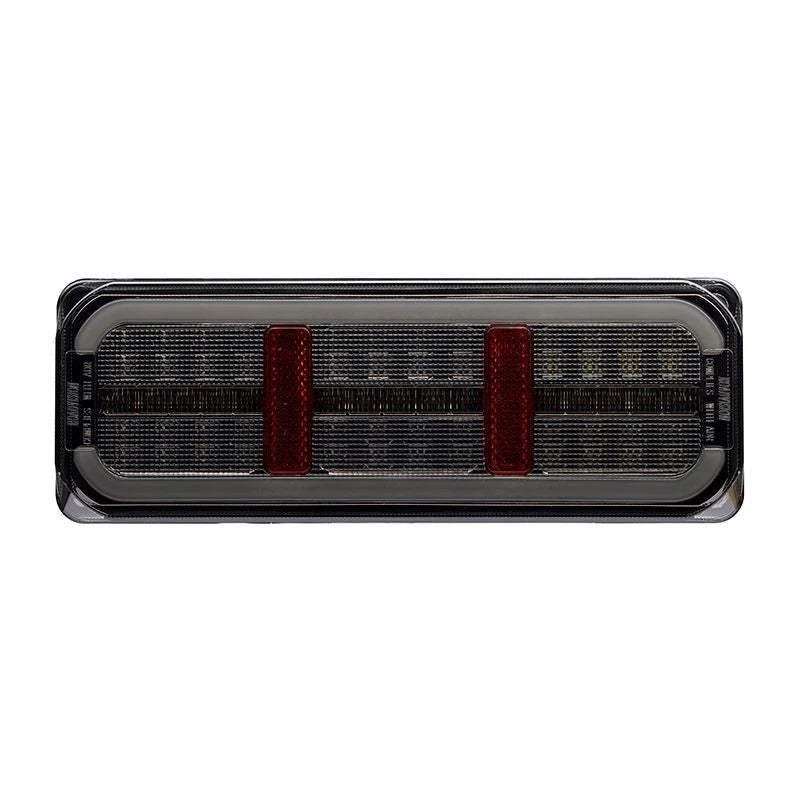

Roadvision LED Rear Combination Lamp 10-30V Stop/Tail/Ind/Ref 285x105mm Dynamic

Roadvision LED Rear Combination Lamp 10-30V Stop/Tail/Ind/Ref 280x100mm Dynamic Glow Tail - 5 Years Warranty

FEATURES
Stop/Tail Indicator or Stop/Tail Indicator & Reverse functions
Sequential Indicator
Dynamic start up Grey Glowtech tail light
Integrated Retro Reflector
Multi-volt 10-30V DC input & low current draw
100,000HR rated LED lifespan with solid state technology
Simple surface mount design
ADR approved for all functions
Light weight tough polycarbonate housing & lens
Mild tinted lens and gun metal grey chrome finish

Description   LED Rear Combination Lamp 10-30V Stop/Tail/Ind/Ref 200x100x37mm Dynamic Glow Tail

Input Voltage 10-30 VDC

Number of LEDS   Indicator - 15 LEDs

                 Stop - 48 LEDs

                 Tail - 36 LEDs



Current Draw @ 13.8V Ind - 0.29A

                     Stop - 0.33A

                     Tail - 0.14A @ 13.8V

Lens Construction Polycarbonate

Housing Construction Polycarbonate

Mounting Hole Centres 120mm

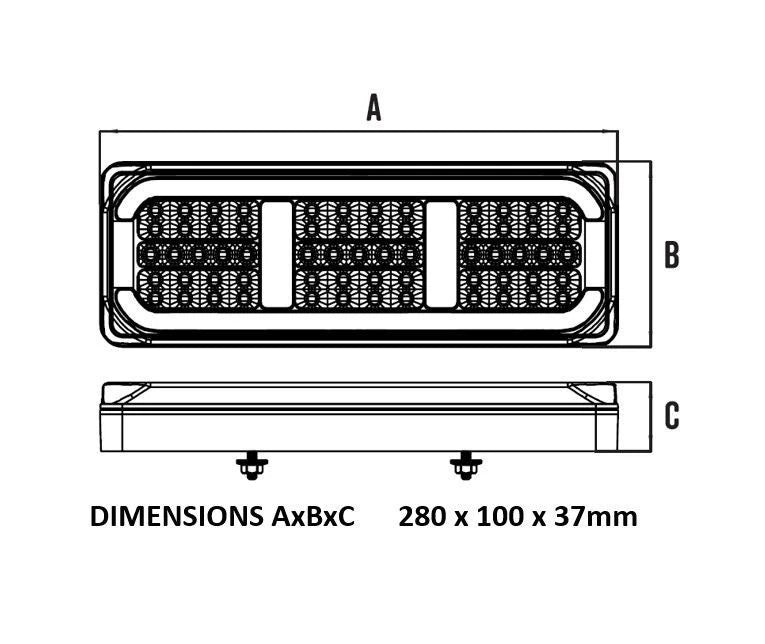

Overall Dimensions 280 x 100 x 37mm

Cable Length 300mm Tinned Copper

CTA Approval CTA-061834

Wiring              Earth - White

                    Stop - Red

                    Tail - Brown

                    Indicator - Yellow
