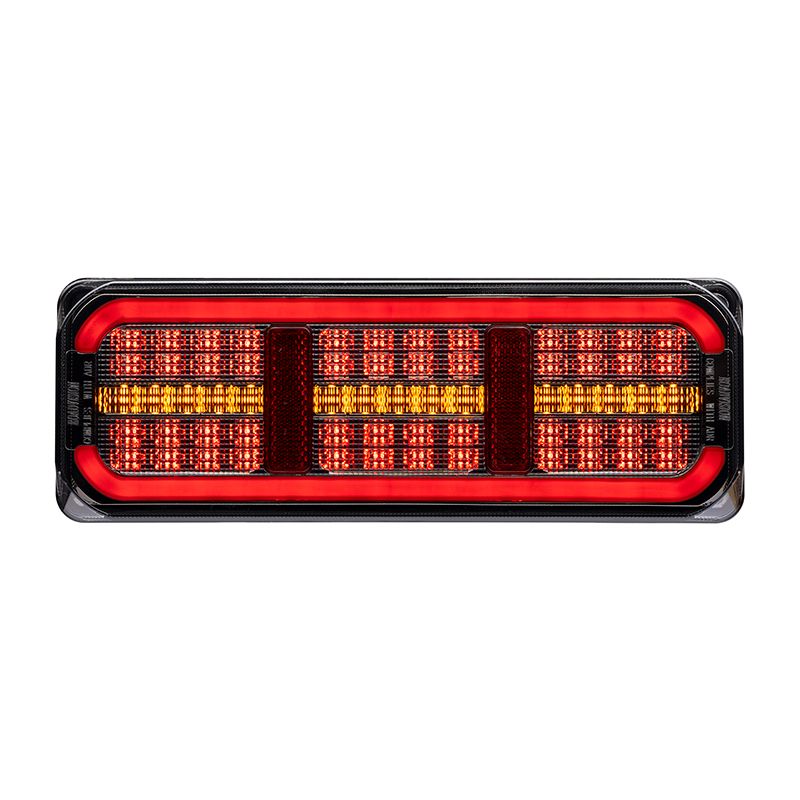

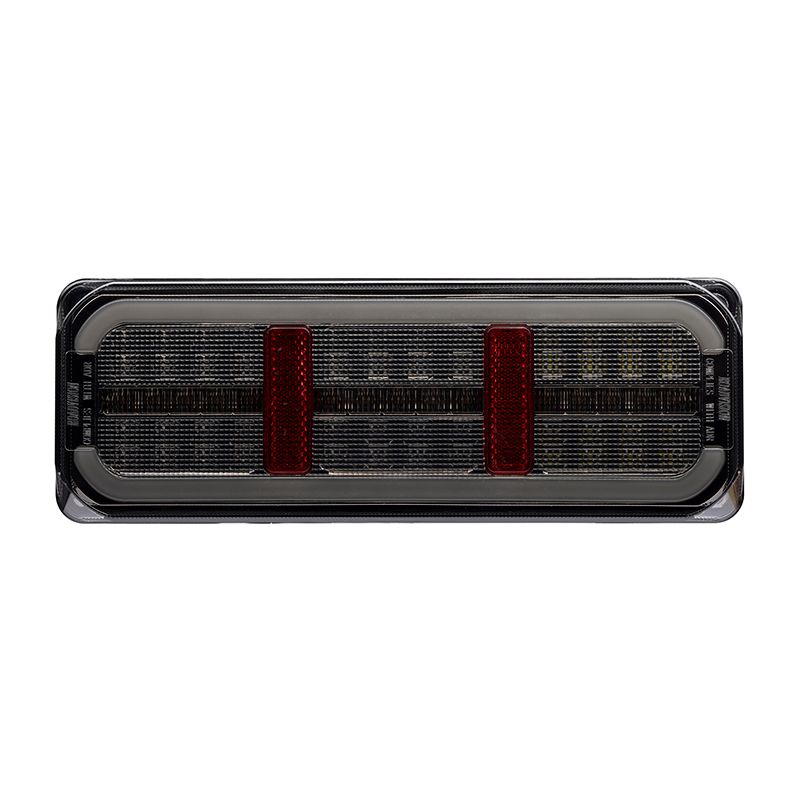

Roadvision LED Rear Combination Lamp 10-30V Stop/Tail/Ind/Ref 280x100mm

Roadvision LED Rear Combination Lamp 10-30V Stop/Tail/Ind/Ref 280x100mm - 5 Years Warranty

FEATURES

Stop/Tail Indicator or Stop/Tail Indicator & Reverse functions
Sequential Indicator
Grey Glowtech tail light
Integrated Retro Reflector
Multi-volt 10-30V DC input & low current draw
100,000HR rated LED lifespan with solid state technology
Simple surface mount design
ADR approved for all functions
Light weight tough polycarbonate housing & lens
Mild tinted lens and gun metal grey chrome finish

Description   LED Rear Combination Lamp 10-30V Stop/Tail/Ind/Ref 200x100x37mm

Input Voltage 10-30 VDC

Number of LEDS  :

Indicator - 15 LEDs
Stop - 48 LEDs
Tail - 36 LEDs

Current Draw:

 Ind - 0.29A
Stop - 0.33A
Tail - 0.14A @ 13.8V

Lens Construction Polycarbonate

Housing Construction Polycarbonate

Mounting Hole Centres 120mm

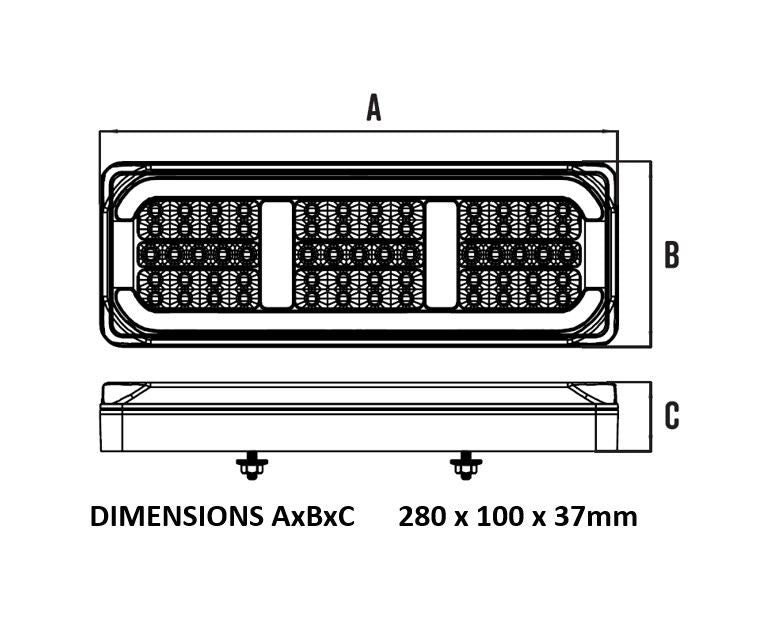

Overall Dimensions 280 x 100 x 37mm

Cable Length 300mm Tinned Copper

CTA Approval       CTA-061824
Wiring    Earth - White
Stop - Red
Tail - Brown
Indicator - Yellow
