Roadvision LED Beacon Revolver 10-30V Amber DIN Pole Mount 28W Sim Rotating SAE
$215.95
Sale price
$215.95
Regular price
Skip to product information
Roadvision LED Beacon Revolver 10-30V Amber DIN Pole Mount 28W Sim Rotating SAE
$215.95
Sale price
$215.95
Regular price
SP80RB1552PY
Roadvision LED Beacon Revolver 10-30V Amber DIN Pole Mount 28W Sim Rotating SAE Class 1- 5 Years Warranty
RANGE FEATURES
LED 5 function 360° high intensity beacons
Single, double, triple, quad & simulated rotating flash patterns
Multi-volt 10-30V input & low current draw
32 SMD LED’s produce 28 watts
100,000 hour rated LED life span
Maintenance free solid state technology
Tough polycarbonate lens and housing
Weatherproof IP67 rated and vibration proof
Compact 166 x 150mm (fixed & magnetic) or 200 x 150mm (DIN pole) body
Available in 3 hole fixed, magnetic or DIN pole mounts
EMC CISPR25 Class 5 Approved & SAE Class 1
FLASH PATTERNS
Single
Double
Triple
Quad
Simulated Rotating (140rpm)
MULTI-FIT FIXED MOUNT
Featuring 8 possible 3 hole mounting configurations at 120° apart between 113 and 152.5mm diameter.
Mounting holes are 4.5mm in diameter.
Part Number RB1552PY
Description Beacon LED 10-30V Simulated Rotating Amber DIN Pole Mount
Function Simulated Rotator
Light Source 32 SMD LED’s
Flash / Rotation Rate 140rpm

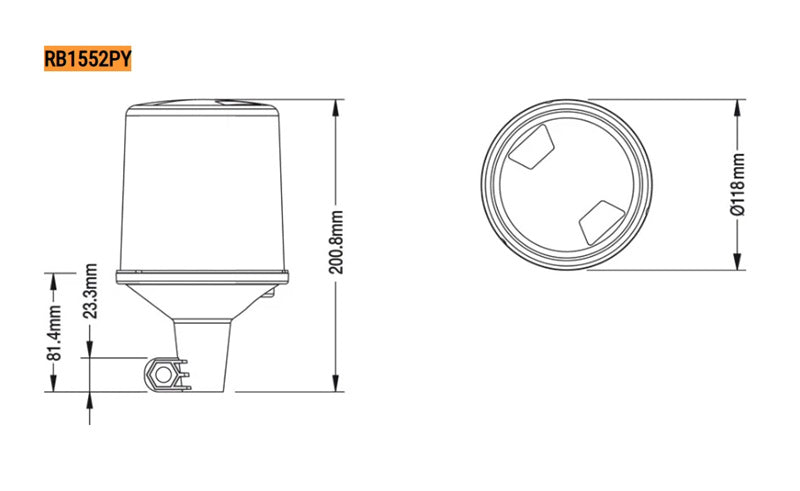

Dimensions 200x118mm
Current Draw Amps 2.7A @ 13.8V
Operating Temperature -40ºC to +65ºC
Mounting Type DIN Pole Mount
Wiring DIN Plug inc. in Pole Mount
Approvals EMC CISPR25 Class 5
SAE Class 1 Approved
