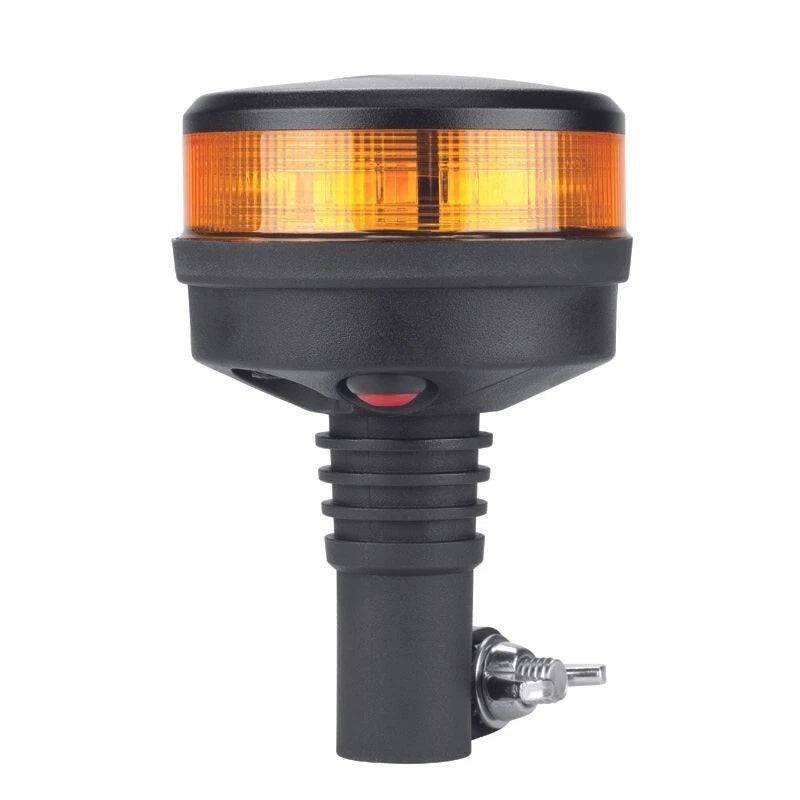

Roadvision LED Beacon Micro Revolver Dual 10-30V Amber DIN Pole Mount 28W 10 Fun

Roadvision LED Beacon Micro Revolver Dual 10-30V Amber DIN Pole Mount 28W 10 Function SAE Class 1- 5 Years Warranty

RANGE FEATURES
Compact low profile 10 function 360° high intensity beacons
Single, double, triple, quad & simulated rotating flash patterns
Multi-volt 10-30V input & low current draw
32 SMD LED’s produce 28W
100,000 hour rated LED lifespan
Maintenance free solid state technology
Tough polycarbonate lens & aluminium body
Waterproof IP67 rated and vibration proof
Compact low profile 112 x 48mm body
Available in 3 hole fixed, magnetic or DIN pole mounts
EMC, ECE R10 & SAE class 1 approved

FLASH PATTERNS
Single (ECE/SAE) 480ms
Single 800ms
Double 400ms
Double 800ms
Triple 820ms
Quad 820ms
F&B Half 400ms
F&B Half 800ms
Rotated 800ms
Rotated 400ms

Description Low Profile Beacon LED 10-30V 10 Flash Pattern Amber DIN Pole Mount

Function 10 Selectable Flash Patterns

Light Source 32 SMD LED’s

Flash / Rotation Rate 10 Flash Patterns

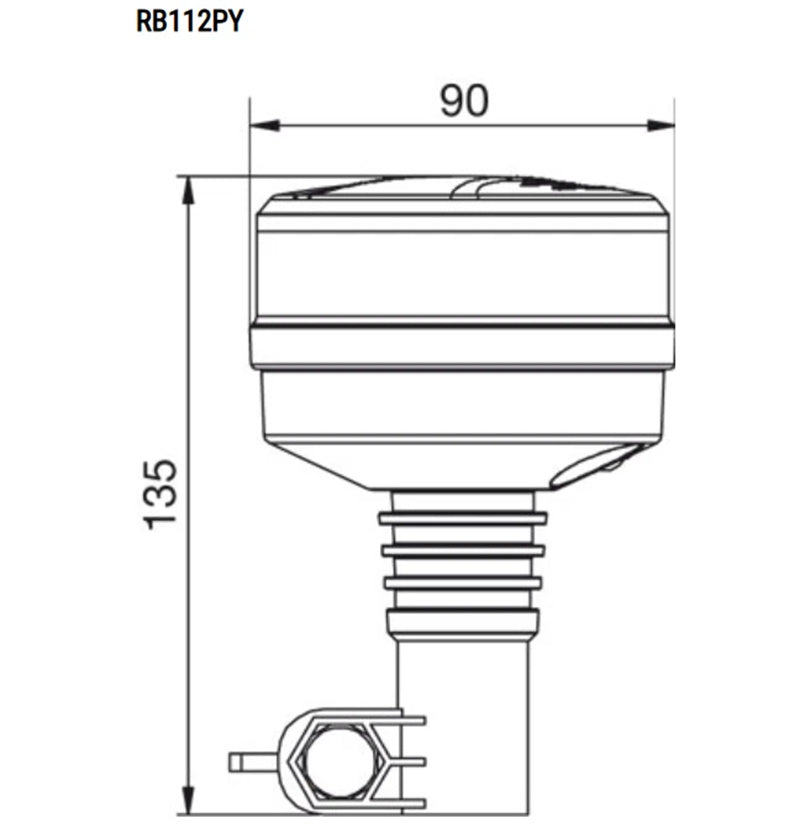

Dimensions 90x135mm

Current Draw Amps 1.9A @ 13.8V

Mounting Type DIN Pole Mount

Wiring                DIN Plug inc. in Pole Mount

Approvals EMC Cispr25 Class 5 & SAE Class 1
