Roadvision LED Bar Light 22in SRE 11-32V 20x5W 100W 8400lm Combo Beam IP67
$75.95
Sale price
$75.95
Regular price
$165.28
Skip to product information
Roadvision LED Bar Light 22in SRE 11-32V 20x5W 100W 8400lm Combo Beam IP67
$75.95
Sale price
$75.95
Regular price
$165.28
SP40RBLW3220C

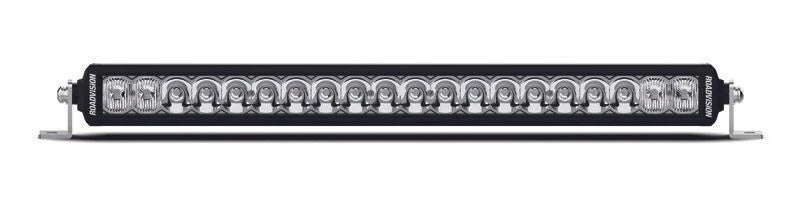

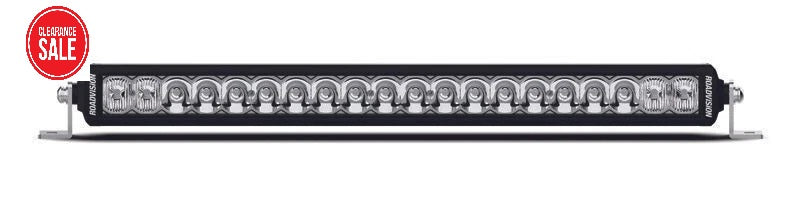

Roadvision LED Bar Light 22in SRE 11-32V 20x5W 100W 8400lm Combo Beam IP67 Single Row
Specification:
SRE Series single row LED bar lights produce up to 12600lm of instant light output
Available in 12”, 22”, 32” models
5W Osram LED’s produce super white light close to daylight
Multi-volt 11-32V DC input & low current draw
50,000 hour LED lifespan with solid state technology
Thermal management technology
Light weight tough die-cast aluminium housing & polycarbonate lens
Water & dust proof IP68 rated
Simple 2 wire installation with Deutsch plug
Low profile slide & end mounts
Over/under voltage, reverse polarity protection & EMI/EMC radio interference approved
DIMENSIONS
Part Number RBLW3220C
Description SRE Series 22" Bar 20 LED

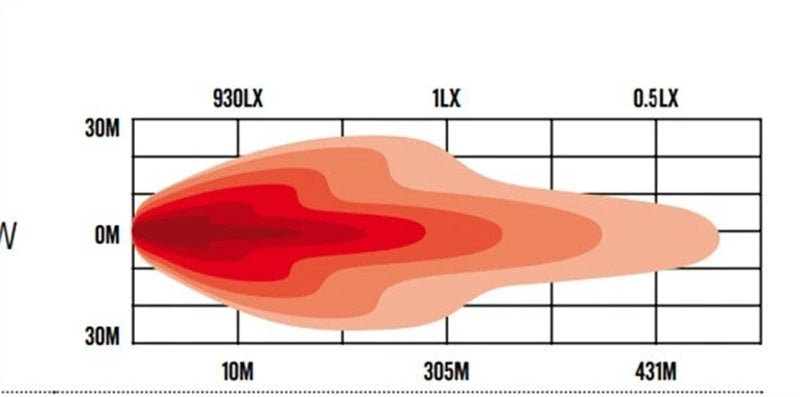

Beam Pattern Combination
Maximum Lumens 8400lm
Maximum Lux @ 10m 3738lx
Maximum Beam Distance @ 0.5lx 740m
Maximum Beam Distance @ 1LX 523m
Input Voltage 11-32VDC
Maximum Watts 100W
Number of LEDS 20 x 5W Osram
Current Draw @ 13.8V 6.0~7.2 Amps
Lens Construction Polycarbonate
Housing Construction Die-Cast Aluminium
Wiring 2 Pin Deutsch Plug

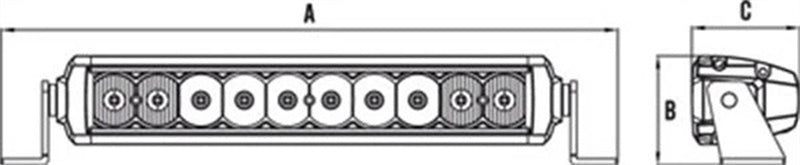

Dimensions AxBxC: 601 x 63 x 62mm
RANGE FEATURES
Available in 12”, 22”, 32” models
5W Osram LED’s produce super white light close to daylight
Multi-volt 11-32V DC input & low current draw
50,000 hour LED lifespan with solid state technology
Thermal management technology
Light weight tough die-cast aluminium housing & polycarbonate lens
Water & dust proof IP68 rated
Simple 2 wire installation with Deutsch plug
Low profile slide & end mounts
Over/under voltage, reverse polarity protection & EMI/EMC radio interference approved
DIMENSIONS
