Roadvision 32" LED Light Bar DCX2 Curved 10-30V 60x3W 180W 16200lm Combo Beam
$455.95
Sale price
$455.95
Regular price
Skip to product information
Roadvision 32" LED Light Bar DCX2 Curved 10-30V 60x3W 180W 16200lm Combo Beam
$455.95
Sale price
$455.95
Regular price
SP40RBL6320C

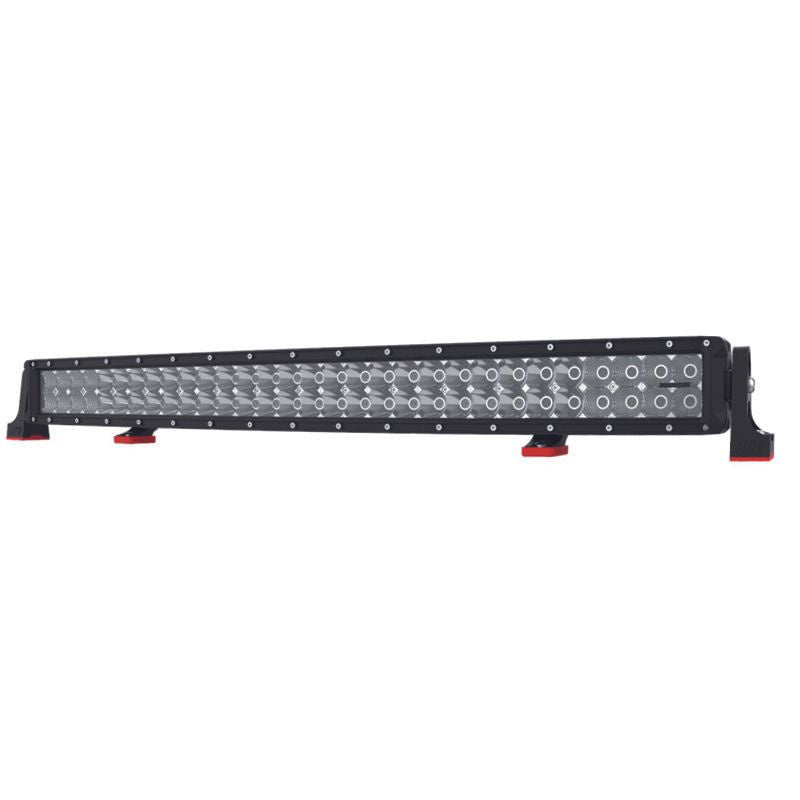

Roadvision 32" LED Light Bar DCX2 Curved 10-30V 60x3W 180W 16200lm Combo Beam TMT IP67 Dual Row - 7 years Warranty
RANGE FEATURES
DCX2 Series dual row curved LED bar lamps produce up to 25920lm of light
3W Osram Hi-Lux LED’s produce super white light close to daylight
Curved bar produces a wider beam angle for improved roadside illumination
Multi-volt 10-30V DC input & super low current draw
50,000 hour LED lifespan with solid state technology
Soft start, PWM dimmable & advanced thermal management technology
Light weight tough die-cast aluminium housing & polycarbonate lens
Water & dust proof IP67 rated
Simple 2 wire installation Deutsch/ATP plug & optional plug & play dimming controller
9 position adjustable anti-vibration end mount system & low profile slide mounts
Over/under voltage, reverse polarity protection & EMI/EMC radio interference approved
DCX2 Series dual row curved LED bar lamps produce up to 25920lm of light
3W Osram Hi-Lux LED’s produce super white light close to daylight
Curved bar produces a wider beam angle for improved roadside illumination
Multi-volt 10-30V DC input & super low current draw
50,000 hour LED lifespan with solid state technology
Soft start, PWM dimmable & advanced thermal management technology
Light weight tough die-cast aluminium housing & polycarbonate lens
Water & dust proof IP67 rated
Simple 2 wire installation Deutsch/ATP plug & optional plug & play dimming controller
9 position adjustable anti-vibration end mount system & low profile slide mounts
Over/under voltage, reverse polarity protection & EMI/EMC radio interference approved
Specifications:
Part Number RBL6320C
Description DCX2 Series 32" Curved Bar 60 LED
Beam Type Combo Beam
Lumens Light Output (Effective) 16200lm

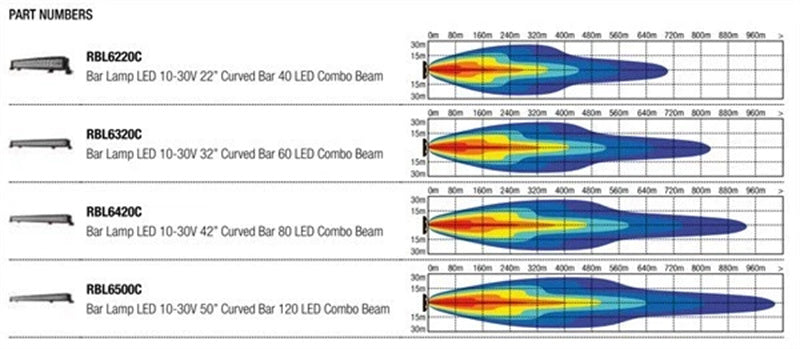

Beam Distance 818m
Total Watts 180W
Light Source 60x3 Watt Osram LED's
Input Voltage 10-30V DC
Current Draw Amps 10.0A @ 13.8V

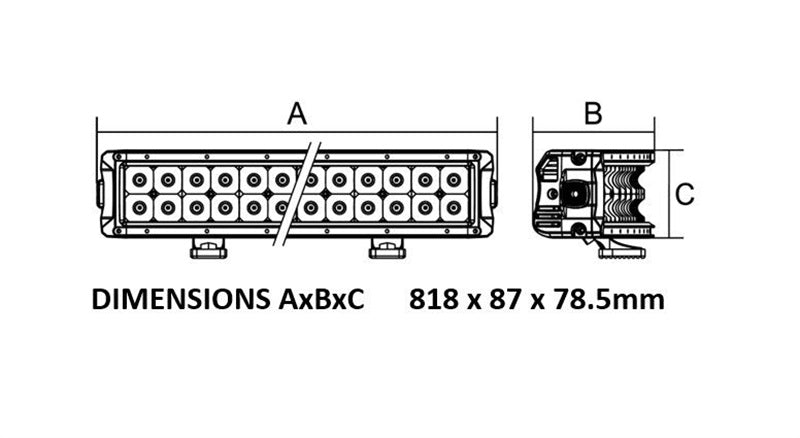

Dimensions AxBxC 818x87x78.5mm
Bar Length 32" (818mm)
Wiring 2 Pin ATP Plug
Lux @ 10m 1674 Lux
Meters @ 1 Lux 409m
Meters @ 0.5 Lux 818m
