Lightfox 9" Osram Laser LED Driving Lights + 20" Dual Row LED Light Bar + Wiring Kit - 5 years warranty
Features：

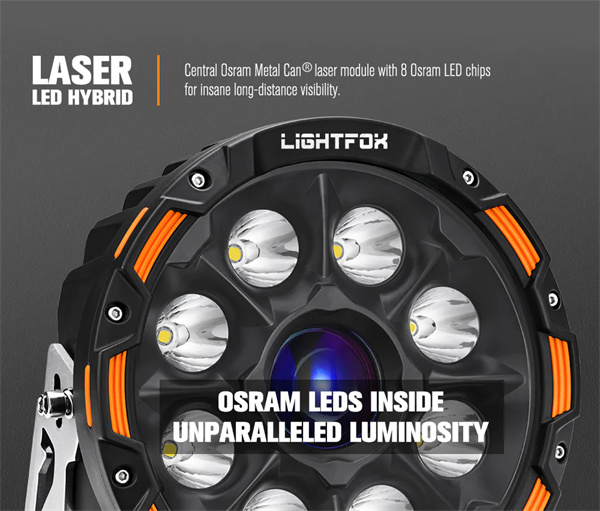

Laser/LED Hybrid: Central Osram Metal Can® laser module with 8 Osram LED chips for insane long-distance visibility.

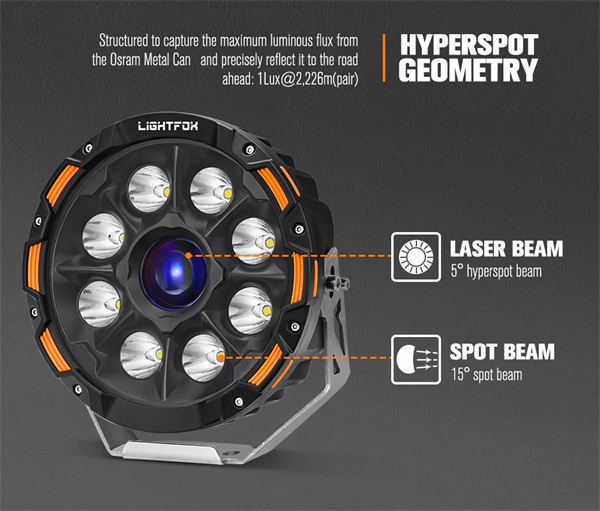

HyperSpot Geometry: Structured to capture the maximum luminous flux from the Osram Metal Can® and precisely reflect it to the road ahead: 1Lux@2,226m(pair).
Vision Drive Tech: Redesigned reflector cup with enhanced reflection angle to make most of the light produced.
Ultra Vision: 5° hyperspot beam and 15° spot beam of the laser driving lights are for complete visibility with Osram 5050 LEDs that deliver 15,046lm(pair).
Complete Clarity: 5,700 Kelvin offers stunning clarity against poor conditions with reduced eye fatigue.
Built TOUGH: AkzoNobel powder protects the aluminum housing from UV exposure and corrosion, and 4mm thick stainless steel bracket is insanely tough.

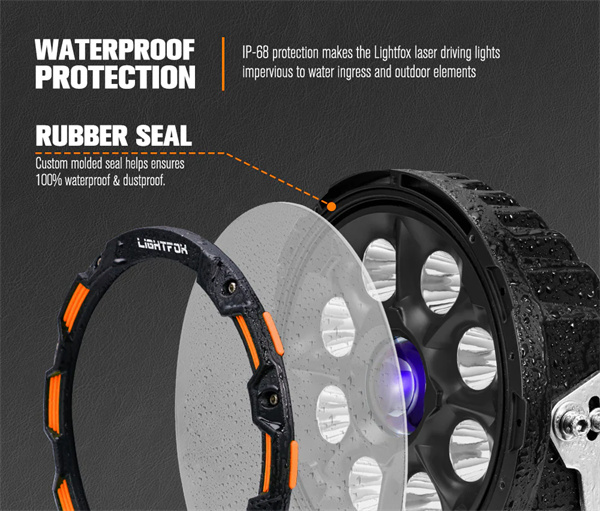

Waterproof Protection: IP-68 protection makes the Lightfox laser driving lights impervious to water ingress and outdoor elements.
Optimally Engineered: Built-in protection of these laser LED driving lights eliminates short circuit and reverse polarity.
Stylish Design: Blacked-out structure for a more refined and subtle look, black and clear covers command attention wherever you go.
Longer Lifespan: Enlarged heat sinks for efficient heat transfer, and a 5-year warranty serves as the quality assurance of these laser LED driving spot lights.
SPECIFICATIONS
9inch Laser Light
Brand: Lightfox
Light Source: Laser/LED Hybrid
LUX Rating: 1Lux@2,226m
Raw Lumens: 15,046 (pair)
Dimension: 9’’
LED Chip: 10W*8 Osram 5050
Laser Chip: Osram Metal Can®
Reflector Distribution: 1 Laser + 8 Spot
Hyperspot Beam: 5°
Spot Beam: 15°
Colour Temperature: 5,700K
Housing Material: Aluminium
Heat Sink: Aluminium
Lens Cover: Strengthened PC
Bracket: Stainless Steel
Sealing Material: UV Resin
Coating: AkzoNobel Powder
Theoretical Output: 112W
Amp Draw: 7.78A@14.4V (each)
Relative Light Intensity: 78% (150°C)
Waterproof: IP68 Rating
Expected Lifespan: 50,000 Hours
Operating Environment: -40 - 150°C
Package Dimension: 51.5 x 40.5 x 20cm
Gross Weight: 7kg
20inch LED Light Bar
Bulb Type: LED
Chip: 3W*40 OSRAM OSLON
Theoretical Output: 120W
Housing & Heat Sinks: Aluminum
Lens: Strengthened PC
Coating: AkzoNobel Powder
Sealing Material: UV Resin
Side Bracket: Forged Iron
Bottom Bracket: Aluminum
Raw Lumens: 15,096LM
Lux Rating: 1Lux@509m
Color Temperature: 5,500K
Reflector Distribution: 8 Flood + 24 Spot + 8 Flood
Spot Beam: 13°
Flood Beam: 90°
Amp Draw: 6.5A@12V
Expected Lifespan: 50,000 Hours
Relative Light Intensity: 78% (150°C)
Operating Temperature Range: -40°C (-40°F) ~ 150°C (302°F)
Waterproof: IP-68 Rating
Product Dimension (With Bracket): L58.3 x W6.5 x H8.2 cm
Package Size: 37 x 9.5 x 10cm
Gross Weight: 1.94kg

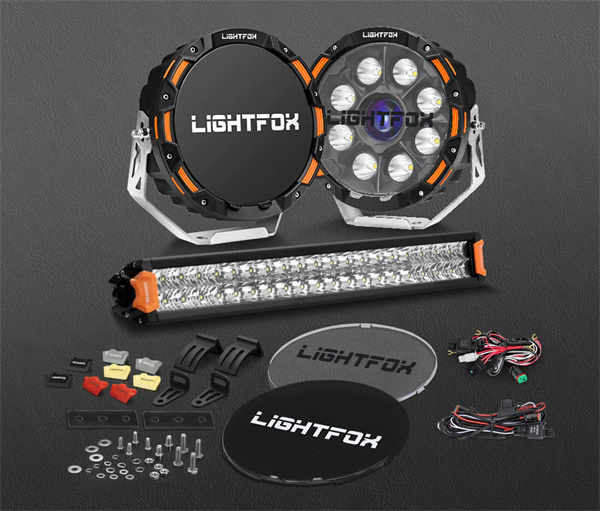

Package Includes:
Pair Lightfox 9" Laser/LED Driving Lights
2 x Clear Protective Covers & 2 x Blackout Protective Covers For Driving Lights
2 x Mounting Brackets For Driving Lights
2 x Rubber Pads For Driving Lights
1 x Lightfox 20" LED Light Bar
2x Side Mounts & 2x Bottom Mounts For Light Bar
4 Pairs Colour Caps For Light Bar
2 x Wiring Harness
2 x User Manual
2 Sets Of Mounting Hardware
