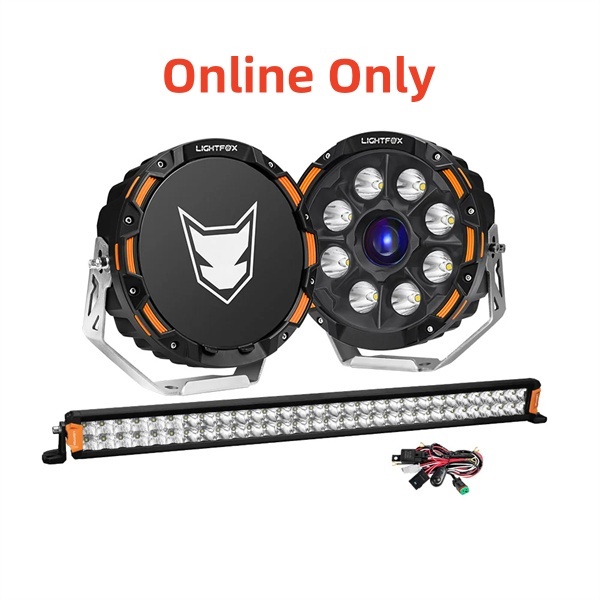

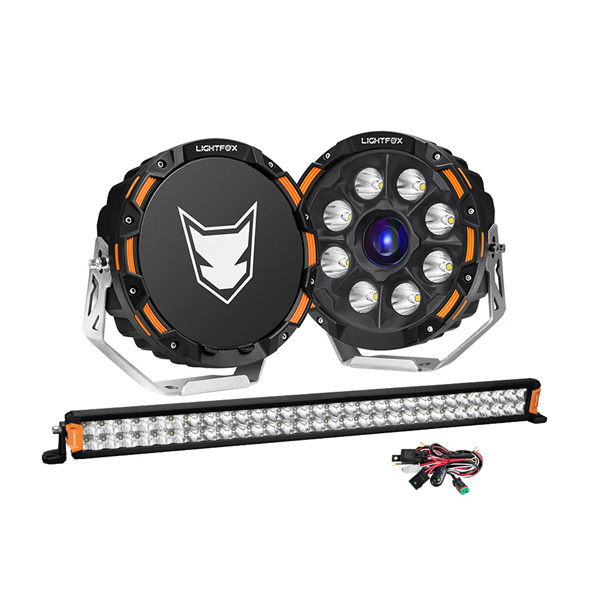

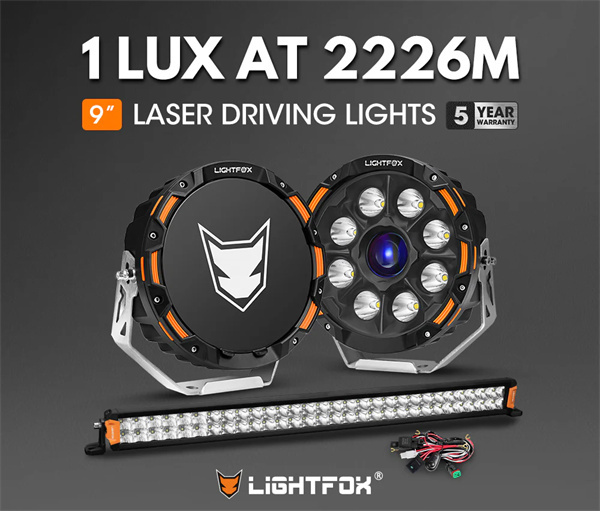

Lightfox 9 inch Osram Laser LED Driving Lights + 30 inch LED Light Bar + Wiring Kit - 5 Years Warranty
Features：
Laser/LED Combo: Featuring OSRAM Metal Can® laser module and 5050 LEDs, our lights deliver 15,046lm (pair) with 5° hyperspot and 15° spot beams for superior performance.
HyperSpot Geometry: Precisely structured to capture the most light possible from the OSRAM Metal Can®, our lights deliver 1Lux@2,226m (pair) for unparalleled visibility.
Vision Drive Tech: Our redesigned reflector cup features an improved reflection angle to make the most of the light produced.
Complete Clarity: Enjoy complete clarity in poor conditions with our 5,700 Kelvin lighting. This stunning clarity helps reduce eye fatigue and provides optimal visibility.
Indestructible Strength: Our Lightfox laser LED driving spot lights boasts aluminum housing, AkzoNobel powder coating, anti-scratch PC lens for unbeatable toughness.
Insanely Robust Bracket: 12mm thick die-cast aluminum with powder coating resists UV rays, corrosion, rust, and even the most brutal impacts without cracking.
Waterproof Protection: With an IP68 rating, our Lightfox laser LED driving lights are impervious to water ingress and other outdoor elements.
Protection Guaranteed: Our laser driving lights are designed with built-in protection against flickering and reverse polarity, and enlarged heat sinks for efficient heat transfer.

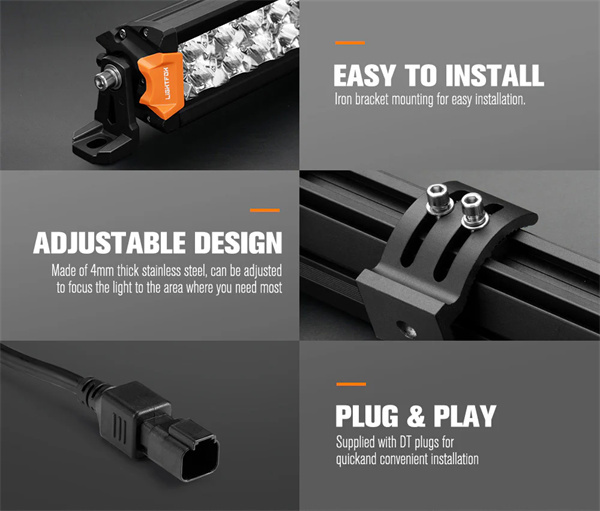

Easy Installation: Our laser LED driving spot lights come equipped with a wiring harness that includes waterproof DT plugs and a switch for easy installation.
Stylish Design: Our blacked-out structure offers a refined and subtle look, while the black and clear covers command attention wherever you go.
SPECIFICATIONS

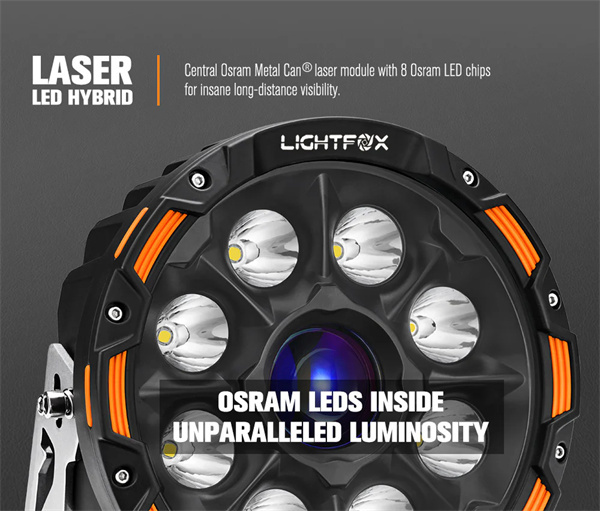

Laser/LED Hybrid: Central Osram Metal Can® laser module with 8 Osram LED chips for insane long-distance visibility.

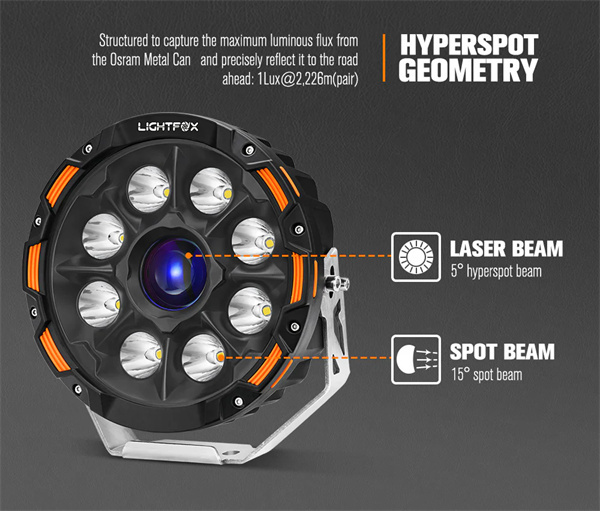

HyperSpot Geometry: Structured to capture the maximum luminous flux from the Osram Metal Can® and precisely reflect it to the road ahead: 1Lux@2,226m(pair).
Vision Drive Tech: Redesigned reflector cup with enhanced reflection angle to make most of the light produced.

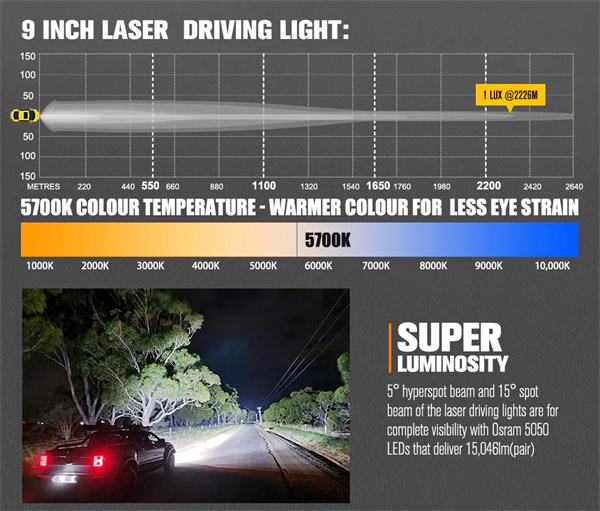

Ultra Vision: 5° hyperspot beam and 15° spot beam of the laser driving lights are for complete visibility with Osram 5050 LEDs that deliver 15,046lm(pair).
Complete Clarity: 5,700 Kelvin offers stunning clarity against poor conditions with reduced eye fatigue.

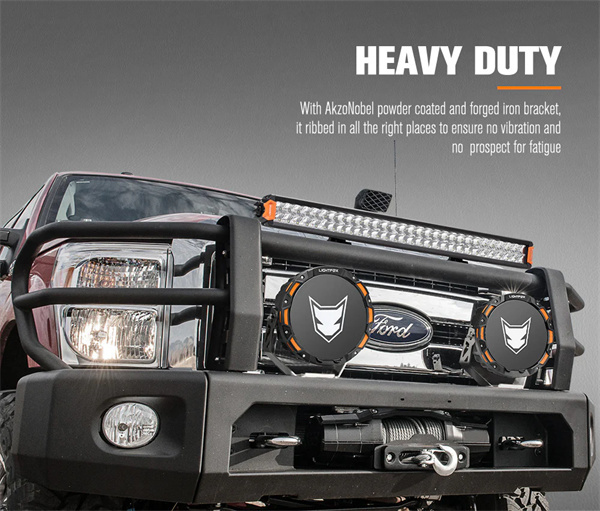

Built TOUGH: AkzoNobel powder protects the aluminum housing from UV exposure and corrosion, and 4mm thick stainless steel bracket is insanely tough.

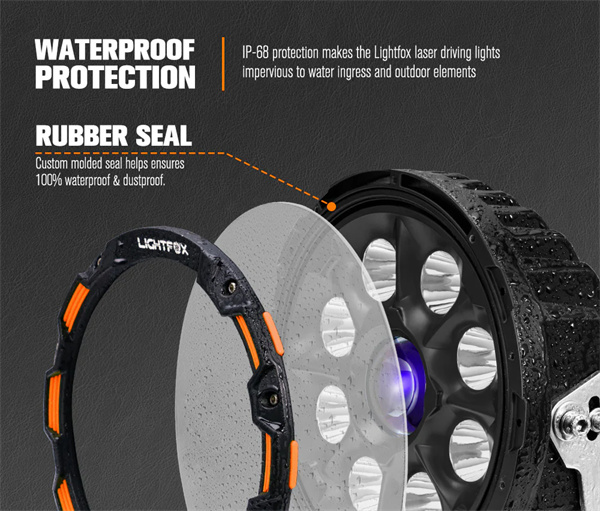

Waterproof Protection: IP-68 protection makes the Lightfox laser driving lights impervious to water ingress and outdoor elements.
Optimally Engineered: Built-in protection of these laser LED driving lights eliminates short circuit and reverse polarity.
Stylish Design: Blacked-out structure for a more refined and subtle look, black and clear covers command attention wherever you go.
Longer Lifespan: Enlarged heat sinks for efficient heat transfer, and a 5-year warranty serves as the quality assurance of these laser LED driving spot lights.
Specifications:
9inch Laser Light
Brand: Lightfox
Light Source: Laser/LED Hybrid
LUX Rating: 1Lux@2,226m
Raw Lumens: 15,046 (pair)
Dimension: 9’’
LED Chip: 10W*16 Osram 5050 (pair)
Laser Chip: Osram Metal Can®
Reflector Distribution: 1 Laser + 8 Spot (single)
Hyperspot Beam: 5°
Spot Beam: 15°
Colour Temperature: 5,700K
Housing Material: Aluminium
Heat Sink: Aluminium
Lens Cover: Strengthened PC
Bracket: Stainless Steel
Sealing Material: UV Resin
Coating: AkzoNobel Powder
Theoretical Output: 224W (pair)
Amp Draw: 15.56A@14.4V (pair)
Relative Light Intensity: 78% (150°C)
Waterproof: IP68 Rating
Expected Lifespan: 50,000 Hours
Operating Environment: -40 - 150°C
Package Dimension: 52 x 41.6 x 12.5cm
Gross Weight: 8.02kg
30inch Dual Row Light Bar
Bulb Type: LED
Chip: 3W* 60 OSRAM OSLON
Theoretical Output: 180W
Housing & Heat Sinks: Aluminum
Lens: Strengthened PC
Coating: AkzoNobel Powder
Sealing Material: UV Resin
Side Bracket: Forged Iron
Bottom Bracket: Aluminum
Raw Lumens: 22,644LM
Lux Rating: 1Lux@612m
Color Temperature: 5,500K
Reflector Distribution: 12 Flood + 36 Spot +12 Flood
Spot Beam: 13°
Flood Beam: 90°
Amp Draw: 9.6A@12V
Expected Lifespan: 50,000 Hours
Relative Light Intensity: 78% (150°C)
Operating Temperature Range: -40°C (-40°F) ~ 150°C (302°F)
Waterproof: IP-68 Rating

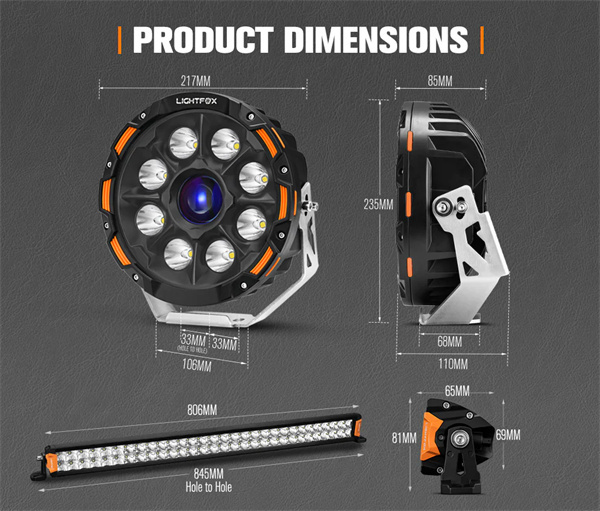

Product Dimension (With Bracket): L83.8 x W6.5 x H8.2 cm
Package Size: 88 x 9.3 x 9.5cm
Gross Weight: 3.2kg

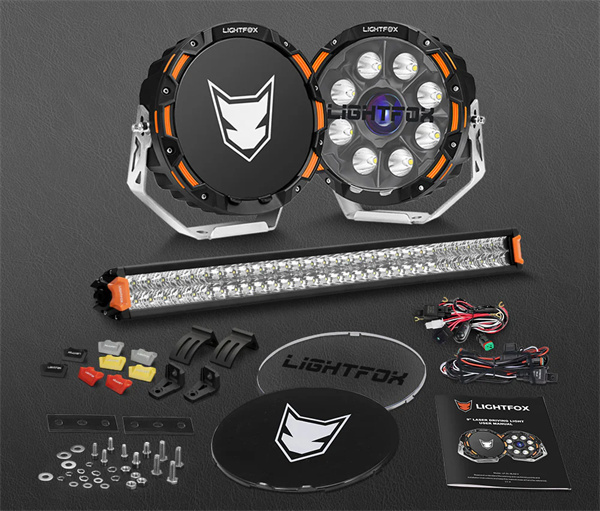

Package Includes:
Pair Lightfox 9" Laser/LED Driving Lights
2 x Clear Protective Covers & 2 x Blackout Protective Covers For Driving Lights
2 x Mounting Brackets For Driving Lights
2 x Rubber Pads For Driving Lights
1 x Lightfox 30" LED Light Bar
2 x Side Mounts & 2 x Bottom Mounts For Light Bar
4 Pairs Colour Caps For Light Bar
2 x Wiring Harness
2 x User Manual
2 Sets Of Mounting Hardware
