LED Light Bar Mini Revolver 10-30V Amber Magnetic Mount 10 Fctn SAE Class 1
$259.95
Sale price
$259.95
Regular price
$546.00
Skip to product information
LED Light Bar Mini Revolver 10-30V Amber Magnetic Mount 10 Fctn SAE Class 1
$259.95
Sale price
$259.95
Regular price
$546.00
SP80RLB402MY
Roadvision LED Light Bar Mini Revolver 10-30V Amber Magnetic Mount 10 Fctn SAE Class 1 CISPR25- 5 Years Warranty
RANGE FEATURES
Low profile 10 function 360° high intensity LED mini light bars
Single, strobe, triple, simulated rotating & combination patterns
Multi-volt 10-30V input & low current draw
48 SMD LED’s produce 40W
100,000 hour rated LED lifespan
Maintenance free solid state technology
Tough polycarbonate lens & housing
Waterproof IP67 rated and vibration proof

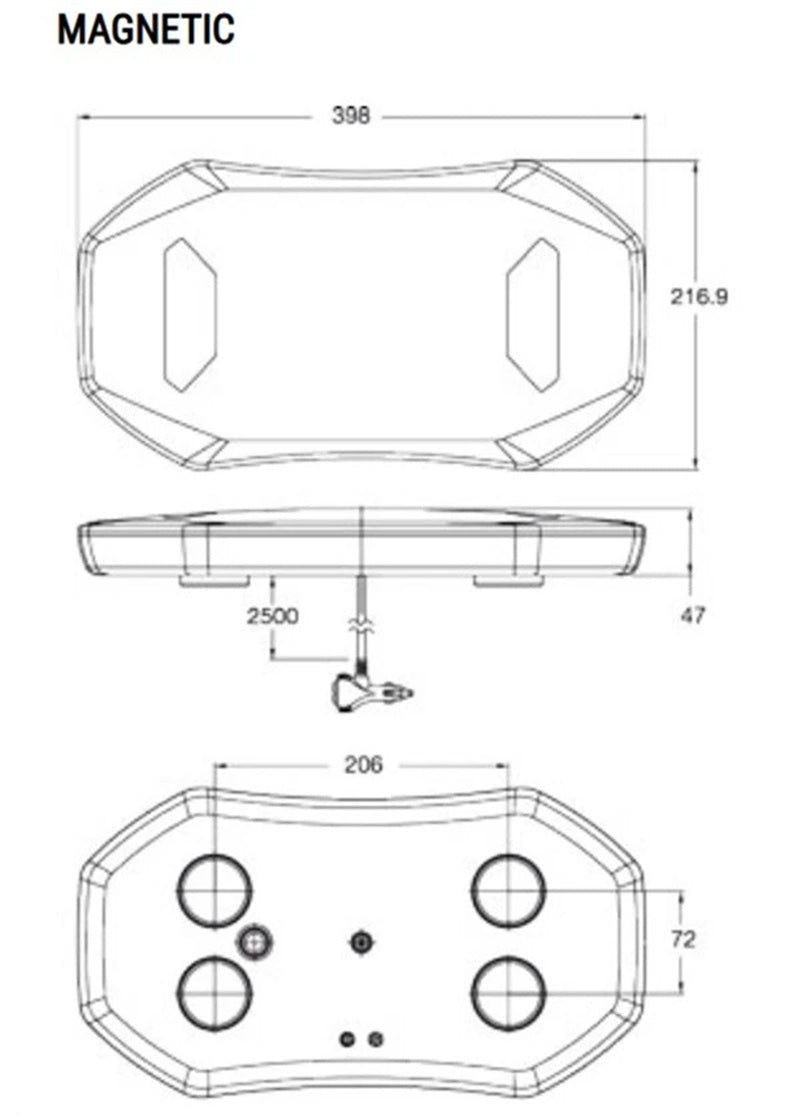

Compact low profile 398 x 217 x 47mm body
Available in fixed or magnetic mounts
EMC, ECE R65/R10 & SAE J845 class 1 approved
SKU: SP80RLB402MY
Flash Patterns
Single Flash (ECE, By day): 480 ms
Single Flash (ECE, By night): 480 ms
Single Flash (CT13): 800 ms
Double Flash: 480 ms
Triple Flash: 480 ms
Clockwise rotation: 800 ms
Single (Left & Right) Half: 480 ms
Triple (Middle) + Triple (Two ends) + Triple (Full) : 2700 ms
LHS & RHS “C” shape: 800 ms
Progressive (Left) + Progressive (Right): 2400 ms

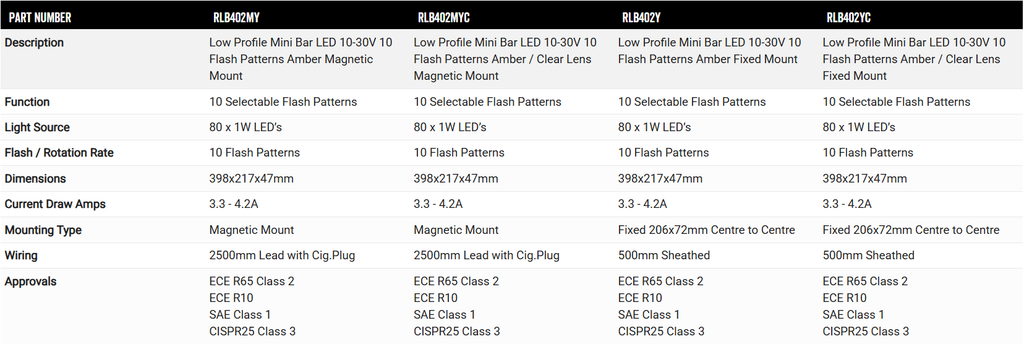

Part Number: RLB402MY
Description
Low Profile Mini Bar LED 10-30V 10 Flash Patterns Amber Magnetic Mount
Function: 10 Selectable Flash Patterns
Light Source 80 x 1W LED’s
Flash / Rotation Rate 10 Flash Patterns
Dimensions 398x217x47mm
Current Draw Amps 3.3 - 4.2A
Mounting Type Magnetic Mount
Wiring 2500mm Lead with Cig.Plug
Approvals ECE R65 Class 2
ECE R10
SAE Class 1
CISPR25 Class 3
