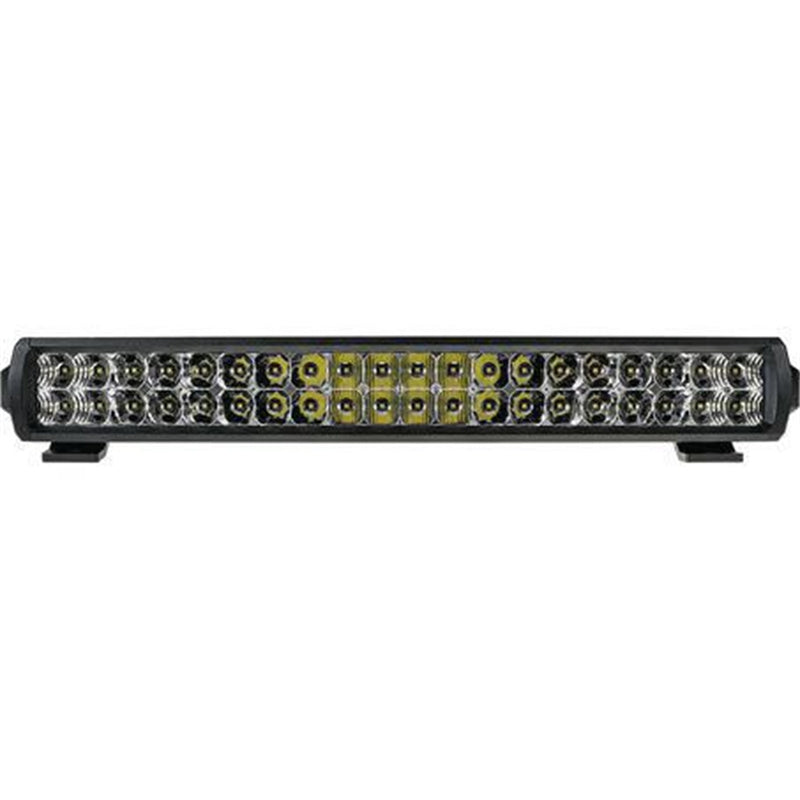

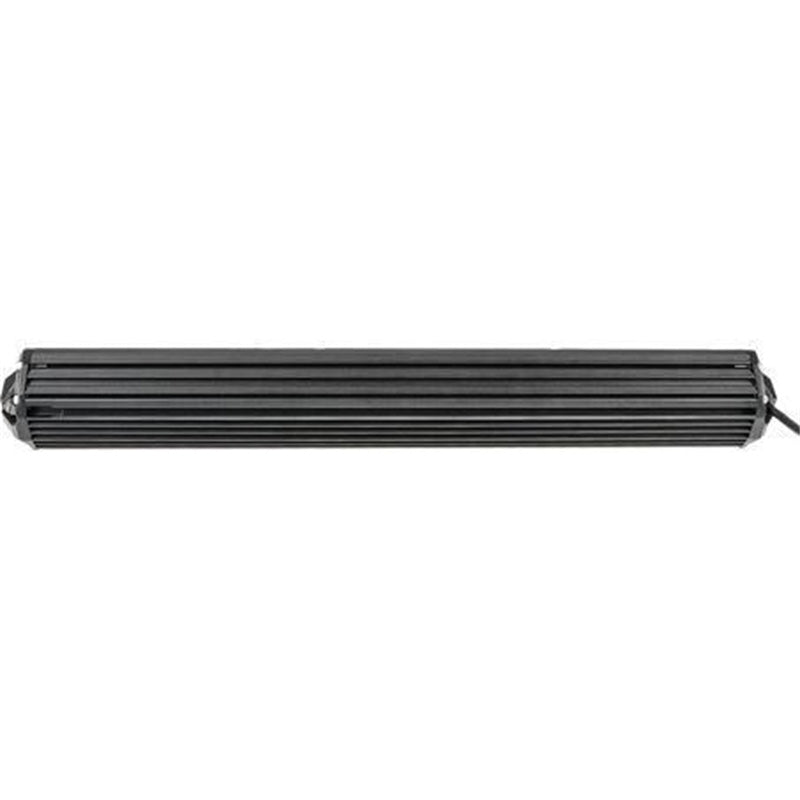

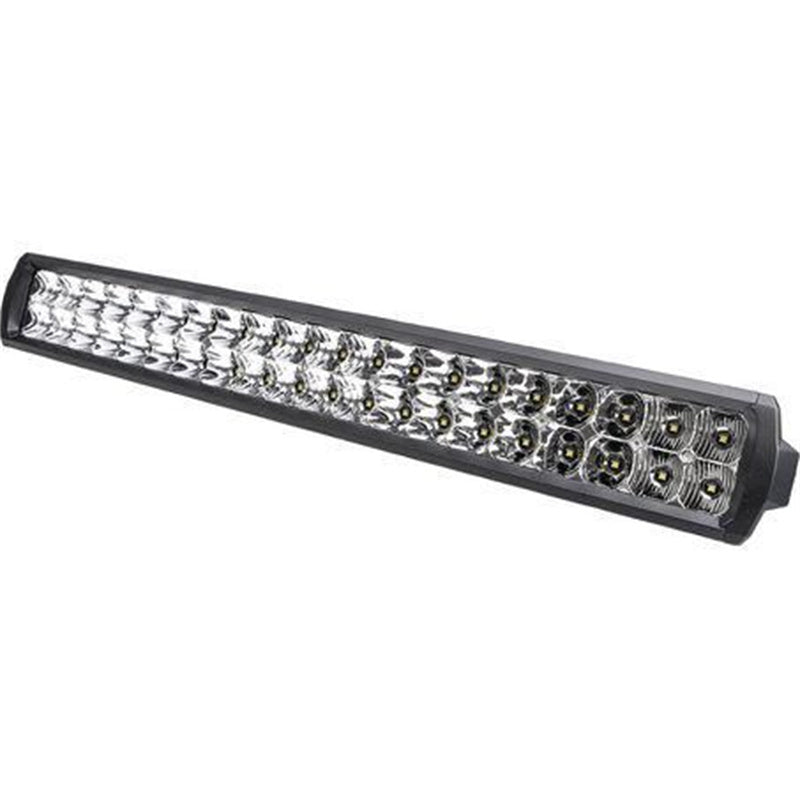

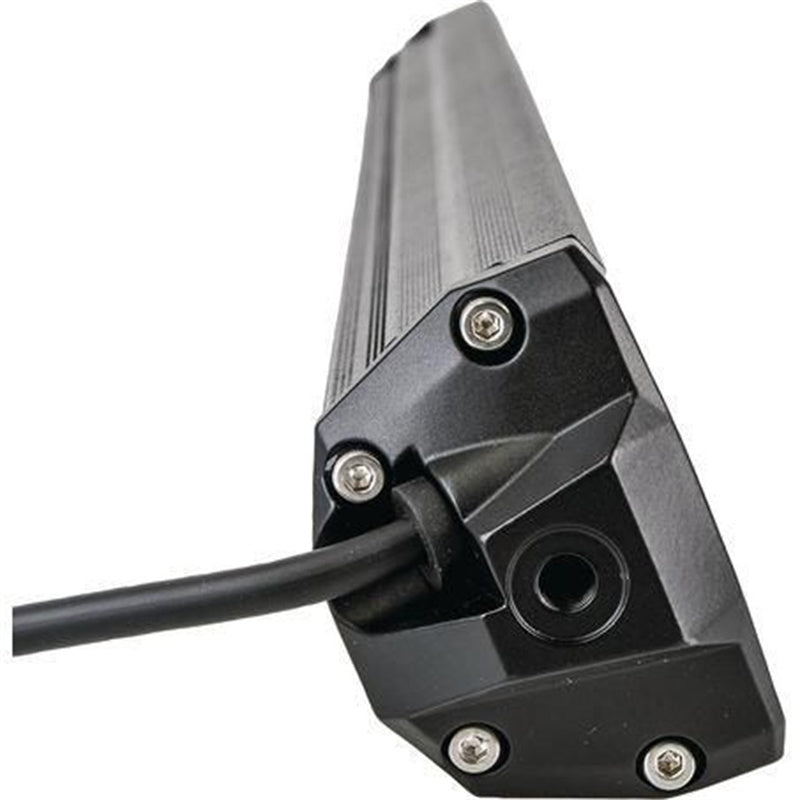

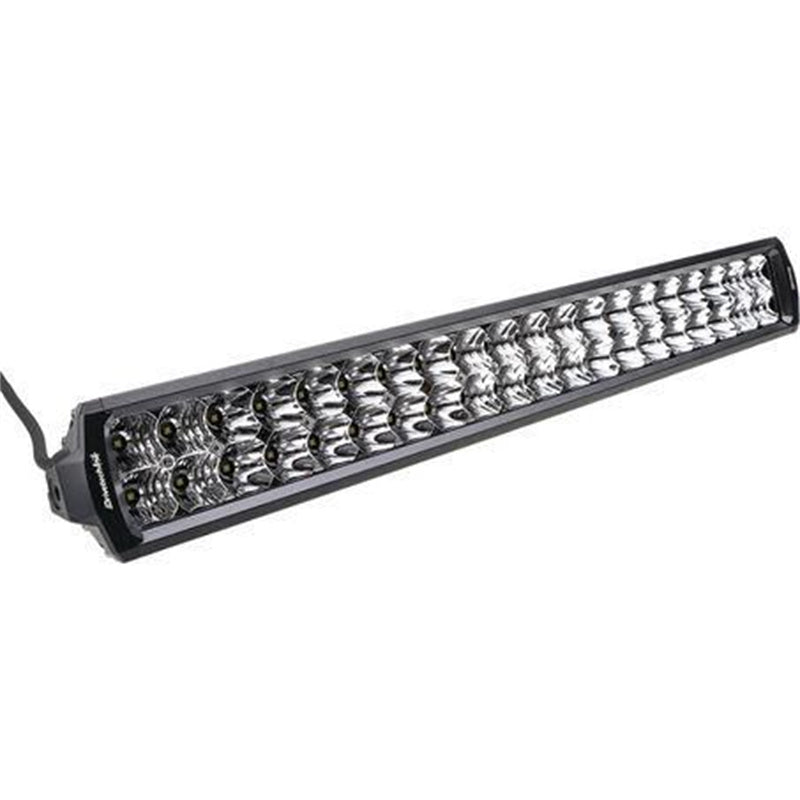

Drivetech 4x4 22 inch 40 LED Dual Row Light Bar 9-36V

Specification:

Part No.    DT-LB140D
Type    BAR LIGHTS
Brand    DRIVETECH 4X4
Unit of Measure    EACH
Description    Drivetech 4x4 22 inch 40 LED Dual Row Light Bar 9-36V
Warranty    Two Years
Length    558mm
Watts    200
Voltage    12/24V
Note    EMC compliant with EN IEC 55015 and EN 61547
Width    49.3mm
Height    72mm
Beam Pattern    Combination
Pack Size    1
Shape    Rectangle
Size    558 x 72.3 x 49.3mmmm
Lens Material    Polycarbonate
Light Output    19040 raw Lumens, 7014 effective Lumens
Current    7.6A @ 13.2V
LEDs    40
Body Material    Aluminium
Mount    Sliding bracket
Connector    DT plug
Environmental    IP68, IP69K
Voltage Rating    9-36
Temp Range    -40° to 145°
Weight    1.46kg
Features    • Multivoltage 9-36V, compatible with 12V & 24V systems
• Combination beam pattern technology for ideal light spread & distance
• Light output: 19,040 Raw Lumens, 7,014 Effective Lumens, 1 Lux at 518m
• IP68/IP69K rated: fully waterproof and dust tight, able to withstand high-pressure washing
• Robust die-cast aluminium housing and polycarbonate lens
• 558L x 72H x 49.3D (mm)
• 2 Year Warranty
