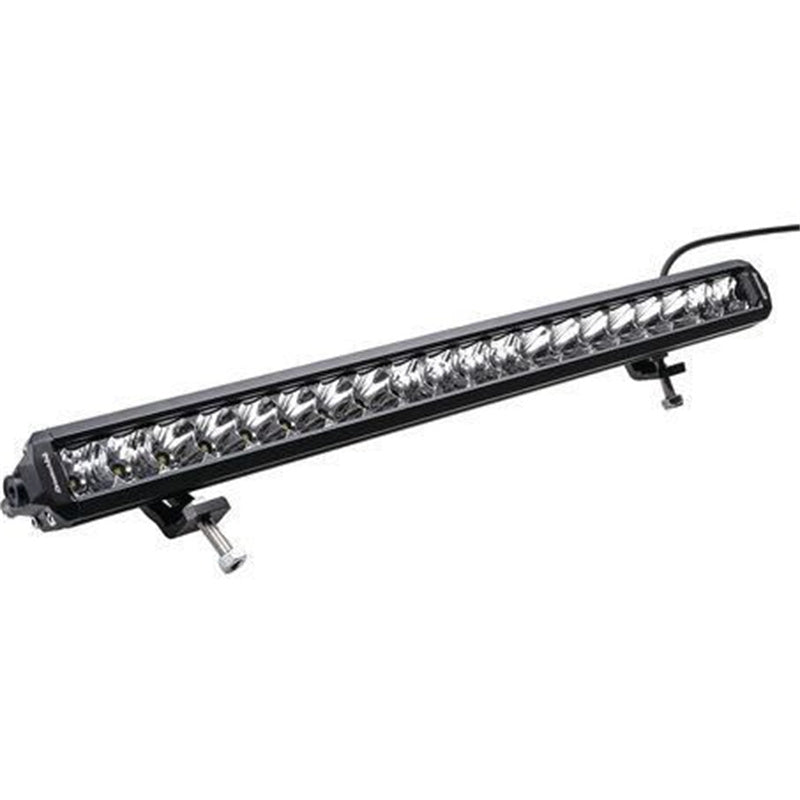

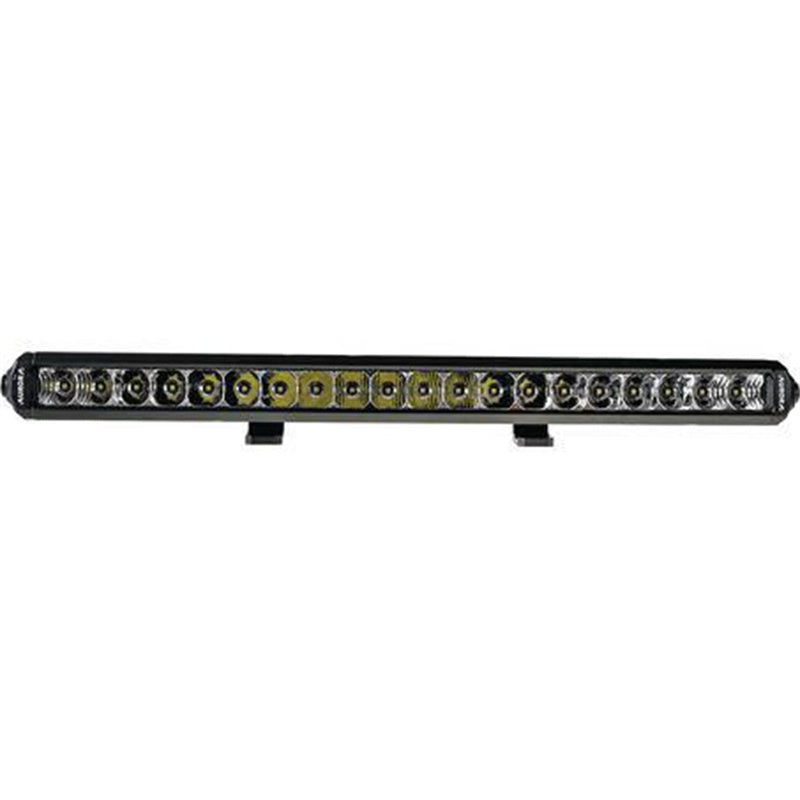

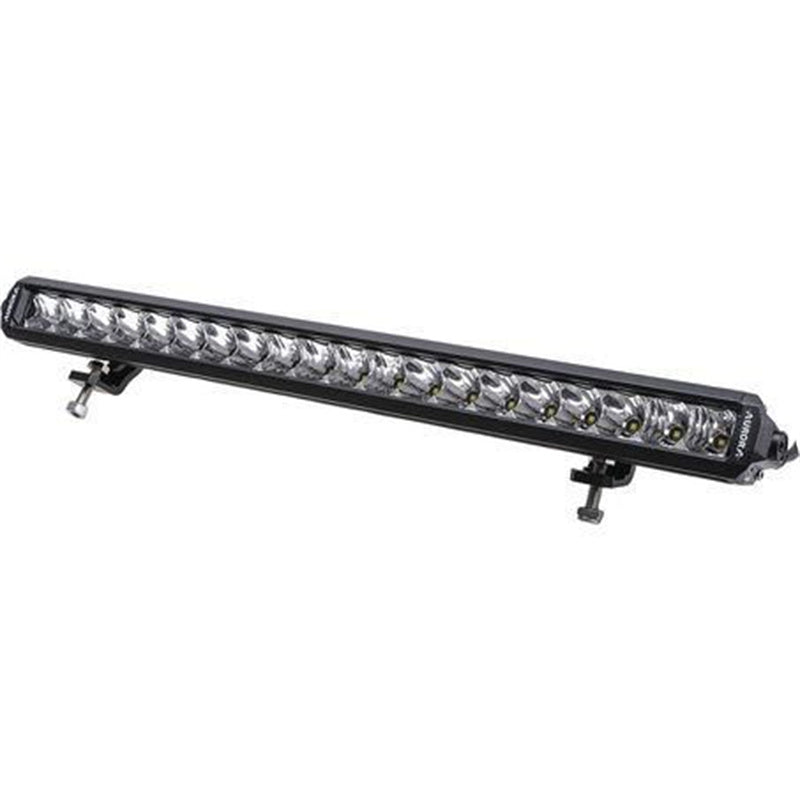

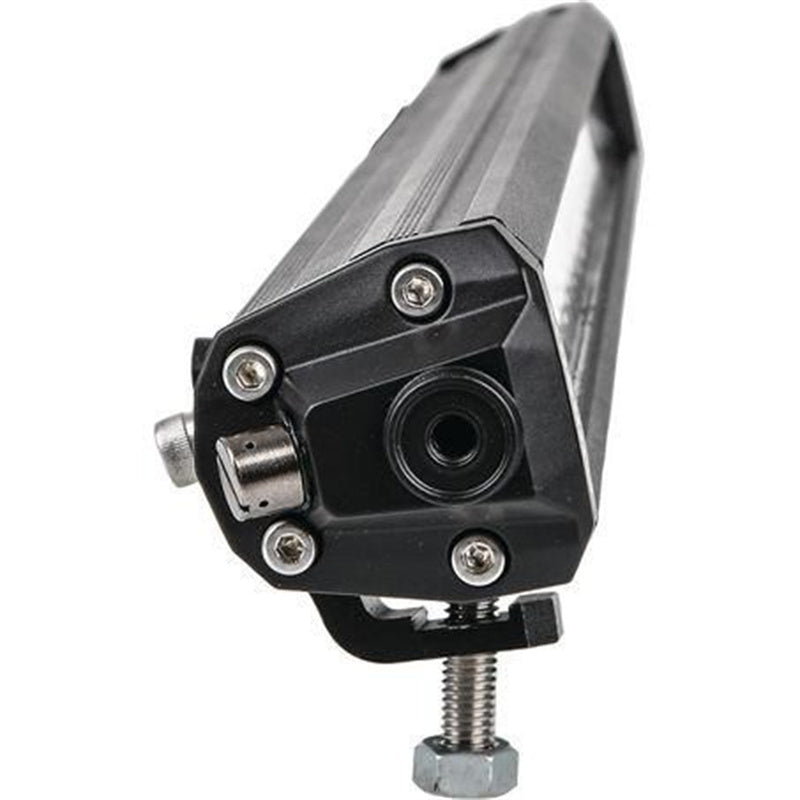

Drivetech 4x4 22 inch 20 LED Single Row Driving Light Bar 9-36V

Specification:
Part No.    DT-LB120
Type    BAR LIGHTS
Brand    DRIVETECH 4X4
Unit of Measure    EACH
Description    Drivetech 4x4 22 inch 20 LED Single Row Driving Light Bar 9-36V
Warranty    Two Years
Length    557.6mm
Watts    100
Voltage    12/24V
Note    EMC compliant with EN IEC 55015 and EN 61547
Width    48.7mm
Height    46mm
Beam Pattern    Combination
Pack Size    1
Shape    Rectangle
Size    557.6 x 46 x 48.7mmmm
Lens Material    Polycarbonate
Light Output    9520 raw Lumens, 5015 effective Lumens
Current    6.6A @ 13.2V
LEDs    20
Body Material    Aluminium
Mount    Sliding bracket
Connector    DT plug
Environmental    IP68, IP69K
Voltage Rating    9-36
Temp Range    -40° to 145°
Weight    1.04kg
Features    • Multivoltage 9-36V, compatible with 12V & 24V systems
• Combination beam pattern technology for ideal light spread & distance
• Light output: 9,520 Raw Lumens, 5,015 Effective Lumens, 1 Lux at 528m
• IP68/IP69K rated: fully waterproof and dust tight, able to withstand high-pressure washing
• Robust die-cast aluminium housing and polycarbonate lens
• 558L x 46H x 48.7D (mm)
• 2 Year Warranty
