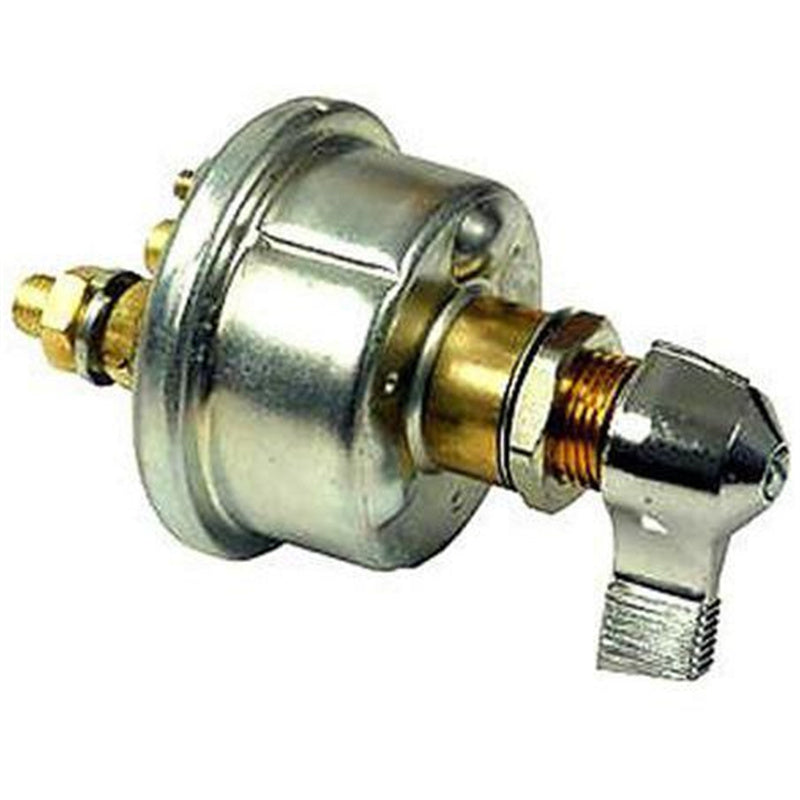

Cole Hersee Battery Master Switch DPST Isolation Switch On/Off

 Cole Hersee Battery Master Switch DPST Isolation Switch On/Off- 1 Year warranty

Specification:
Part No.    75903BX
Type    BATTERY MASTER SWITCH
Brand    COLE HERSEE
Unit of Measure    EACH
Description    Cole Hersee Battery Master Switch Dpst On/Off
Warranty    One Year
Number of Terminals    2
Power Rating [Amp]    125
Switch Action    On - Off - DPST
Voltage    6-36V
Lamp Colour/s    Not Applicable
Mount Diameter    19mm
Mount Length    6mm
Note    Lockout options include ACX3417BL, 24505-01BL, 24505-01RBL or 24505-01YBL
Number of Poles    1
Number of Positions    2
Switch Type    Battery Master / Isolation
Switch Illumination    Non Illuminated
Features    • 6V - 36V multivoltage
• 125A continuous, small contact 20A
• 1000A intermittent
• DPST On / Off
• Battery and field master switching
• 2 x battery stud 3/8"-24
• 2 x field stud 10-32
• Mounting stem 3/4"-24 thread, L 13mm
• Suits panel thickness to 6.5mm
• Copper contacts, chrome lever
• Weather resistant
• Indexing pin: No
• Application: Heavy duty, mining
• Dimensions: H 110 x Ø 67mm
• Lockout use 24505-01BL, 24505-01RBL, 24505-01YBL or ACX3417BL
