Roadvision 9" LED Driving Light 10-30V Stealth 34x3W 142W 10485lm IP69K Spot Beam + Dynamic DRL- 7 Y Warranty
Range Features:
Price is for one piece
Stealth PRO Series 7″ and 9” Driving Light
Dynamic start-up DRL

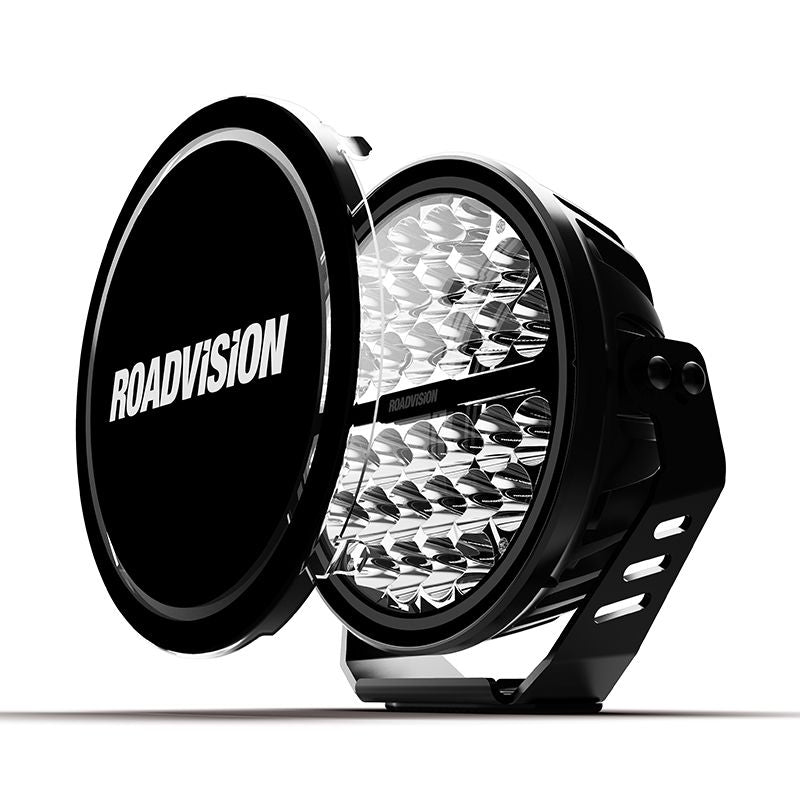

Includes Black cover with DRL windows
Blackout mounting hardware
3W Osram LED’s produce super white light close to daylight
Multi-volt 10-30V DC input & low current draw
50,000 hour LED lifespan with solid state technology
Thermal Management Technology
Light weight tough die-cast aluminium housing & polycarbonate lens
IP68 & IP69K protection
Simple 2 wire installation
Over/under voltage, reverse polarity protection
EMI/EMC radio interference approved

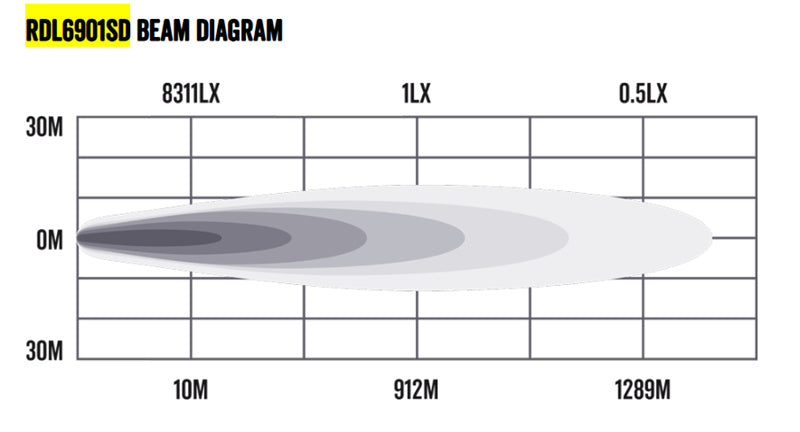

Maximum Lux @ 10m per Light (pair) 8,311lx (16,622lx)
Maximum Beam Distance @ 1lx per Light (pair) 912m (1,289m)
Input Voltage 10-30VDC
Maximum Watts 143W
Number of LEDS 34 x 3W Osram
Current Draw @ 13.8V 10.34 Amps
Lens Construction Polycarbonate
Housing Construction Die-Cast Aluminium
Wiring Driving Lights 2 Pin Deutsch Plug
Red - Driving Light +Ve
Black - Driving Light -Ve
Wiring DRL Halo Green Wire +Ve

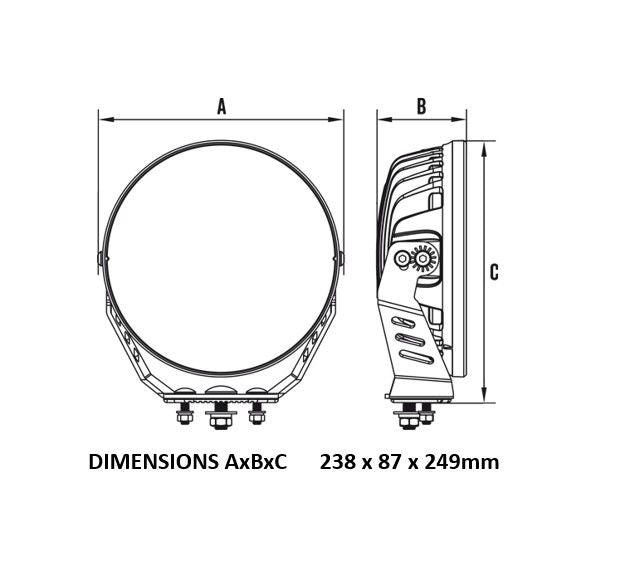

Dimensions AxBxC 238 x 87 x 249mm
