Roadvision BR207K8X5 12V LED Trailer Light Kit 8x5 Plug & Play

Plug-and-play LED lighting for your 8x5 trailer

Upgrade your trailer lighting with the Roadvision BR207K8X5 12V LED trailer light kit. Its LEDLink™ harness system connects with push-and-twist plugs, so you can install the trailer wiring without cutting, crimping, soldering or joining wires.

Mount the lamps, connect the LEDLink™ plugs and secure the harness to the chassis. The rectangular 207-series lamps provide stop, tail, indicator and reflector functions, with licence plate lighting included in the kit.

Key features

• 12V DC operation with low current draw.
• LEDLink™ plug-and-play harness sized for 8x5 trailers.

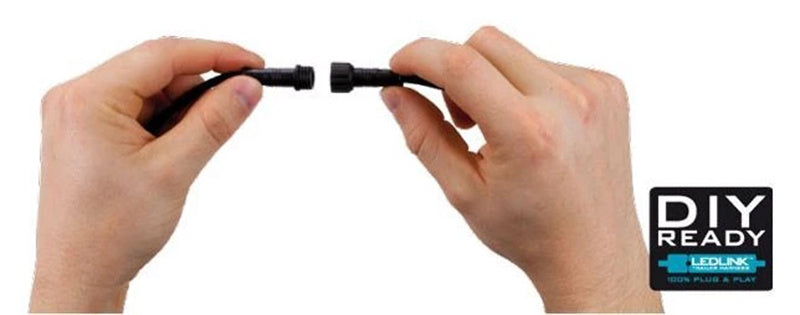

• Secure twist-lock connectors with internal O-ring seals to keep moisture out.
• Polycarbonate lamp housings and lenses.
• Rectangular combination lamps measuring 150 × 80 × 23mm.
• 5-year warranty.

Kit components

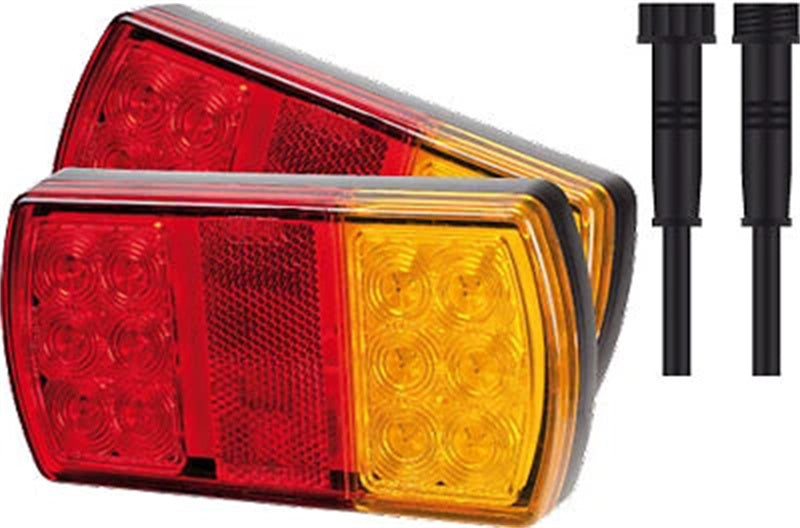

• 207-series rectangular LED combination lamps.
• BR25B licence plate light.

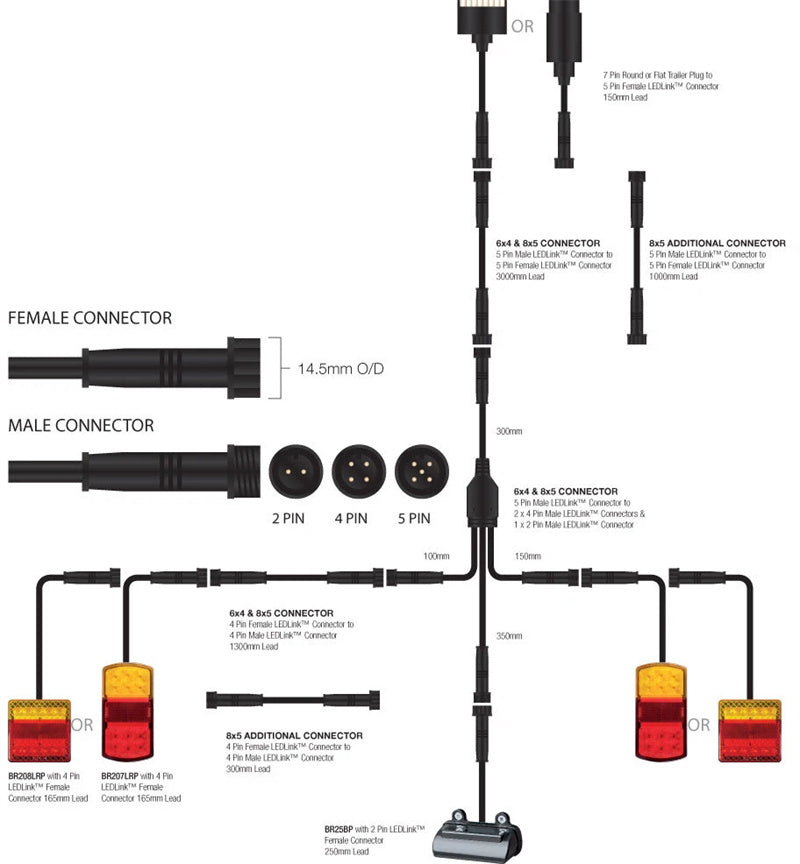

• LEDLink™ harness system for an 8x5 trailer.

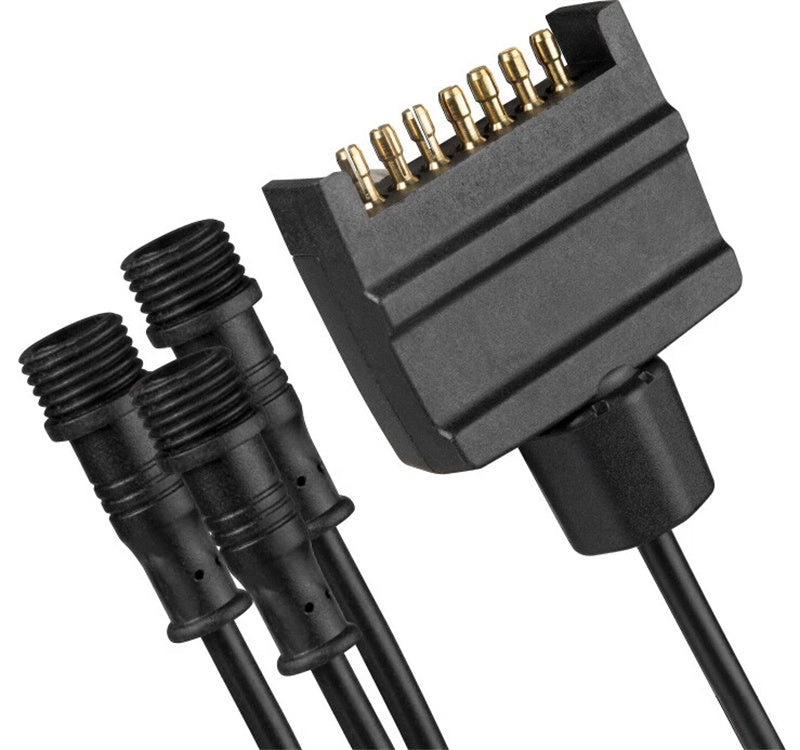

• 7TPF and 7TPR trailer plug components, covering 7-pin flat and round connections.

Check compatibility before ordering

This BR207K8X5 kit is designed for an 8x5 trailer with a 12V DC electrical system. Check the lamp dimensions, mounting centres and trailer connection before ordering.

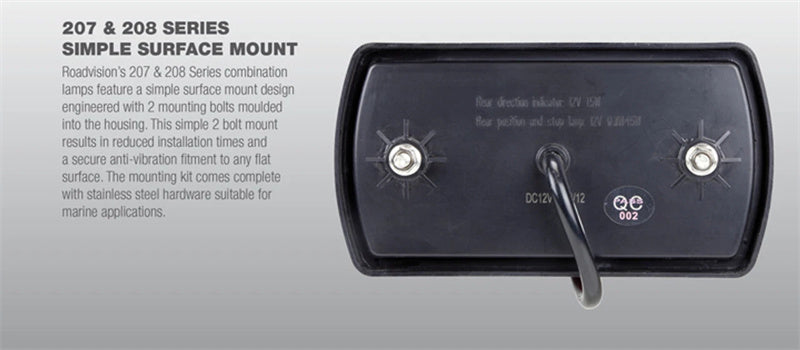

• BR207P combination lamp: 150 × 80 × 23mm; 100mm stud centres.
• BR25BP licence plate lamp: 81 × 41 × 34mm; 45mm mounting centres.

Technical specifications

• Brand: Roadvision
• Part number: BR207K8X5
• Input voltage: 12V DC
• Functions: Stop, tail, indicator, reflector and licence plate illumination
• LEDs: Indicator: 6; stop/tail: 6; licence: 6
• Current draw at 13.8V: Indicator: 0.09A; stop: 0.09A; tail: 0.02A; licence: 0.05A
• Lens and housing: Polycarbonate
• Harness: LEDLink™ system to suit 8x5 trailers

Listed approval references

• Indicator: E4-6R-0115611
• Stop/tail: E4-7R-0215611
• Reflector: E4-3R-0215611
• Licence plate light: CRN 46101
• CTA: CTA-060546
