Roadvision LED Trailer Lamp Kit 6x4 12V Stop/Tail/Ind/Ref/Lic 100x100mm Plug and play

Roadvision LED Trailer Lamp Kit 8x5 12V Stop/Tail/Ind/Ref/Lic 100x100mm Plug & Play Easy Install Light Kit

INSTALLING TRAILER LAMPS HAS NEVER BEEN SO EASY!

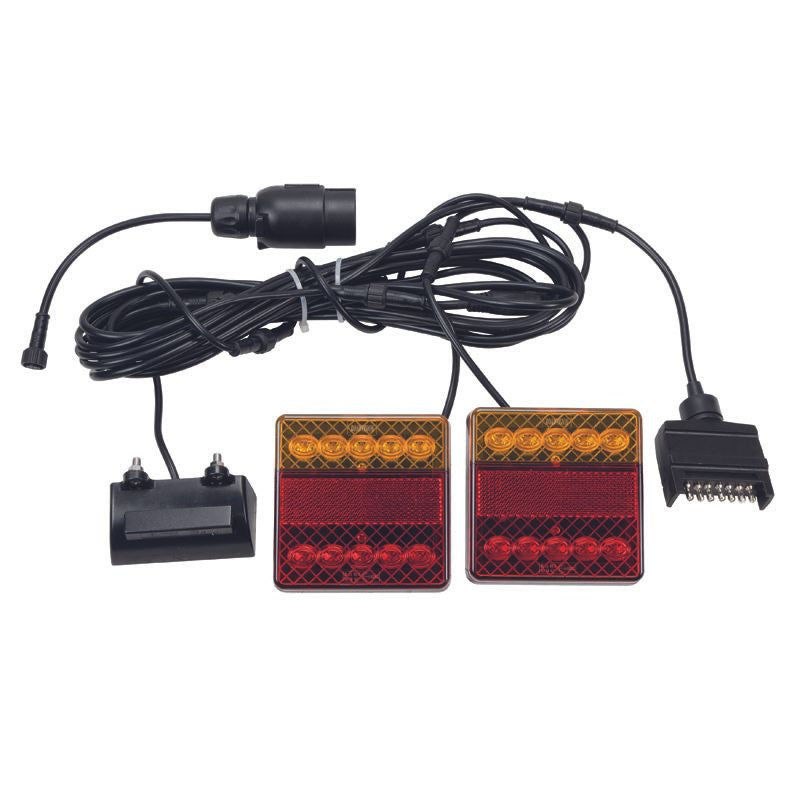

LEDLink™ wiring kits for 6×4 & 8×5 trailers – Using Roadvision’s new LEDLink™ plug and play system, our trailer wiring kits are a complete DIY solution eliminating the need for any cutting, soldering or joining of trailer wiring. Simply mount the lamps, push in and twist the waterproof LEDLink™ connectors, cable tie the harness to the chassis and you’re done. Complete with everything you need… Plug and play wiring harness, pair of rear combination lamps, licence plate lamp and both 7 pin flat or 7 pin large round trailer plugs. Roadvision LEDLink™ trailer kits are simple to install, deliver a perfect installation every time and protect the entire trailer lighting system from corrosion and water ingress. Installing trailer lamps has never been so easy!

RANGE FEATURES

12V input & low current draw
Polycarbonate housing & lens
Easy to install complete DIY plug & play kits
Suitable for the average home handyman
No crimping, soldering or joining of wires
Twist lock plugs provide secure connection
Waterproof with internal O-ring seals
Eliminates harness corrosion from moisture ingress
Available with 207 rect. or 208 square combination lamps
Suitable for 6×4 & 8×5 trailers
7 Pin flat & 7 pin round trailer plug options
ADR / ECE approved
5 Year warranty
ADR/ECE approved for all functions

Part No: BR208K6X4
Description: Combination lamp trailer kit LED 208 series 6x4
Stop/Tail/Ind/Ref/Lic square 100 x 100mm
+ BR25B + 7TPF + 7TPR 6x4 trailer kit with LEDLink™ harness
Voltage Input: 12V DC
Number of LED's:
Indicator - 5 LED’s
Stop/Tail - 5 LED’s
Licence - 6 LED’s
Current Draw Amps：
Ind - 0.09A
S/T - 0.09/0.02A
Dimensions AxBxC:
BR208P - 100 x 100 x 21mm
BR25BP - 81 x 41 x 34mm
Lens Construction: Polycarbonate
Housing Construction : Polycarbonate
Mounting Hole /Cut Out:
BR208P - 70mm Stud Centres
BR25BP - 45mm Centres
Cable Length:LEDLink™ Harness System Suit 6x4 Trailers
ADR Approval :Ind - E4-6R-0116003
S/T - E4-7R-0216003
Ref - E4-3R-0216003
Lic - CRN 46101
CTA Approval : CTA-060548
