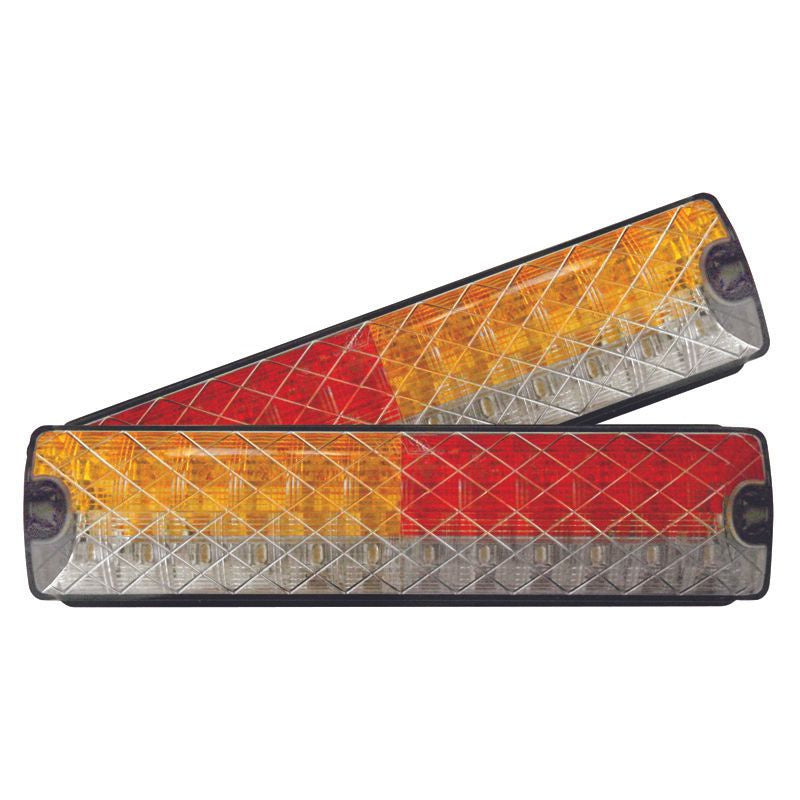

Roadvision LED Rear Combination Lamp Kit 10-30V Stop/Tail/Ind /Rev Surface Mount 195x50mm

Roadvision LED Rear Combination Lamp Kit 10-30V Stop/Tail/Ind /Rev Surface Mount 195x50mm - 5 Years warranty

Features:

Compact slimline LED combination lamp
Multi-volt 10-30V DC input & low current draw
Brighter than conventional incandescent systems
100,000 hour LED life span with solid state technology
Maintenance free
Sealed polycarbonate lens & housing
Water and dust proof
Supplied pre-wired with 300mm LEDLink Connector
Available in twin pack with integrated reverse function
Simple surface mount design
ADR/ECE approved for all functions

Description    Rect Strip Stop/Tail/Ind/Rev Twin Pack
Functions    Stop/Tail Indicator & Reverse
Voltage Input    10-30V DC
Number of LED's    Indicator - 6 LED's
Stop/Tail - 6 LED's
Reverse - 12 LED's
Current Draw Amps    Ind - 0.05A @ 13.8V
S/T - 0.05/0.05A @ 13.8V
Rev - 0.1A@ 13.8V

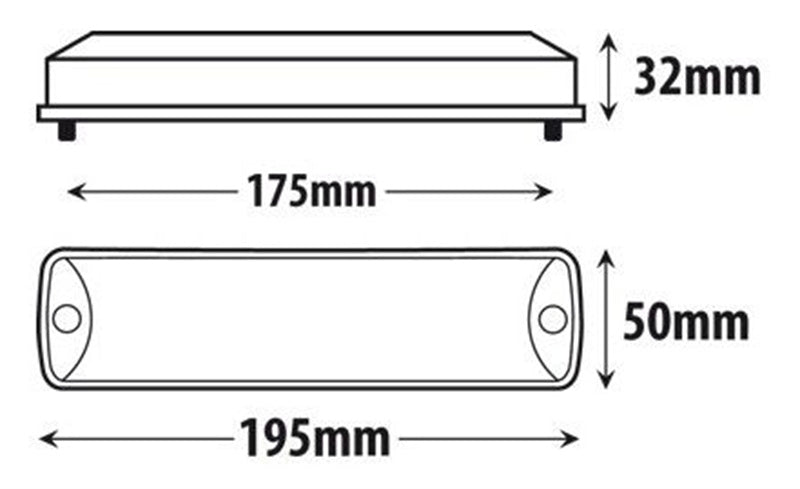

Dimensions AxBxC    195x50x32mm
Lens Construction    Polycarbonate
Housing Construction    Polycarbonate
Mounting Hole Centre    175mm
Cable Length    300mm Tinned Copper
LEDLink Connector
Wiring Colour Codes    Earth - White
Stop - Red
Rail - Brown
Indicator - Green or Yellow
Reverse - Black
ADR Approval    Ind - E4-6R-0115710
S/T - E4-7R-0215710
Rev - E4-23R-0015710
CTA Approval    CTA-060547
