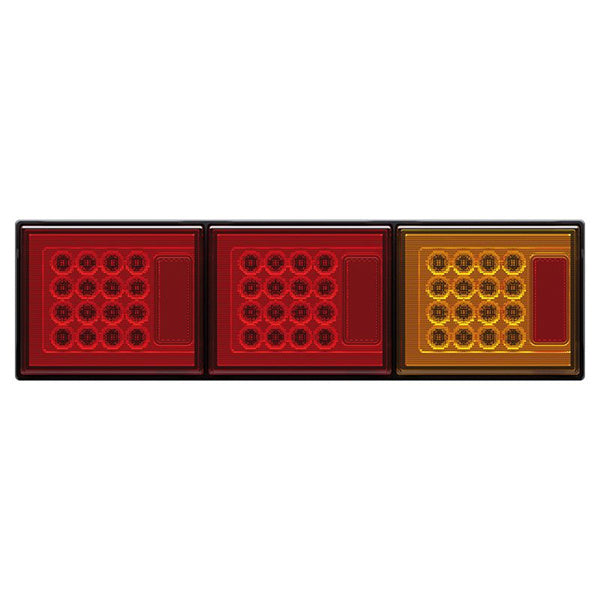

Roadvision LED Rear Combination Lamp 10-30V Stop/Tail x 2/Indicator Triple Surface Mount 460x130mm

Stop/Tail Indicator or Stop/Tail Indicator & Reverse functions
Integrated Retro Reflectors
Multi-volt 10-30V DC input & low current draw
100,000HR rated LED lifespan with solid state technology
Simple surface mount design
ADR approved for all functions
Light weight tough polycarbonate housing & lens.

Part NO:BR502ARR

Description:

 LED Rear Combination Lamp 10-30V Stop/Tail x 2/Indicator Triple Surface Mount 460x130x33mm

Input Voltage 10-30 VDC

Number of LEDS Indicator - 16 LEDs

Stop/Tail - 32 LEDs

Current Draw @ 13.8V Ind - 0.11A

Stop - 0.23A

Tail - 0.04A @ 13.8V

Lens Construction Polycarbonate

Housing Construction High Impact ABS

Mounting Hole Centres 280mm

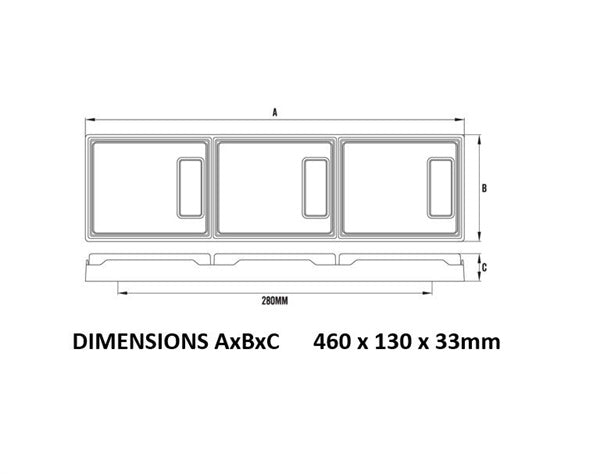

Overall Dimensions 460 x 130 x 33mm

Cable Length 300mm Tinned Copper

CTA Approval ADR Approved for all functions

Wiring Earth - White

Stop - Red

Tail - Brown

Indicator - Yellow
