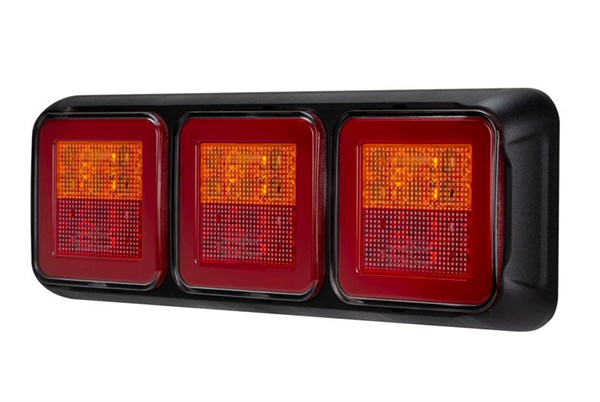

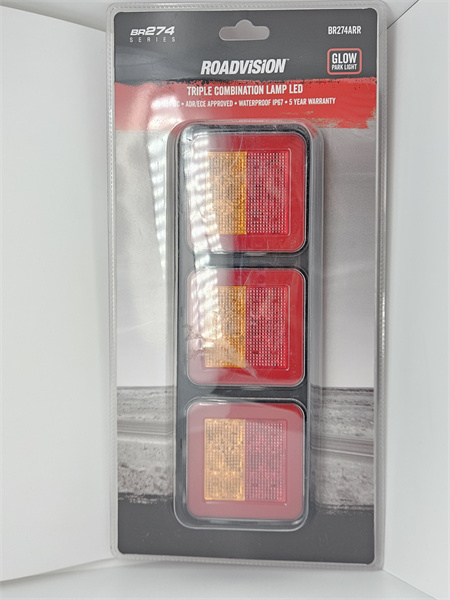

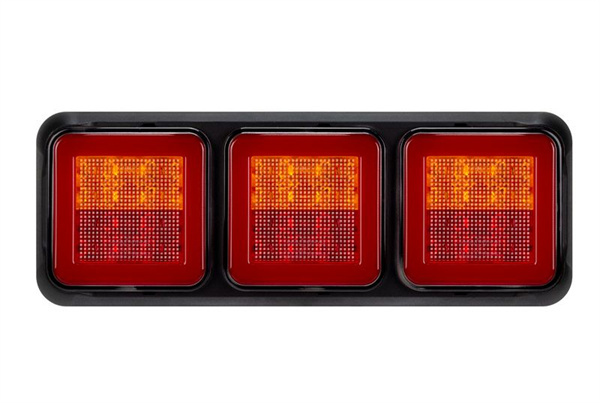

Roadvision LED Rear Combination Lamp 10-30V Stop/Tail/Ind x3 Glow Park 274x100mm

SKU: SP70BR274ARR
5.0 (3)
86 Sold
AU$99.95 AU$145.13
ROADVISION’s BR274 Series triple combination trailer lamps are the complete all-in-one fit and forget solution. Featuring Stop, Tail, Indicator & Reverse
functionality, these super bright LED combination lamps deliver the durability of maintenance free LED technology and greater visibility for increased safety. The
BR274 Series combination lamps produce more light output than incandescent lamps, whilst drawing a fraction of the current. Couple this with unbreakable
polycarbonate lenses and an extremely tough housing manufactured from high impact ABS, these lamps are weather resistant and totally maintenance free,
with a life span rated at 100,000 hours. With ROADVISION it’s FIT and FORGET.
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity:
  • Roadvision LED Rear Combination Lamp 10-30V Stop/Tail/Ind x3 Glow Park 274x100mm
  • Roadvision LED Rear Combination Lamp 10-30V Stop/Tail/Ind x3 Glow Park 274x100mm
  • Roadvision LED Rear Combination Lamp 10-30V Stop/Tail/Ind x3 Glow Park 274x100mm
  • Roadvision LED Rear Combination Lamp 10-30V Stop/Tail/Ind x3 Glow Park 274x100mm
  • Roadvision LED Rear Combination Lamp 10-30V Stop/Tail/Ind x3 Glow Park 274x100mm
  • Roadvision LED Rear Combination Lamp 10-30V Stop/Tail/Ind x3 Glow Park 274x100mm
  • Roadvision LED Rear Combination Lamp 10-30V Stop/Tail/Ind x3 Glow Park 274x100mm
  • Roadvision LED Rear Combination Lamp 10-30V Stop/Tail/Ind x3 Glow Park 274x100mm
  • Roadvision LED Rear Combination Lamp 10-30V Stop/Tail/Ind x3 Glow Park 274x100mm
  • Roadvision LED Rear Combination Lamp 10-30V Stop/Tail/Ind x3 Glow Park 274x100mm
1/1
  • Roadvision LED Rear Combination Lamp 10-30V Stop/Tail/Ind x3 Glow Park 274x100mm
  • Roadvision LED Rear Combination Lamp 10-30V Stop/Tail/Ind x3 Glow Park 274x100mm
  • Roadvision LED Rear Combination Lamp 10-30V Stop/Tail/Ind x3 Glow Park 274x100mm
  • Roadvision LED Rear Combination Lamp 10-30V Stop/Tail/Ind x3 Glow Park 274x100mm
  • Roadvision LED Rear Combination Lamp 10-30V Stop/Tail/Ind x3 Glow Park 274x100mm
  • Description
Roadvision LED Rear Combination Lamp 10-30V Stop/Tail/Ind x3 Glow Park 274x100mm

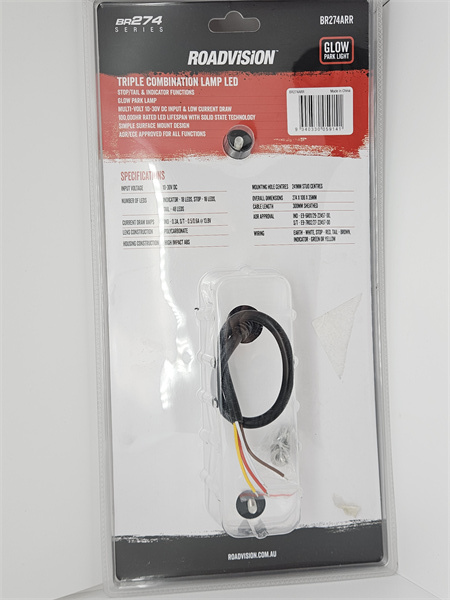

SPECIFICATIONS  BR274ARR
Input Voltage 10-30 VDC
Number of LEDS
84 LEDs: Indicator - 18 LEDs,
Stop - 18 LEDs
Tail - 48 LEDs
Current Draw @ 13.8V
Ind - 0.3A, S/T - 0.5/0.6A, @ 13.8V
LENS CONSTRUCTION Polycarbonate
Housing Construction High Impact
MOUNTING HOLE CENTRES 241mm Stud Centres

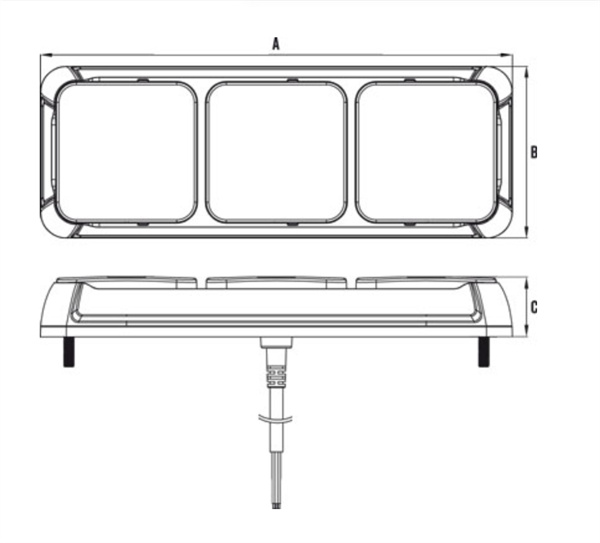

Dimensions AxBxC 274 x 100 x 35mm
CABLE LENGTH  300mm Sheathed
ADR APPROVAL
Ind - E9-6R01/29-22457-00,
Stop/Tail - E9-7R02/27-22457-00
WIRING
Earth - White,
Stop - Red,
Tail - Brown,
Indicator - Green or Yellow
trailer tail lights
