Roadvision LED Rear Combination Lamp 10-30V Stop/Tail/Ind/Ref Surface Mount 122m
$64.95
Sale price
$64.95
Regular price
SP80BR122ARR

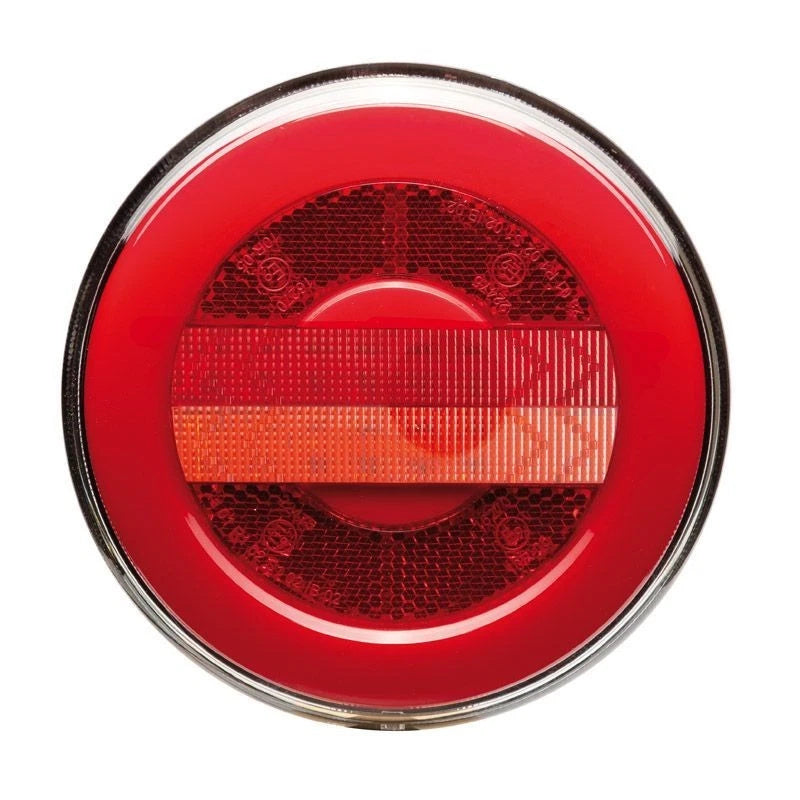

Roadvision LED Rear Combination Lamp 10-30V Stop/Tail/Ind/Ref Surface Mount 122mm Glow Tech - 5 Years Warranty
RANGE FEATURES
Multi-volt 10-30V DC input & low current draw
Glow Tech tail light
100,000 hour LED life span with solid state technology
Maintenance free
High impact ABS housing and PMMA lens
Water and dust proof
Pre-wired with 300mm of sheathed tinned copper cable
Simple surface mount design
ADR/ECE approved for all functions
Part Number BR122ARR
Input Voltage 10-30 VDC
Number of LEDS Indicator - 8 LEDs
Stop - 8 LEDs
Tail - 20 LEDs
Current Draw @ 13.8V Ind - 0.1A, S/T - 0.2/0.15A @ 13.8V
Lens Construction PMMA
Housing Construction High Impact ABS
Mounting Hole Centres 45mm Stud Centres

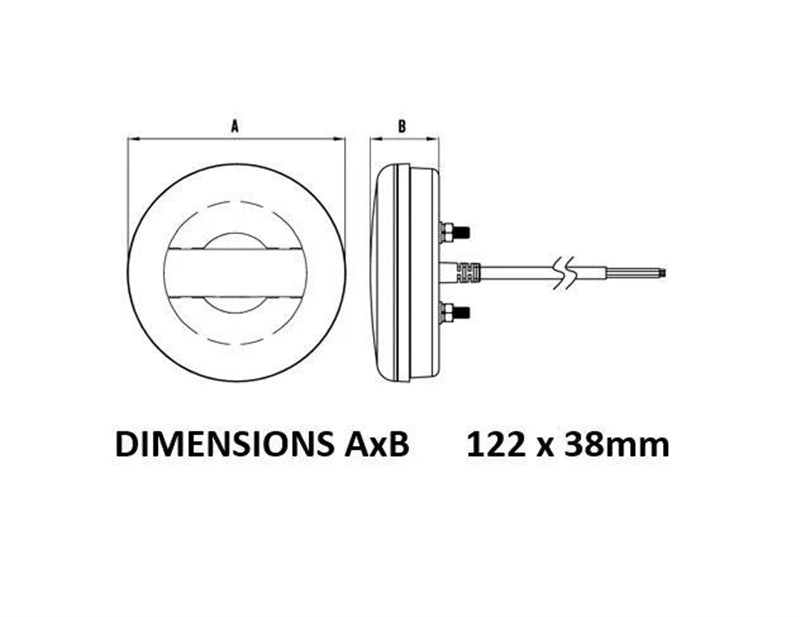

Dimensions AxB 122 x 38mm
Cable Length 250mm Sheathed
ADR Approval S/T - E9*7R02/27*22475*00
Ind - E9*6R01/28*22475*00
E9*3R02/17*22475*00
Wiring Earth - White
Stop - Red
Tail - Brown
Indicator - Yellow
CTA Approval CTA-060692
