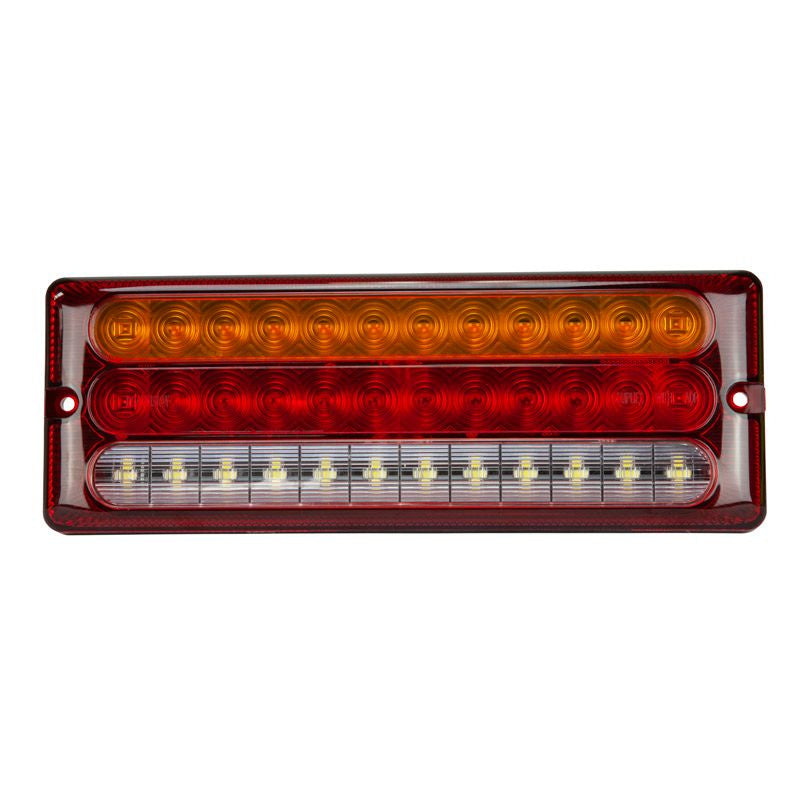

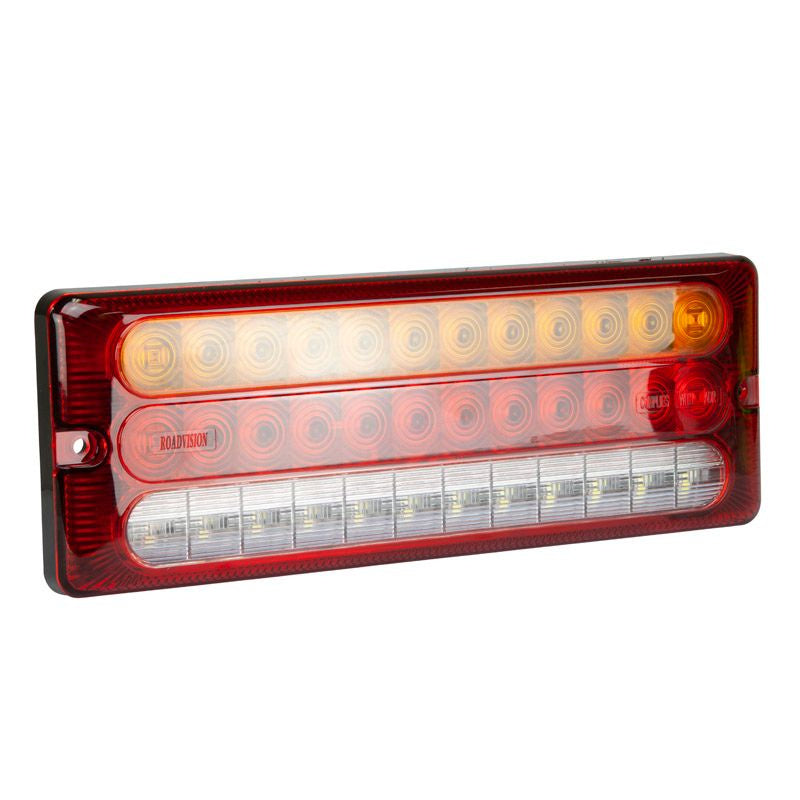

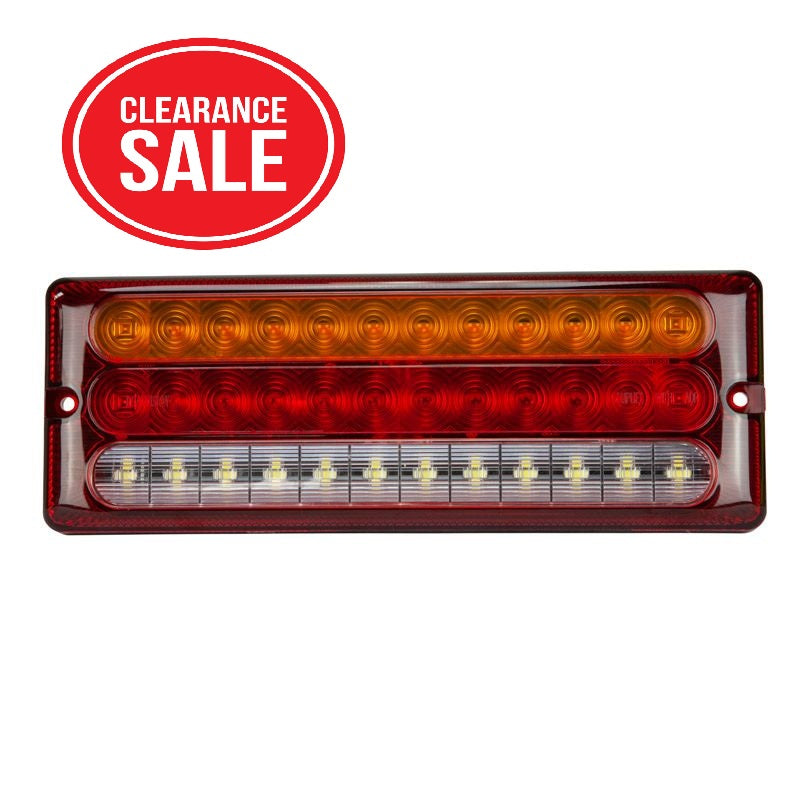

Roadvision LED Rear Combination Lamp 10-30V Stop/Tail/Ind/Rev Surface Mnt 275x100mm
$89.95
Sale price
$89.95
Regular price
$159.00
Skip to product information
Description Rect Stop/Tail/Ind/Rev Combination Lamp Triple Module
Functions Stop/Tail/Indicator/Reverse
Voltage Input 12V DC
Number of LED's Stop/Tail - 12 LED's
Indicator - 12 LED's
Reverse - 12 LED's
Current Draw Amps Ind - 0.1A
S/T - 0.1/0.05A
Rev - 0.2A @ 13.8V

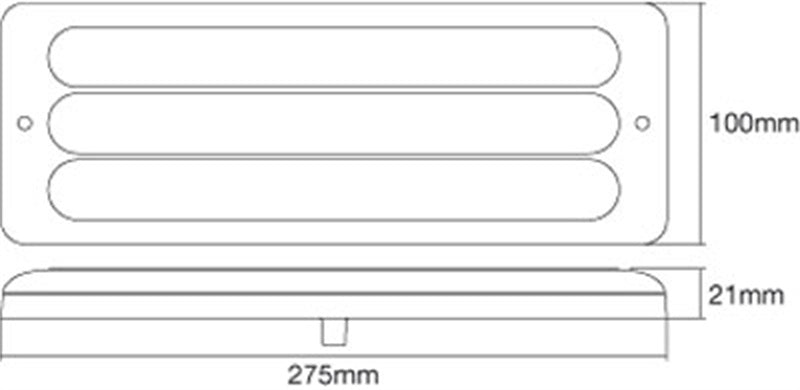

Dimensions AxBxC 275x100x21mm
Lens Construction Polycarbonate
Housing Construction Polycarbonate
Mounting Hole /Cut Out 255mm Hole Centres
Cable Length 300mm LEDLink Connector
ADR Approval Ind - CRN 49279
Stop - CRN 49285
Tail - CRN 49289
Rev - CRN 49280
CTA Approval CTA-061011
Roadvision LED Rear Combination Lamp 10-30V Stop/Tail/Ind/Rev Surface Mnt 275x100mm
$89.95
Sale price
$89.95
Regular price
$159.00
SP80BR275ARW
Roadvision LED Rear Combination Lamp 10-30V Stop/Tail/Ind/Rev Surface Mnt 275x100mm - 5 Years Warranty
FEATURES
Multi-volt 10-30V DC input & low current draw
Brighter than conventional incandescent systems
100,000 hour LED life span with solid state technology
Maintenance free
Sealed polycarbonate lens & housing
Water and dust proof
Supplied pre-wired with 300mm LEDLink Connector
Super thin 21mm housing
Simple surface mount designs
ADR/ECE approved for all functions
Part Number BR275ARW
Description Rect Stop/Tail/Ind/Rev Combination Lamp Triple Module
Functions Stop/Tail/Indicator/Reverse
Voltage Input 12V DC
Number of LED's Stop/Tail - 12 LED's
Indicator - 12 LED's
Reverse - 12 LED's
Current Draw Amps Ind - 0.1A
S/T - 0.1/0.05A
Rev - 0.2A @ 13.8V
Dimensions AxBxC 275x100x21mm
Lens Construction Polycarbonate
Housing Construction Polycarbonate
Mounting Hole /Cut Out 255mm Hole Centres
Cable Length 300mm LEDLink Connector
ADR Approval Ind - CRN 49279
Stop - CRN 49285
Tail - CRN 49289
Rev - CRN 49280
CTA Approval CTA-061011
