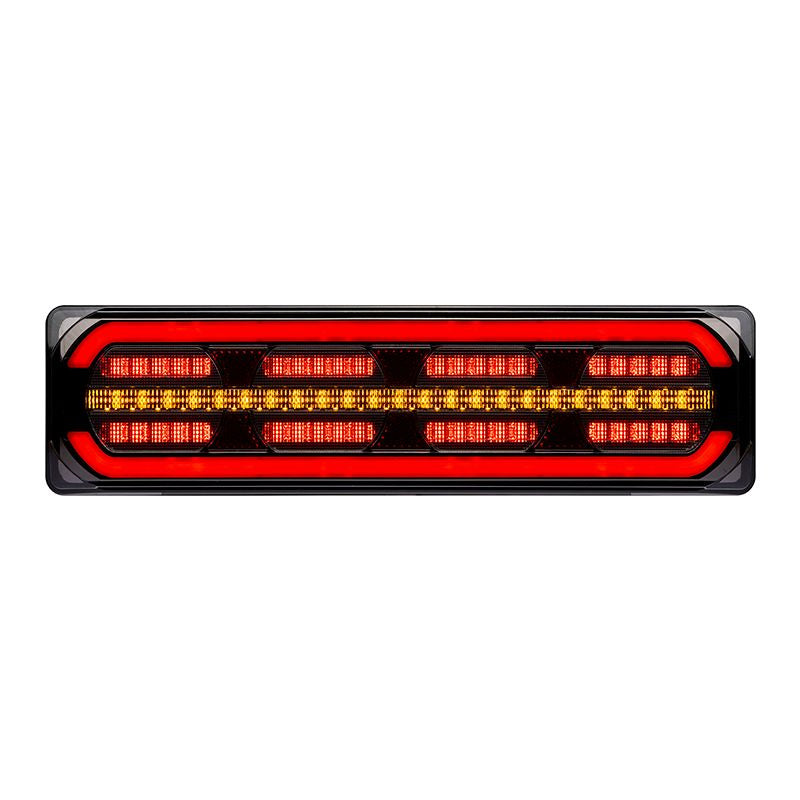

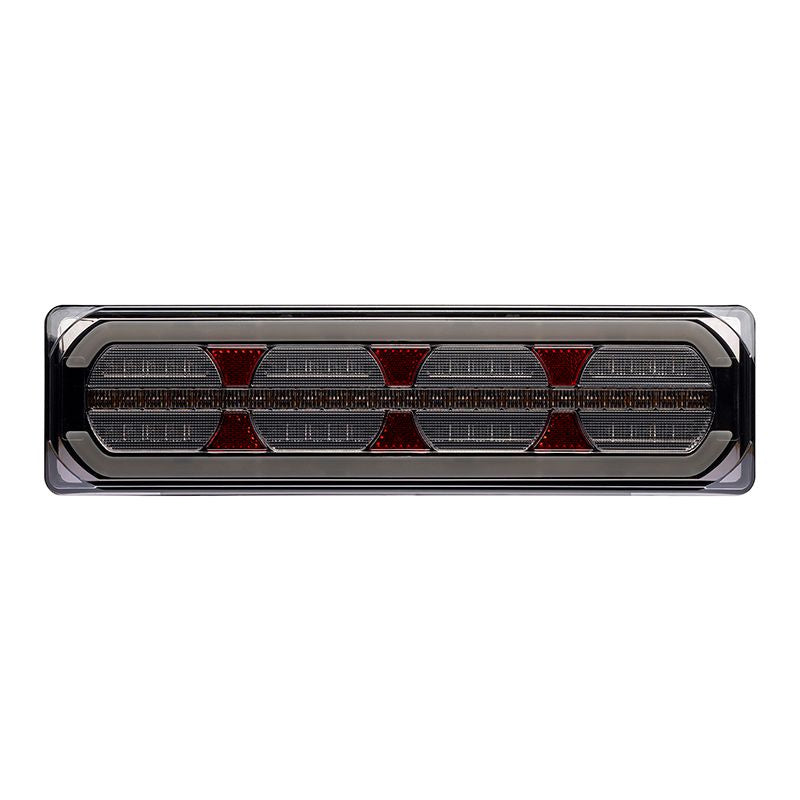

Roadvision LED Rear Combination Lamp 10-30V Stop/Tail/Ind/Ref Glowtech Tail 390x105x39mm
$176.95
Sale price
$176.95
Regular price
Skip to product information
Part Number BR392ARR
Description LED Rear Combination Lamp 10-30V Stop/Tail/Ind/Ref Glowtech Tail 390x105x39mm
Input Voltage 10-30 VDC
Number of LEDS Indicator - 24 LEDs
Stop - 40 LEDs
Tail - 54 LEDs
Current Draw @ 13.8V Ind - 0.37A
Stop - 0.27A
Tail - 0.18A @ 13.8V
Lens Construction Polycarbonate
Housing Construction Polycarbonate
Mounting Hole Centres 185-225mm

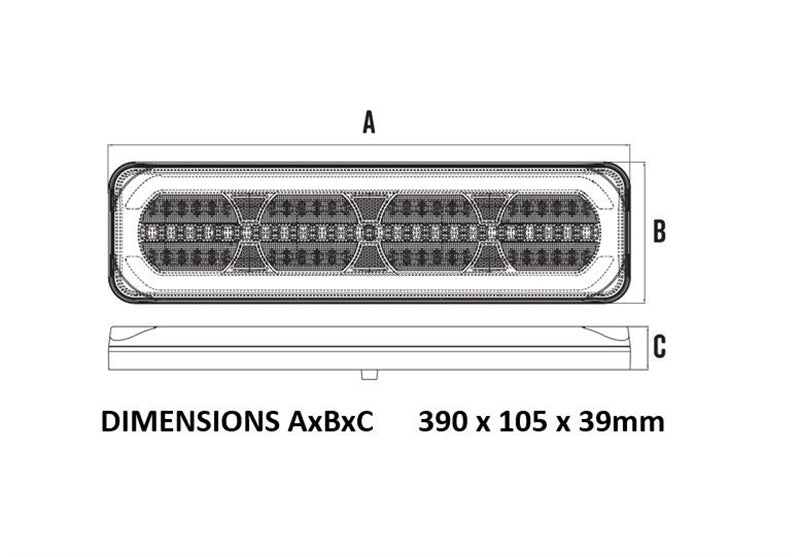

Overall Dimensions 390 x 105 x 39mm
Cable Length 300mm Tinned Copper
CTA Approval CTA-061826
Wiring Earth - White
Stop - Red
Tail - Brown
Indicator Left - Yellow
Indicator Right - Green
Roadvision LED Rear Combination Lamp 10-30V Stop/Tail/Ind/Ref Glowtech Tail 390x105x39mm
$176.95
Sale price
$176.95
Regular price
SP70BR392ARR
Roadvision LED Rear Combination Lamp 10-30V Stop/Tail/Ind/Ref Glowtech Tail 390x105x39mm - 5 Years Warranty
FEATURES
Stop/Tail Indicator or Stop/Tail Indicator & Reverse functions
Sequential Indicator
Grey Glowtech tail light
Integrated Retro Reflector
Multi-volt 10-30V DC input & low current draw
100,000HR rated LED lifespan with solid state technology
Simple surface mount design
ADR approved for all functions
Light weight tough polycarbonate housing & lens
Mild tinted lens and gun metal grey chrome finish
Part Number BR392ARR
Part Number BR392ARR
Description LED Rear Combination Lamp 10-30V Stop/Tail/Ind/Ref Glowtech Tail 390x105x39mm
Input Voltage 10-30 VDC
Number of LEDS Indicator - 24 LEDs
Stop - 40 LEDs
Tail - 54 LEDs
Current Draw @ 13.8V Ind - 0.37A
Stop - 0.27A
Tail - 0.18A @ 13.8V
Lens Construction Polycarbonate
Housing Construction Polycarbonate
Mounting Hole Centres 185-225mm
Overall Dimensions 390 x 105 x 39mm
Cable Length 300mm Tinned Copper
CTA Approval CTA-061826
Wiring Earth - White
Stop - Red
Tail - Brown
Indicator Left - Yellow
Indicator Right - Green
