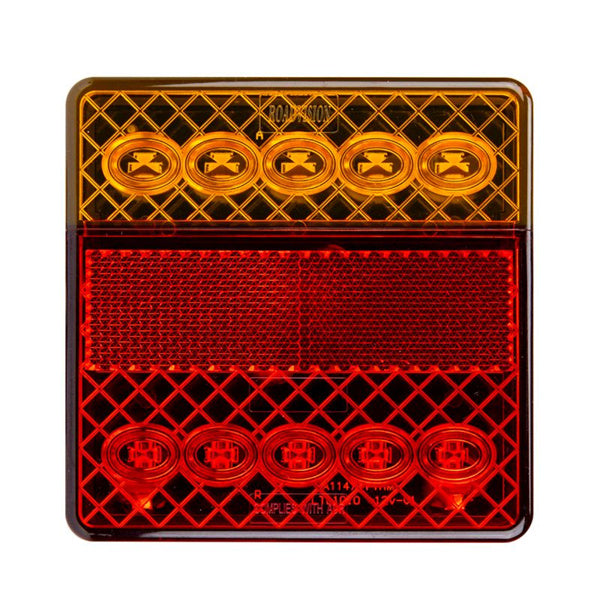

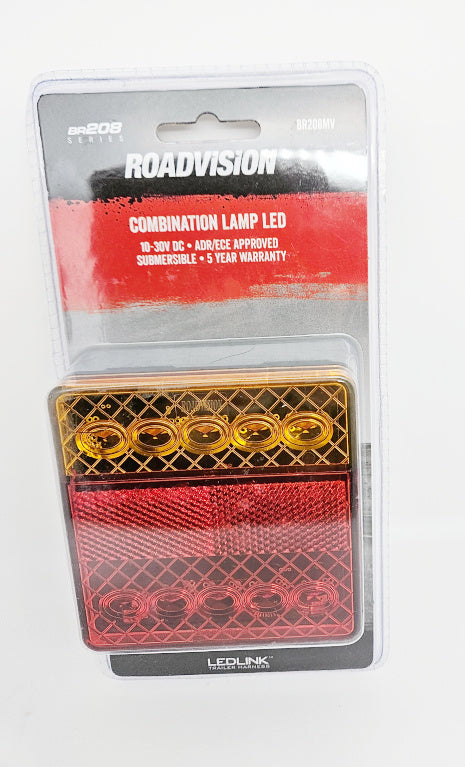

Roadvision LED Rear Combination Lamp 10-30V Stop/Tail/Ind/Ref Surface Mnt 100x100mm
$39.95
Sale price
$39.95
Regular price
Skip to product information
Roadvision LED Rear Combination Lamp 10-30V Stop/Tail/Ind/Ref Surface Mnt 100x100mm
$39.95
Sale price
$39.95
Regular price
SP80BR208MV
Roadvision LED Rear Combination Lamp 10-30V Stop/Tail/Ind/Ref Surface Mnt 100x100mm - 5 Years Warranty
Features:
- Compact LED combination lamp
- 10-30V DC input & low current draw
- 100,000 hour rated LED lifespan with solid state technology
- Water & dust proof (submersible)
- Sealed polycarbonate lens & housing
- Integrated reflector & optional licence plate lamp

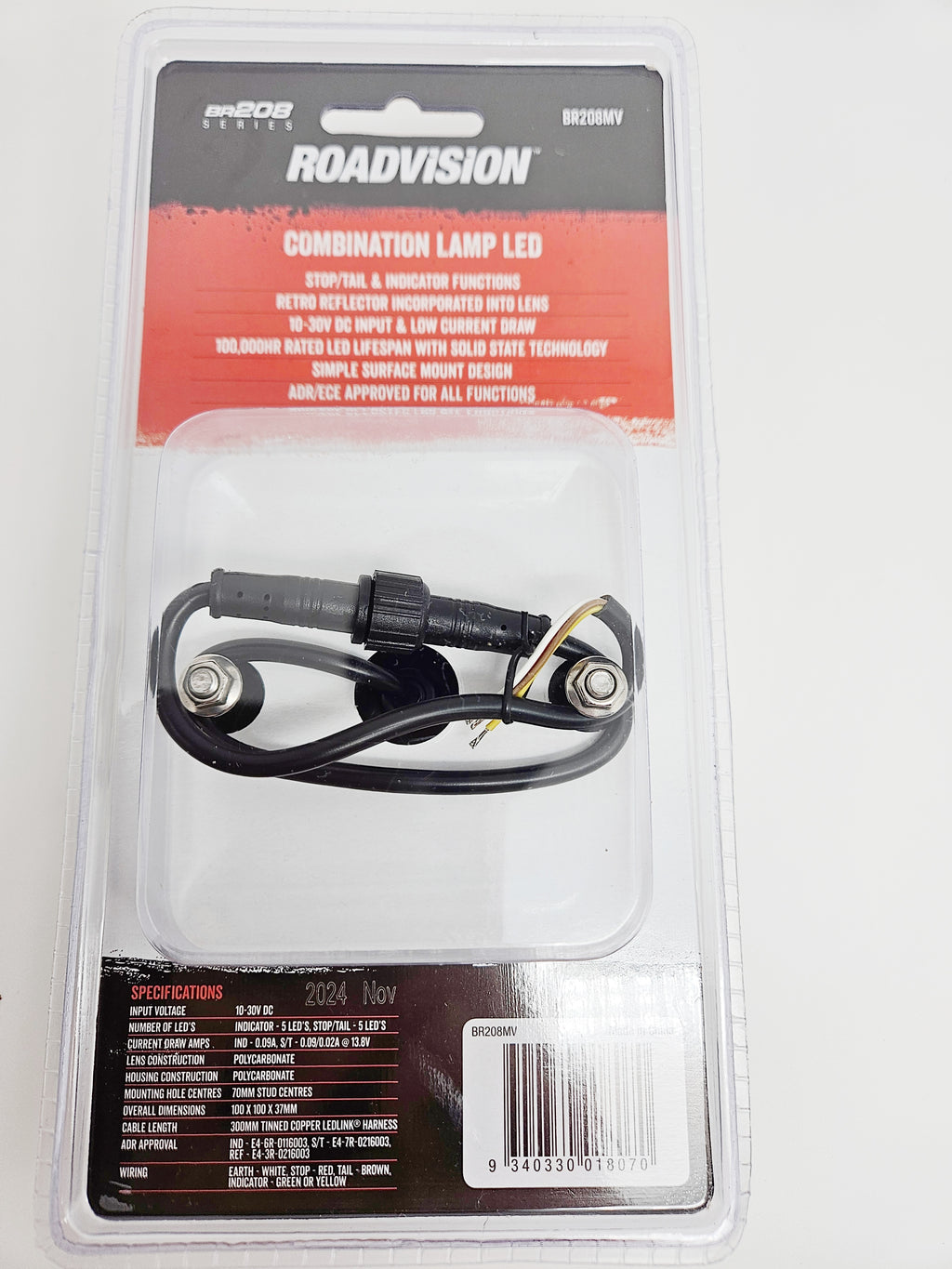

- Pre-wired with 300mm sheathed tinned copper cable
- Easy surface mount stainless steel twin stud installation
- Maintenance free
- ADR/ECE approved for all functions
RANGE SPECIFICATIONS
Part Number: BR208MV
Description: Square Stop/Tail/Ind/Ref
Functions:Stop/Tail & Indicator
Voltage Input: Multi-Volt 10-30V DC
Number of LED's:
Indicator - 5 LED's
Stop/Tail - 5 LED's
Current Draw Amps: Ind - 0.09A @ 13.8V
S/T - 0.09/0.02A @ 13.8V

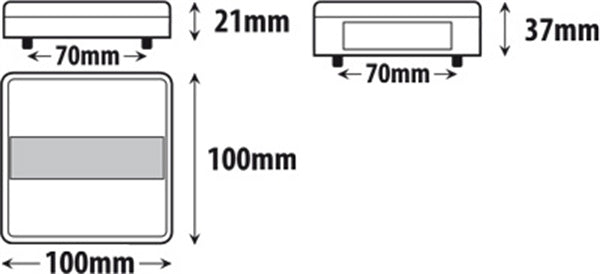

Dimensions AxBxC: 100x100x37mm
Lens Construction Polycarbonate
Housing Construction Polycarbonate
Mounting Hole Centre 70mm Stud Centres
Cable Length 300mm Tinned Copper
Wiring Colour Codes Earth - White
Stop - Red
Rail - Brown
Indicator - Green or Yellow
ADR Approval Ind - E4-6R-0116003
S/T - E4-7R-0216003
Ref - E4-3R-0216003
CTA Approval CTA-060548
