- Compact micro profile 6 function 360° high intensity beacons
- Single, double, quad, rotating and OCTA flash patterns
- Multi-volt 10-30V input & low current draw
- 100,000 hour rated LED lifespan
- Maintenance free solid state technology
- Tough polycarbonate lens & aluminium body
- Waterproof IP67 rated and vibration proof
-
Compact micro profile 102 x 58mm body
Surface mount - EMC CISPR25 Class 3 & SAE Class 2 Approved

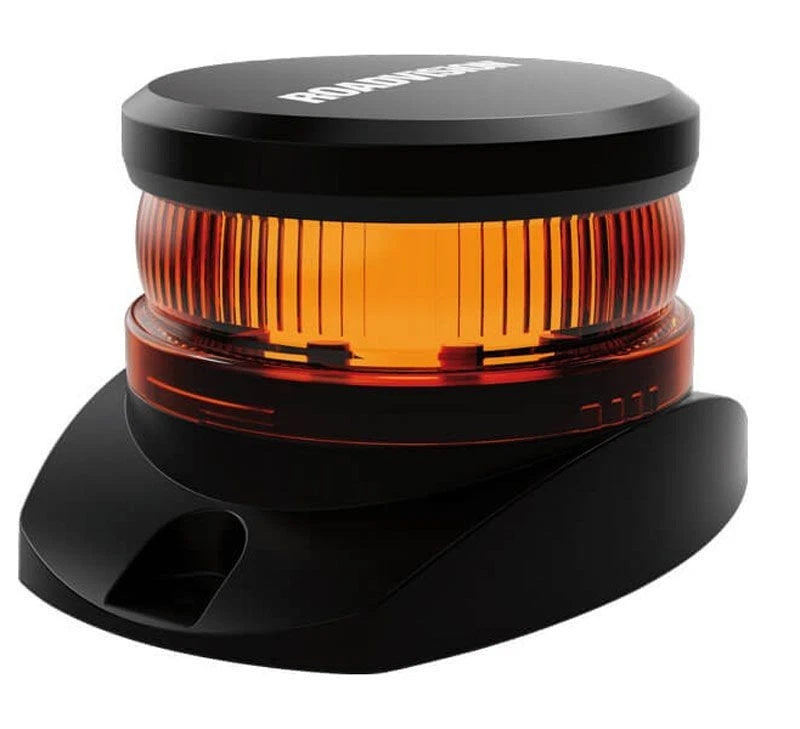

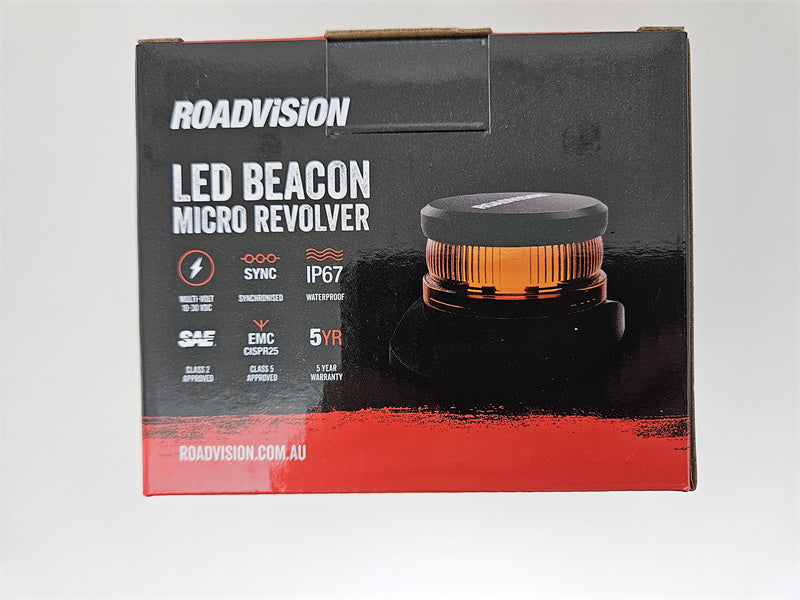

Roadvision LED Beacon Micro Revolver 10-30V Amber Fixed Mount 6 Function SAE
$65.95
Sale price
$65.95
Regular price
Skip to product information
Roadvision LED Beacon Micro Revolver 10-30V Amber Fixed Mount 6 Function SAE
$65.95
Sale price
$65.95
Regular price
SP80RB102Y
Roadvision LED Beacon Micro Revolver 10-30V Amber Fixed Mount 6 Function SAE Class 2 - 5 Years Warranty
RANGE FEATURES
FLASH PATTERNS
Rotation (ECE R65)
Single Flash
Double Flash (SAE Class 2)
Quad Flash
OCTA Flash
Steady On
Specifications:
Part Number RB102Y
Description Micro Revolver Beacon LED 10-30V 6 Flash Patterns Surface Mount
Function 6 Selectable Flash Patterns
Number of LEDs 8 x 5W
Maximum Watts 40W
Input Voltage 10-30V
Current Draw Amps 0.5A @ 13.8V
Synchronisation Yes

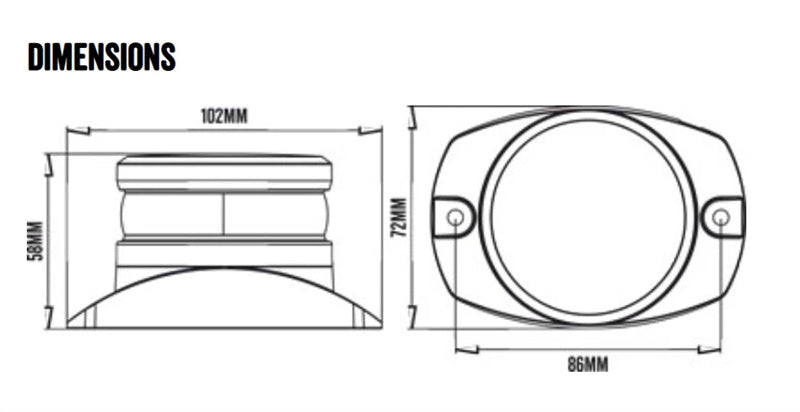

Dimensions 102x72x58mm
Mounting Centres 86mm
IP Rating IP67

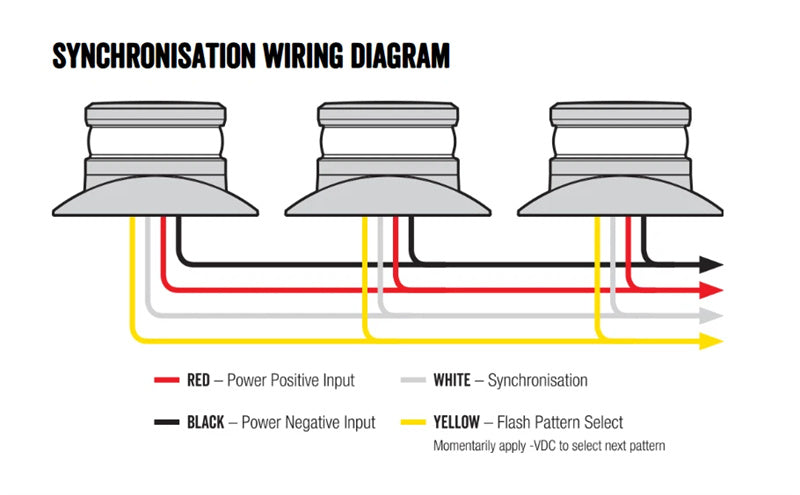

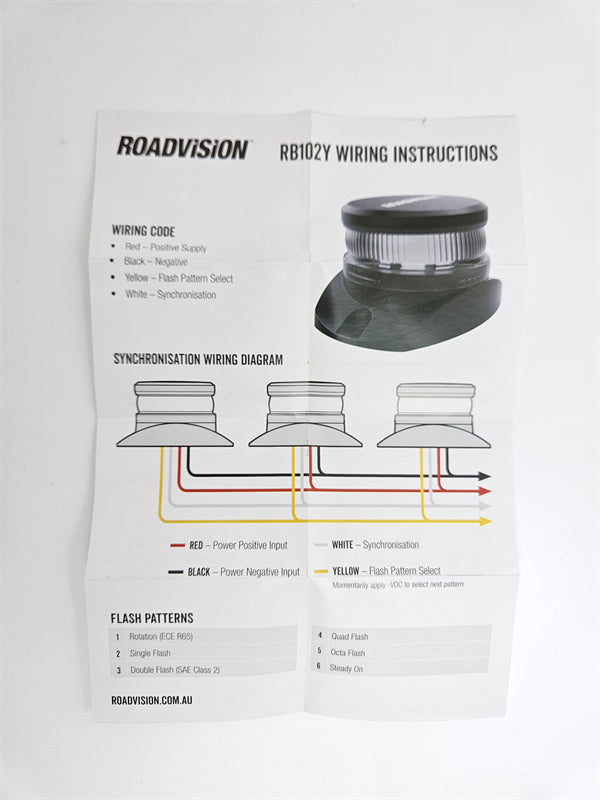

Wiring Red - Positive
Black - Negative
Yellow - Pattern Select
White - Synchronisation
Approvals EMC CISPR25 Class 3
SAE Class 2
