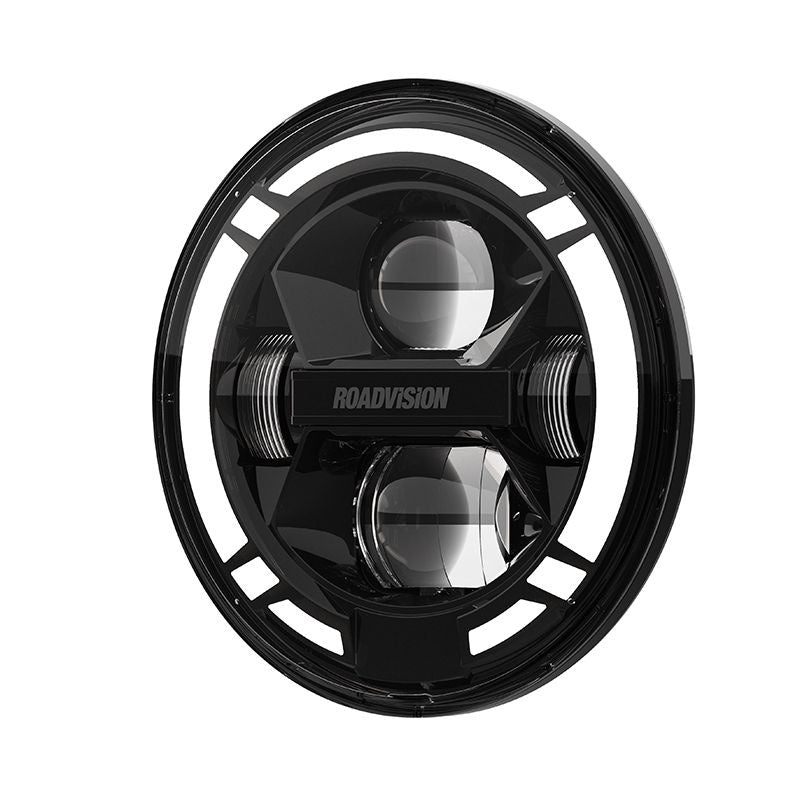

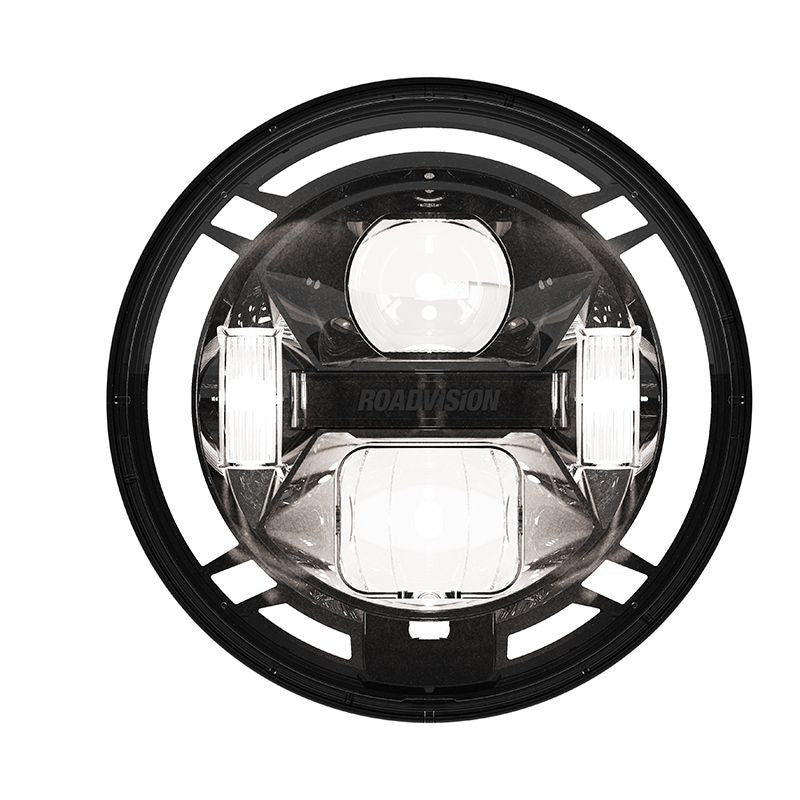

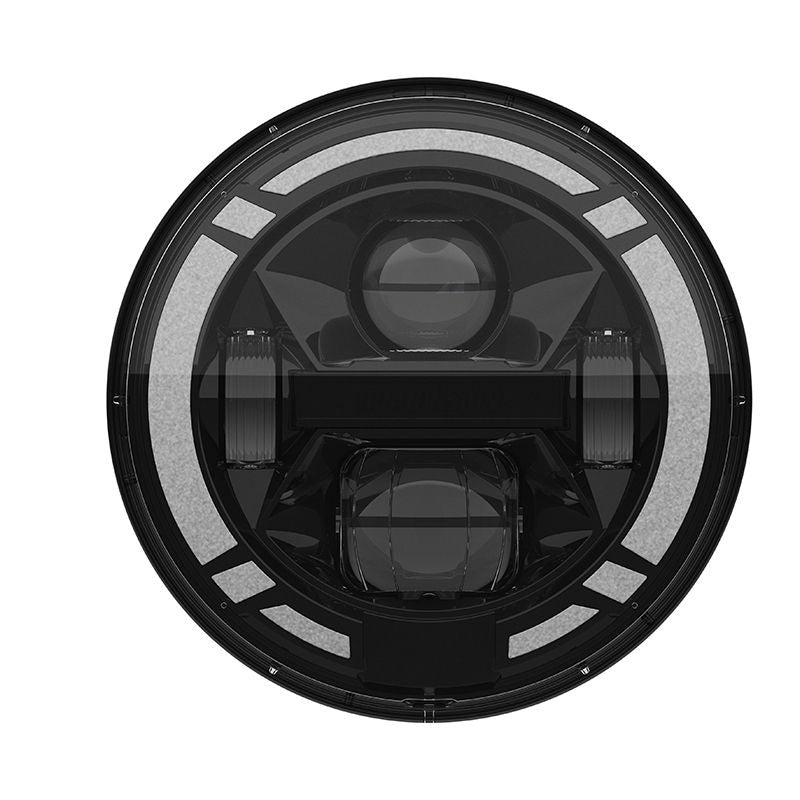

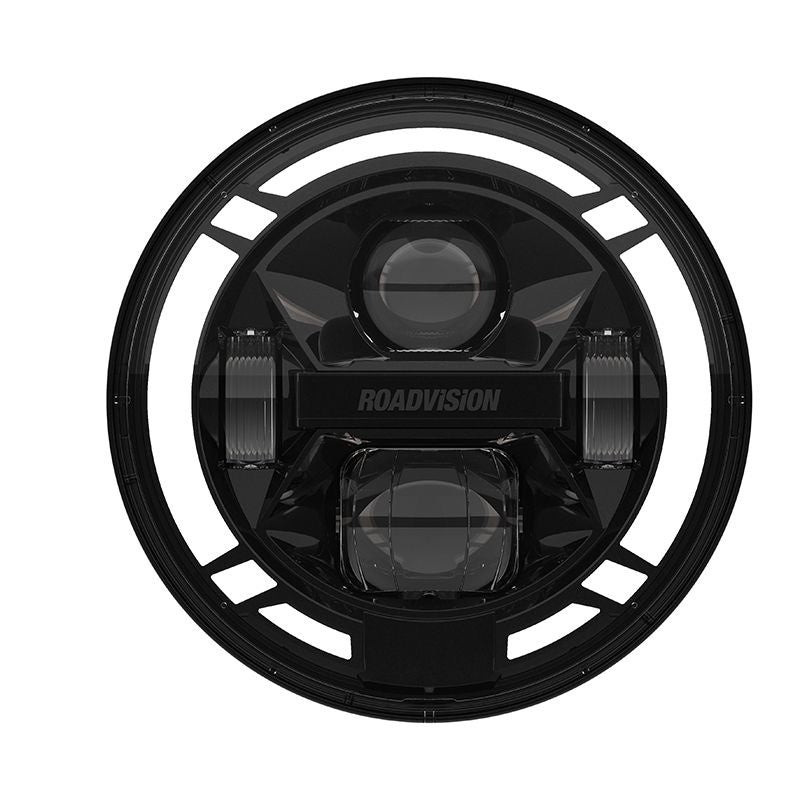

Roadvision 7" LED Headlamp 10-30V High Beam Front Position IP69K ADR/CTA-062225

Roadvision 7" LED Headlamp 10-30V High Beam & Front Position IP69K ADR/CTA-062225 - 3 years Warranty

Upgrade your vision with our new 7” LED Headlight Inserts – engineered for modern performance and built to outlast your vehicle. A sleek black housing and crisp 5700K white output deliver a bold, contemporary look on the road, while solid‑state LED technology provides an incredible 100,000‑hour lifespan with virtually zero maintenance. Designed to replace standard 7” units, these inserts combine lightweight die‑cast aluminium construction, an unbreakable polycarbonate lens, and IP69K protection for maximum durability in any environment. With multi‑volt compatibility, ADR/ECE approval, and pre‑wired H4 connectivity, installation is simple and reliable. Available in both High/Low Beam and dedicated High Beam versions, delivering powerful performance of
1 Lux at 252m on high beam and 1 Lux at 100m on low beam. Stronger. Brighter. Smarter. Built for the long haul.

Price is for each

RANGE FEATURES

Replaces existing 7” headlight units
Sleek modern black design with Integrated Park Light
5700K crisp white light output
100,000‑hour LED lifespan with solid‑state technology
Super low power consumption
Lightweight die‑cast aluminium housing
Unbreakable polycarbonate lens
IP69K ingress protection
ADR/ECE approved
Multi‑volt compatible
Available in High/Low Beam and dedicated High Beam versions
Pre‑wired H4 plug

Specifications:
Part No: RHL07HB
Description    7” LED Headlamp Insert High Beam
Functions    High Beam, Parking
Maximum Lumens    High Beam 1800lm
Input Voltage    10-30VDC
Maximum Watts    High Beam 21W, Park 4W
Number of LED’s    High Beam 4 LED’S, Park 33 LED’S
Current Draw @ 13.8V    High Beam 1.6A, Park 0.3A

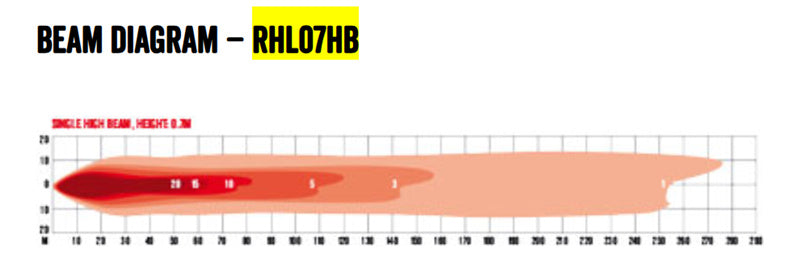

Metres @ 1 Lux    High Beam 252m
Lens Construction    Polycarbonate
Housing Construction    Aluminium
Colour Temperature    5700k
IP Rating     IP67, IP69K

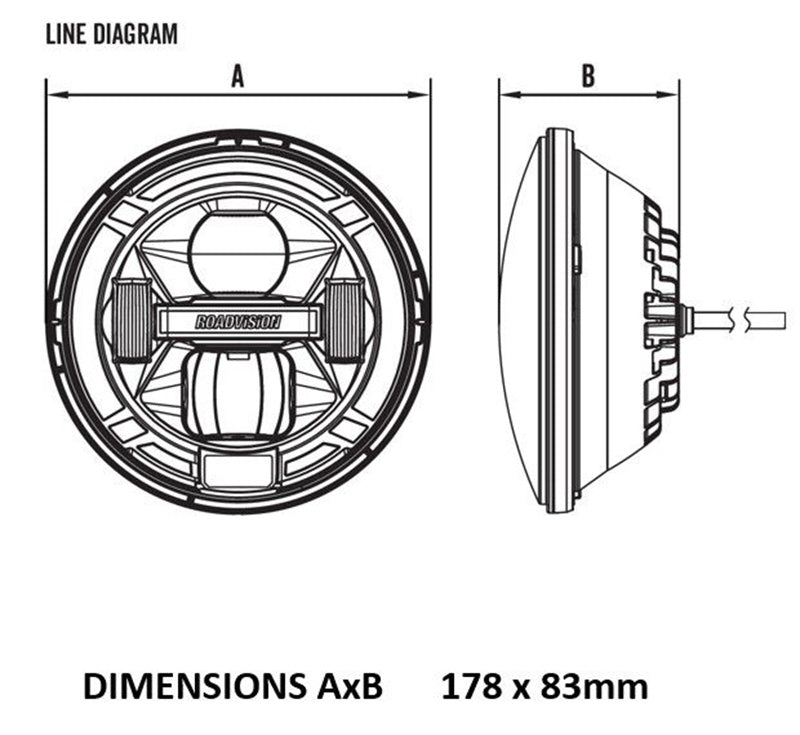

Dimensions - A x B    178 x 83mm
Approvals    ADR Approved
CTA-062225    Wiring    500mm sheath cable with H4 connector
