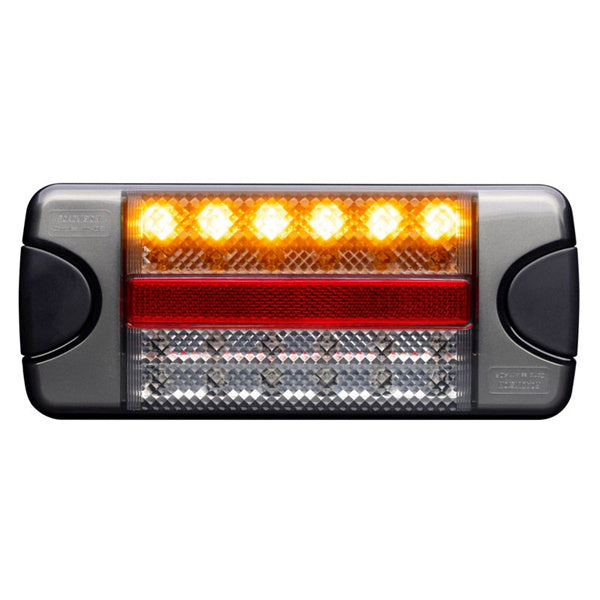

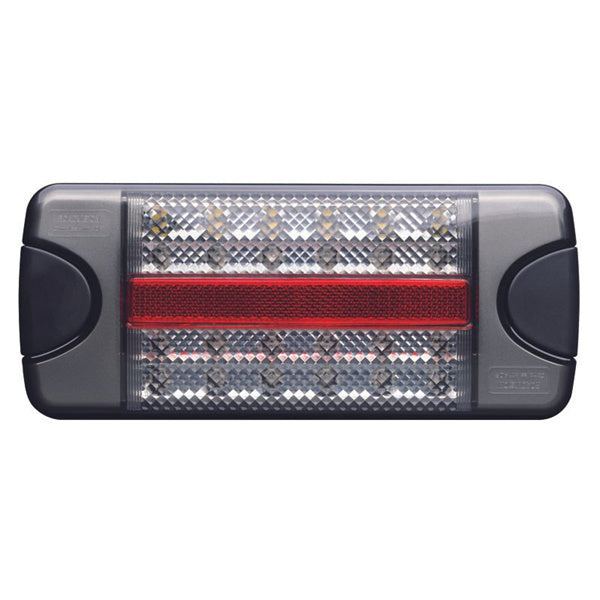

LED Rear Combination Lamp 10-30V Stop/Tail/Ind/Ref Surface Mount 218x92mm

 Roadvision LED Rear Combination Lamp 10-30V Stop/Tail/Ind/Ref Surface Mount 218x92mm - 5 Years Warranty

FEATURES
Stop/Tail, Indicator, Reverse functions
Reflector incorporated into lens
Smoked lens
Multi-volt 10-30V DC input & low current draw
100,000HR LED lifespan with solid state technology
Simple surface mount design
ADR approved for all functions
Light weight tough ABS housing & polycarbonate lens

Description LED Combination Light 10-30V Stop/Tail, Indicator

Input Voltage 10-30 VDC

Number of LED’s 24 LEDs:

Indicator - 6 LEDs

Stop/Tail - 12 LEDs

Reverse - 6 LEDs

Current Draw Amps Ind - 0.23A

S/T - 0.1/0.02A

Rev - 0.16A @ 13.8V

Lens Construction Polycarbonate

Housing Construction High Impact ABS

Mounting Hole Centres 193mm

Dimensions AxBxC 218 x 92 x 25mm

Cable Length 500mm Tinned Copper

Wiring Earth - White

Stop - Red

Tail - Brown

Indicator - Yellow

Reverse - Black Earth - White

ADR Approval All functions ADR approved All functions ADR approved

CTA Approval CTA-060961
