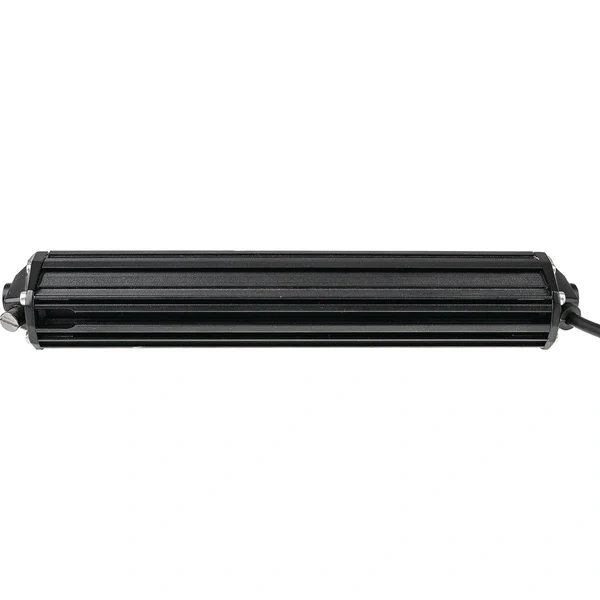

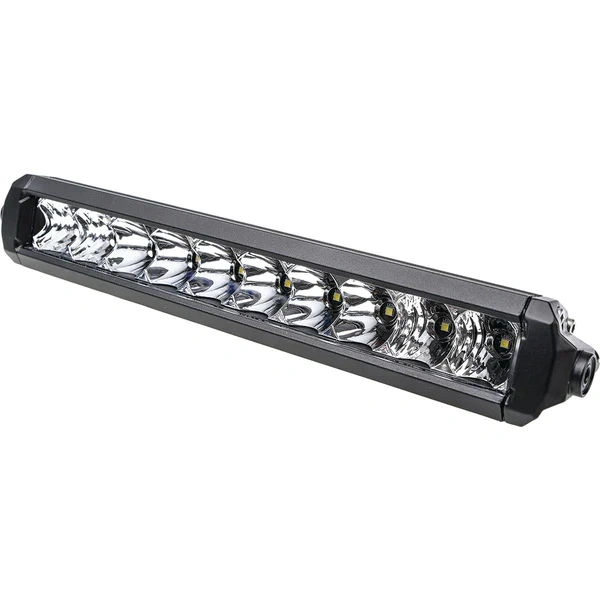

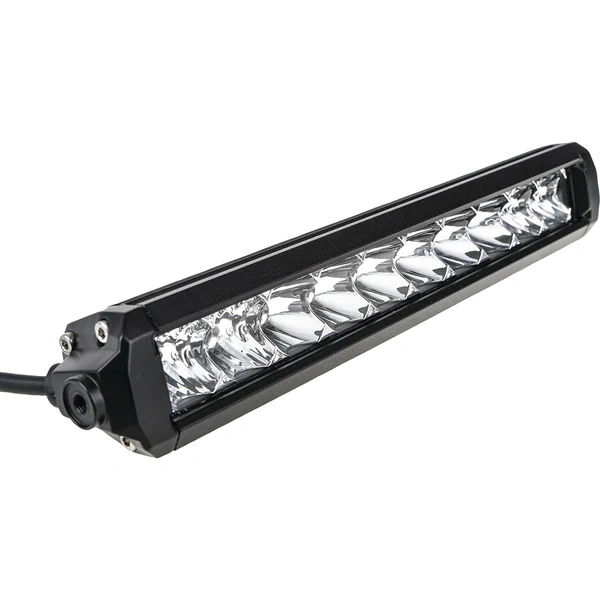

Drivetech 4X4 12 Inch 10 LED Single Row Driving Light Bar 9-36V
Specification:
Length 304mm
Watts 50
Voltage 9-36
Note EMC compliant with EN IEC 55015 and EN 61547
Width 48.7mm
Height 46mm
Beam Pattern Combination
Pack Size 1
Shape Rectangle
Size 304 x 46 x 48.7mmmm
Lens Material Polycarbonate
Light Output 4760 raw Lumens, 2682 effective Lumens
Current 3.1A @ 13.2V
LEDs 10
Body Material Aluminium

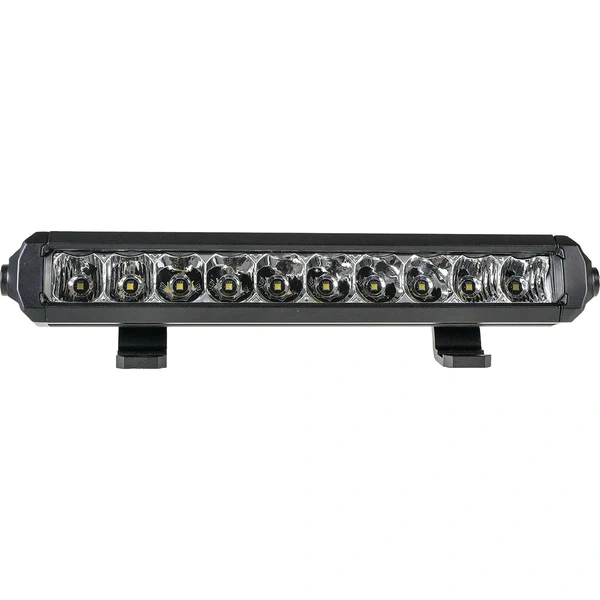

Mount Sliding bracket

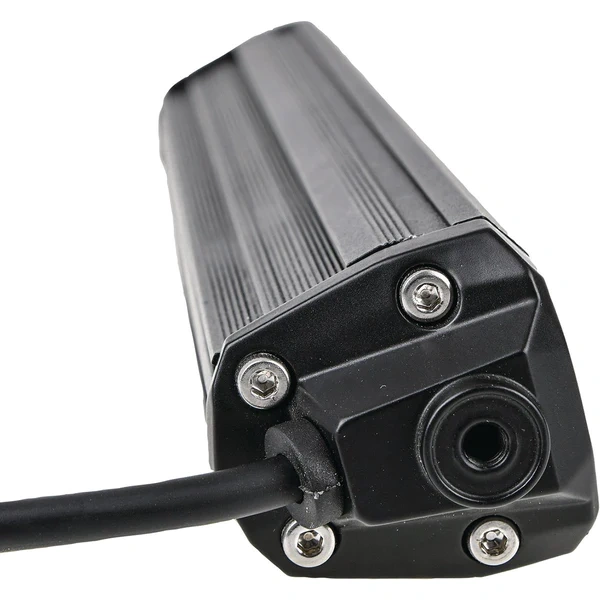

Connector DT plug
Environmental IP68, IP69K
Temp Range -40° to 145°
Weight 0.60kg
Features
• Multivoltage 9-36V, compatible with 12V & 24V systems
• Combination beam pattern technology for ideal light spread & distance
• Light output: 4,760 Raw Lumens, 2,682 Effective Lumens, 1 Lux at 383m
• IP68/IP69K rated: fully waterproof and dust tight, able to withstand high-pressure washing
• Robust die-cast aluminium housing and polycarbonate lens
• 304L x 46H x 48.7D (mm)
• 2 Year Warranty
