Battery Master Switch 75910 DPST Isolation Switch On/Off Cole Hersee

Battery Master Switch 75910 DPST Isolation Switch On/Off Cole Hersee

Specifications:

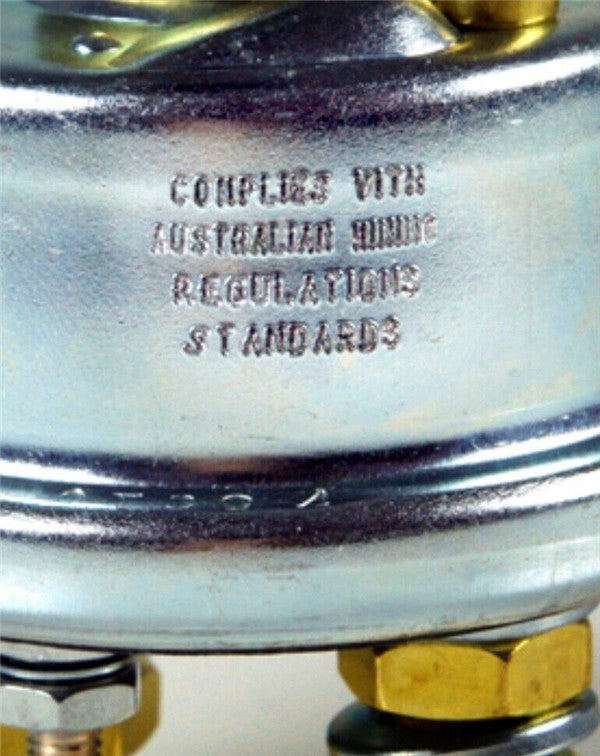

The genuine Cole Hersee 75910BX switch is stamped with
‘Complies With Australian Mining Regulations Standards’
disconnects the battery and the alternator or generator field

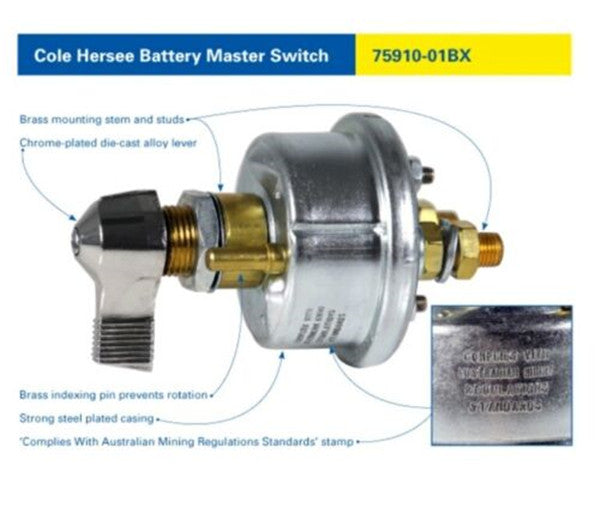

DPST, Silver contacts, Strong steel plated casing
Chrome-plated die-cast alloy lever
Brass mounting stem, studs and indexing pin
O-ring sealed for weather resistance
Indexing pin aligns switch and prevents rotation

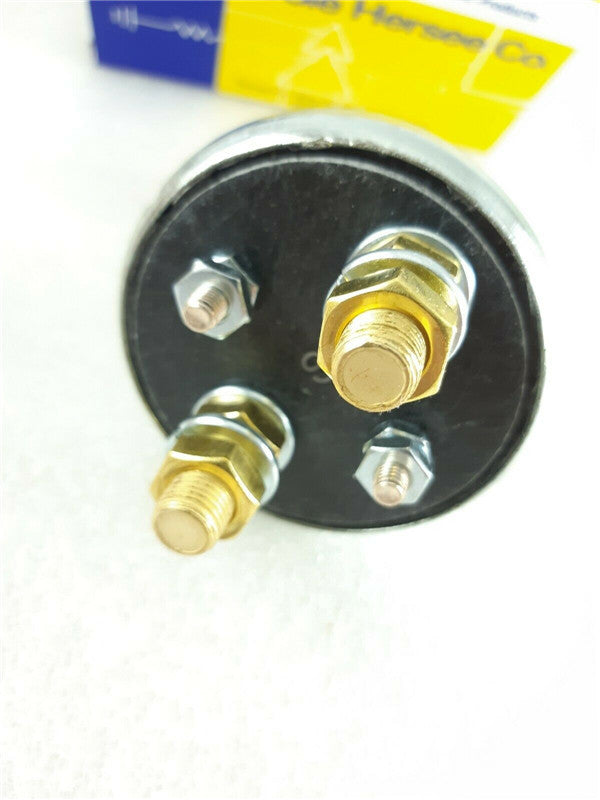

2 x Field stud 10-32, 2 x Battery stud 3/8”-24
Mounting stem 3/4”-24 thread, L 13mm
Suits panel thickness to 6.5mm
Operating temperature range: -40C to +85C

Voltage: 6V-36V Multivoltage
Amperage:800A Intermittent for 15 sec on, 5 min off, 125A Continuous, Small: 20A Continuous

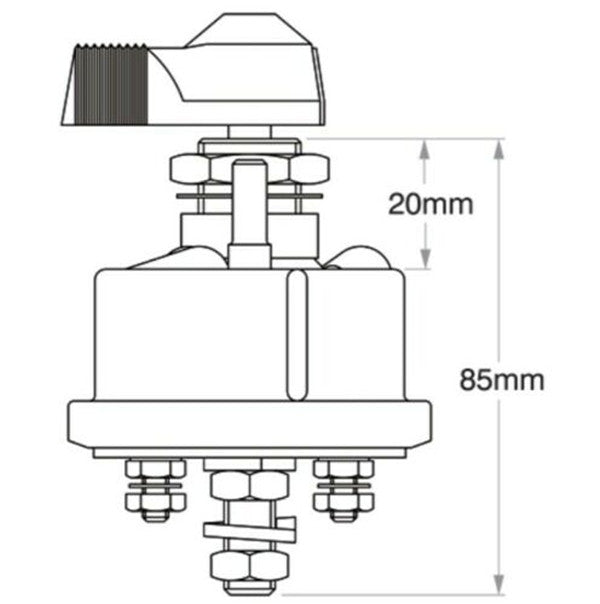

Dimensions: H 110 x D 67
Configuration
DPST
Modes
On/Off
Application:
Heavy Duty, Mining
Brand :Cole Hersee
Australia’s most reliable Battery Master Switch was developed by Cole Hersee in conjunction with BAE and mining giant BHP Billiton, to service a specific requirement.
The Cole Hersee 75910 is now spec’d in for all vehicles entering a BHP Billiton mine site.
